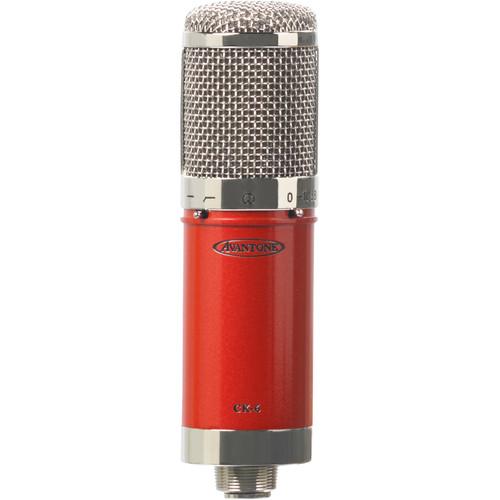

User Manual for Avantone Pro CK-6 Classic Large-Capsule Cardioid FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CK-6 Classic Large-Capsule Cardioid
- Product category: Large Diaphragm Condenser Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Large Diaphragm Condenser
|
User manual for the Avantone Pro CK-6 Classic Large-Capsule Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|
Product description The Avantone Pro CK-6 Classic is a large-diaphragm, condenser microphone with a cardioid polar pattern, well suited for capturing vocals and various acoustic instruments in a professional or home studio environment. The mic features a 32mm gold-sputtered mylar capsule, transformerless FET circuitry, and high-grade capacitors fashioned out of polystyrene and metalized polypropylene. These components are representative of the grade modders often use to upgrade their existing mics. In this microphone, these parts come stock.The microphone's switchable, -10 dB pad allows you to close-mic high-SPL sources without overloading the circuitry. A switchable 80 Hz low-cut filter helps reduce problematic rumble and booming low frequencies.The mic's metallic, cabernet-red body finish, accented with polished nickel trim, supplies an overall retro look and feel. Complementing the look is the included retro-style shockmount. The CK-6 Classic also includes a carrying pouch. - Key Features at a Glance
-
- 32mm capsule with a cardioid polar pattern
- Transformerless FET circuitry
- High-grade polystyrene and metalized polypropylene capacitors in the audio path
- Metallic, cabernet-red body finish, accented with polished nickel trim
- -10 dB attenuation pad can be switched when close-miking high SPL sources
- 80 Hz roll-off switch to reduce rumble and low frequencies
- Custom retro shockmount protects microphone from unwanted vibrations
- Includes carrying pouch
UPC: 713541493360 In the Box Avantone Pro CK-6 Classic Large-Capsule Cardioid FET Condenser Microphone Custom Retro Shockmount Carrying Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CK-6 Classic Large-Capsule Cardioid FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CK-6 Classi Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Polar Pattern | Cardioid | | Frequency Range | 35 Hz to 20 kHz | | Equivalent Noise Level | 17 dB | | Maximum SPL | 136 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 5 mA | | Operating Voltage | 48 V | | Length | 6.10" / 155 mm | | Diameter | 1.81" / 46 mm | | Weight | 0.89 lb / 0.40 kg |
