User Manual for Avantone Pro CK-7 Large Capsule Multi-Pattern FET Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CK-7 Large Capsule Multi-Pattern
- Product category: Large Diaphragm Condenser Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Large Diaphragm Condenser
|
User manual for the Avantone Pro CK-7 Large Capsule Multi-Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

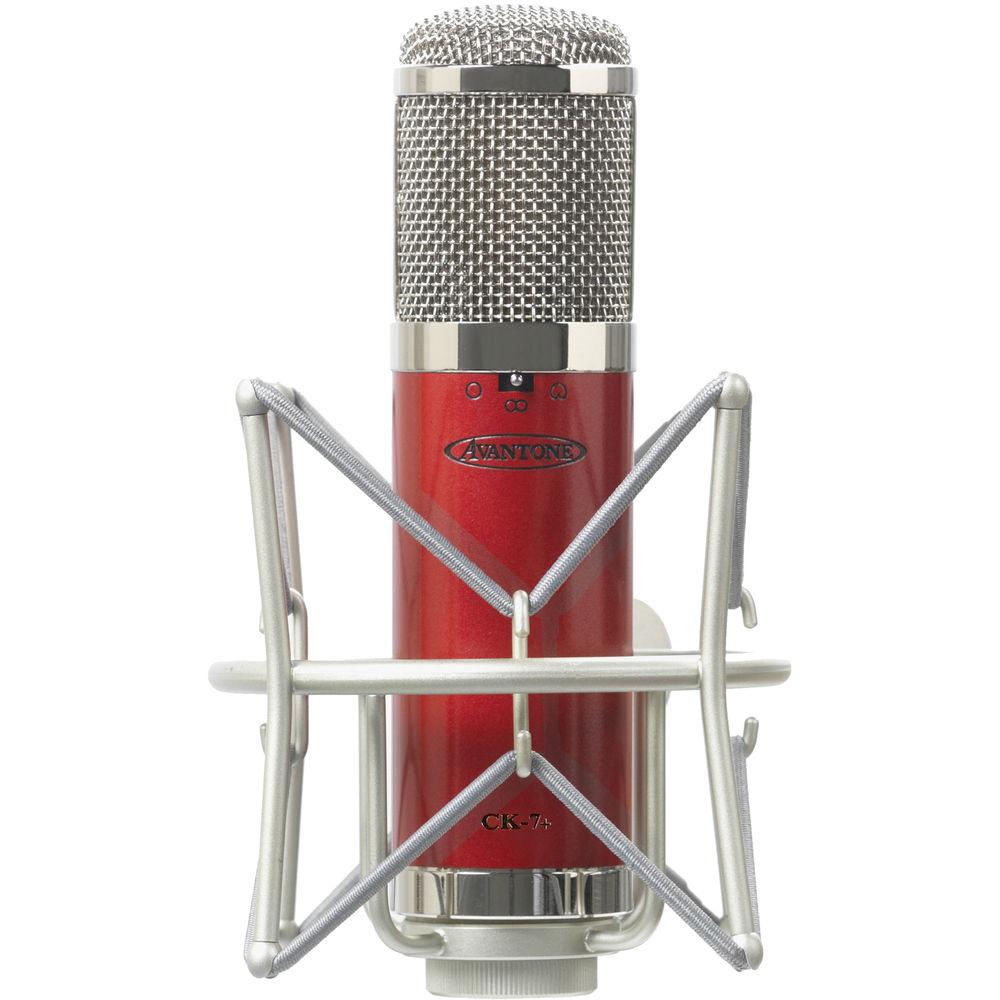

Product description The Avantone Pro CK-7+ is a large-diaphragm, condenser microphone with a polar pattern that is switchable between cardioid, ominidirectional, and figure-8 settings. This versatile mic is well suited for capturing vocals, acoustic string instruments, drum overheads, piano, and more, using an assortment of miking techniques, in professional or home studio environments. The microphone features a 34mm / 6μm diaphragm, transformerless FET circuitry, and high-grade capacitors, allowing it to deliver an airy, open top end with a solid low end.The CK-7+'s body is milled from a single piece of solid brass, which in combination with the included, custom shock mount, helps to prevent unwanted vibrations from reaching the capsule. A metallic, cabernet-red body finish accented with polished nickel trim gives the mic a retro look and feel.The switchable, -10 dB pad allows you to close-mic high SPL sources without overloading the circuitry, and a switchable 80 Hz, low-frequency roll-off helps reduce problematic rumble and booming low frequencies.The CK-7+ ships with a padded, wooden mic box and a padded aluminum storage/travel case. - Key Features
-
- Proprietary, single backplate, 34mm / 6μm capsule
- Three, switchable polar patterns: Cardioid, omnidirectional, figure-8
- Transformerless FET circuitry
- High-grade polystyrene and metalized polypropylene capacitors in the audio path
- Body milled from a single piece of solid brass
- Metallic, cabernet-red body finish, accented with polished nickel trim
- -10 dB attenuation pad can be switched when close-miking high SPL sources
- Switch 80 Hz roll-off to reduce rumble and low frequencies
- Custom retro shock mount protects microphone from unwanted vibrations
- Includes padded, wooden mic box and padded aluminum storage/travel case

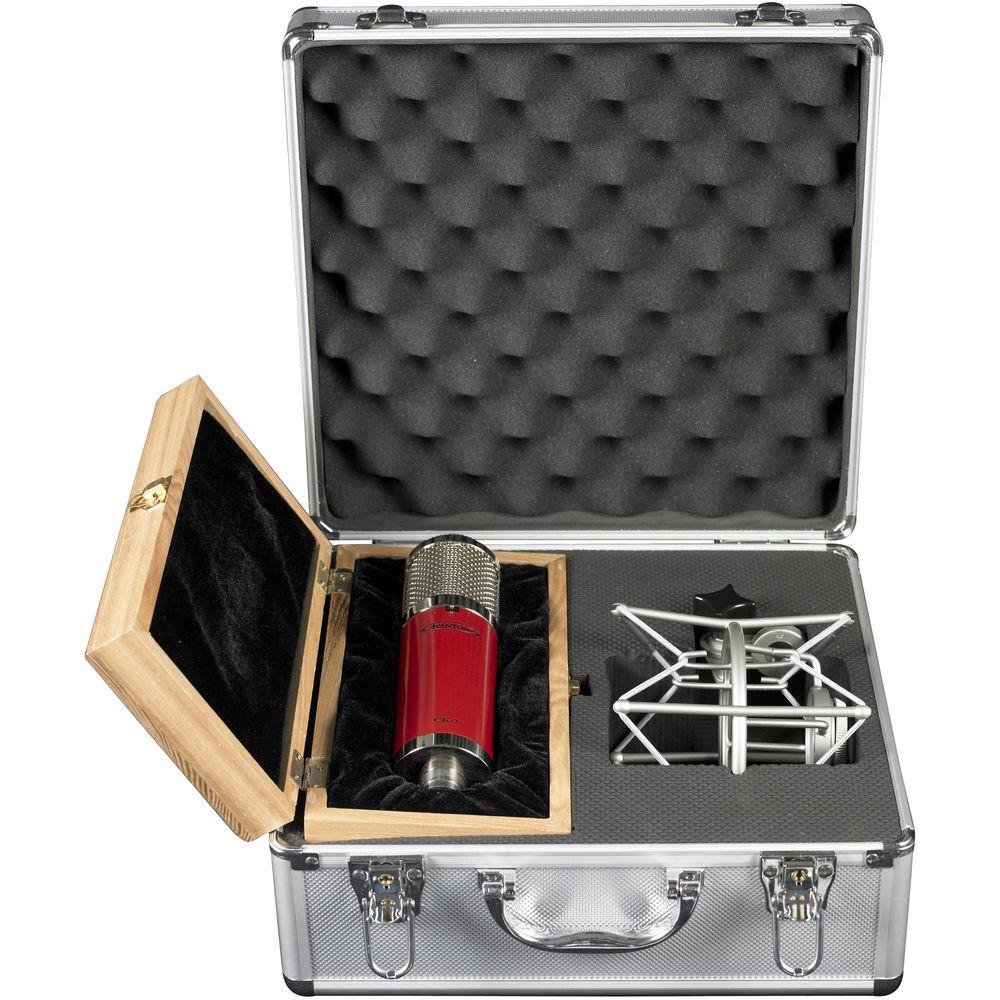

UPC: 713541493247 In the Box Avantone Pro CK-7+ Large Capsule Multi-Pattern FET Condenser Microphone Custom Retro Shock Mount Padded Wooden Mic Box Padded Aluminum Storage / Travel Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CK-7 Large Capsule Multi-Pattern FET Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CK-7+ Specs | Sound Field | Mono | Transducer | Condenser | Diaphragm | 1.34" / 34 mm | Polar Pattern | Cardioid, Figure-8, Omnidirectional | Pattern Selection | Switched | Frequency Range | 20 Hz to 20 kHz | Signal to Noise Ratio | 77 dB | Equivalent Noise Level | 16 dB A-Weighted | Maximum SPL | 139 dB SPL | Pad | -10 dB | THD | 0.5% | Impedance | 250 Ohms | Sensitivity | -38 dB | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | Output Connectors | 1 x 3-Pin XLR | Operating Current Consumption | 5 mA | Operating Voltage | 48 V | Length | 7.36" / 187 mm | Diameter | 2.01" / 51 mm | Weight | 1.4 lb / 635 g | | Package Weight | 6.7 lb | Box Dimensions (LxWxH) | 12.5 x 12.0 x 6.0" |
