User Manual for Avantone Pro CLA-10 Chris Lord Alge Passive Studio Monitors Click to enlarge the picture
Contents of the user manual for the Avantone Pro CLA-10 Chris Lord Alge
- Product category: Studio Monitors Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Studio Monitors
 |
User manual for the Avantone Pro CLA-10 Chris Lord Alge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

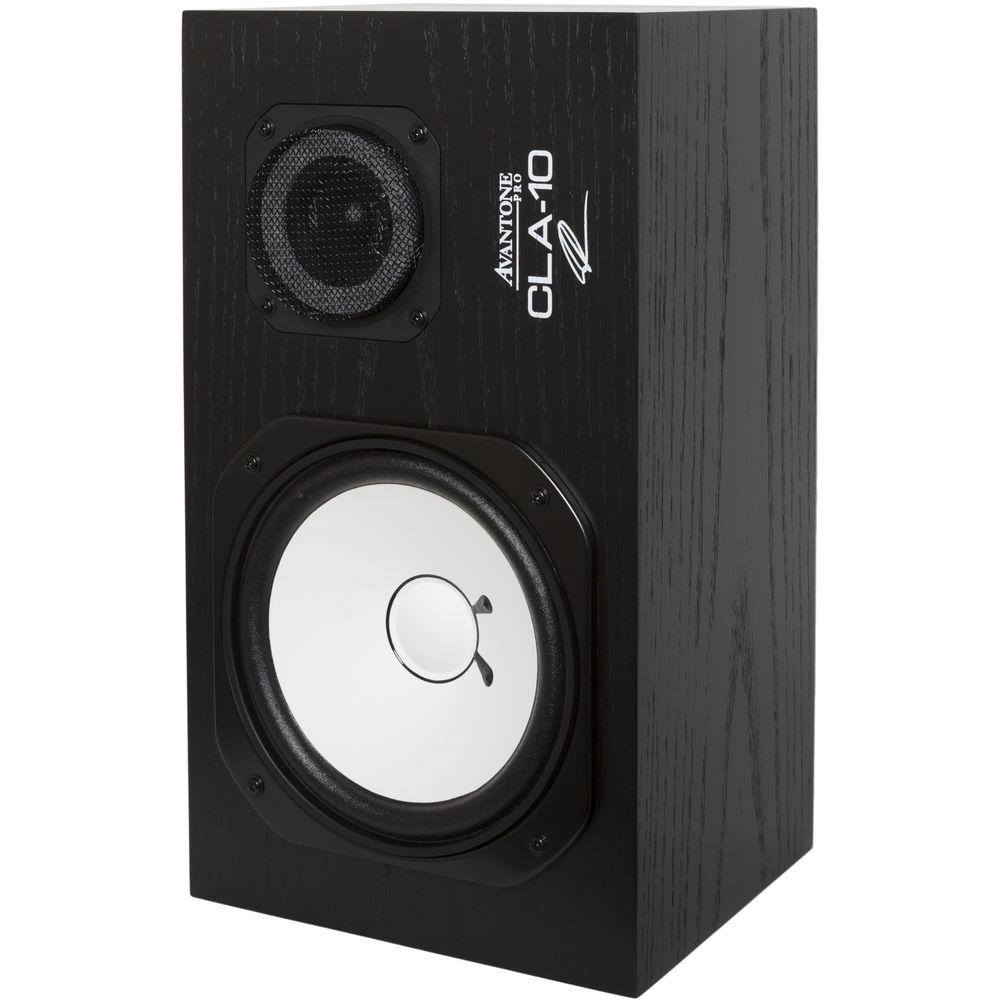

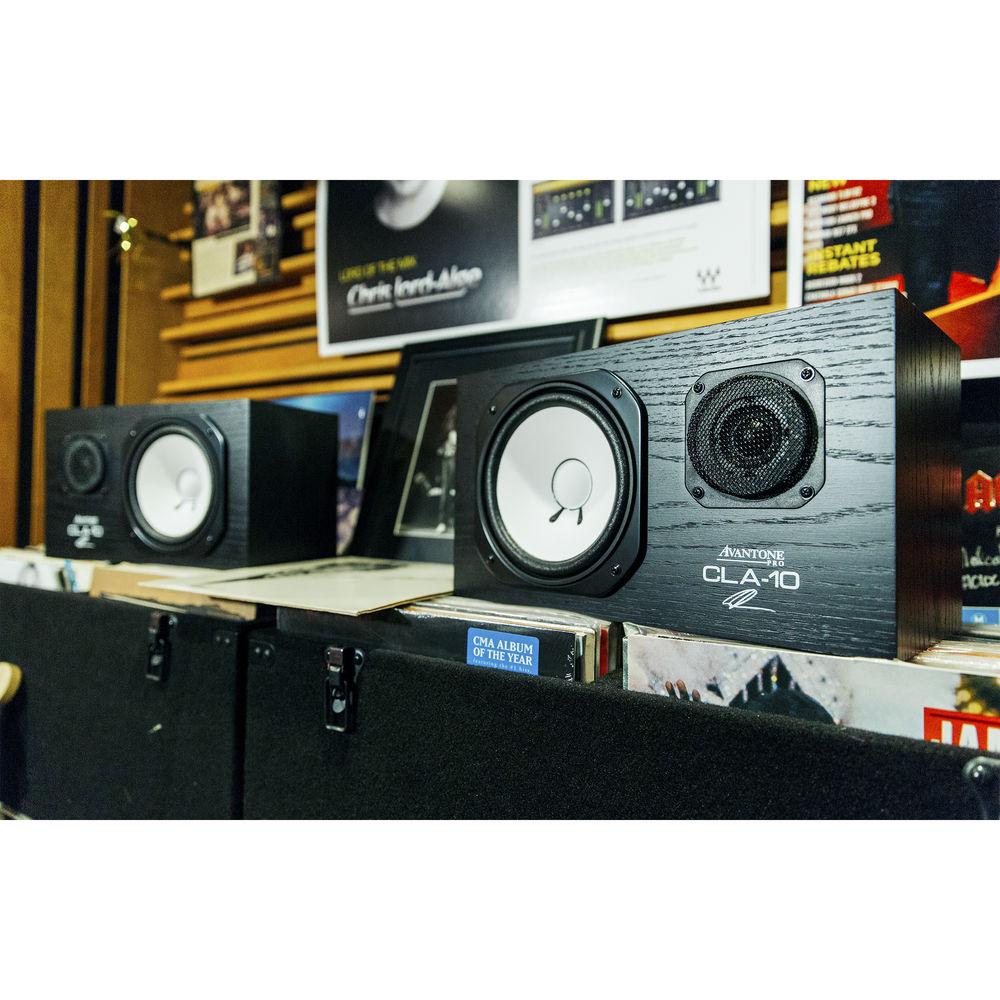

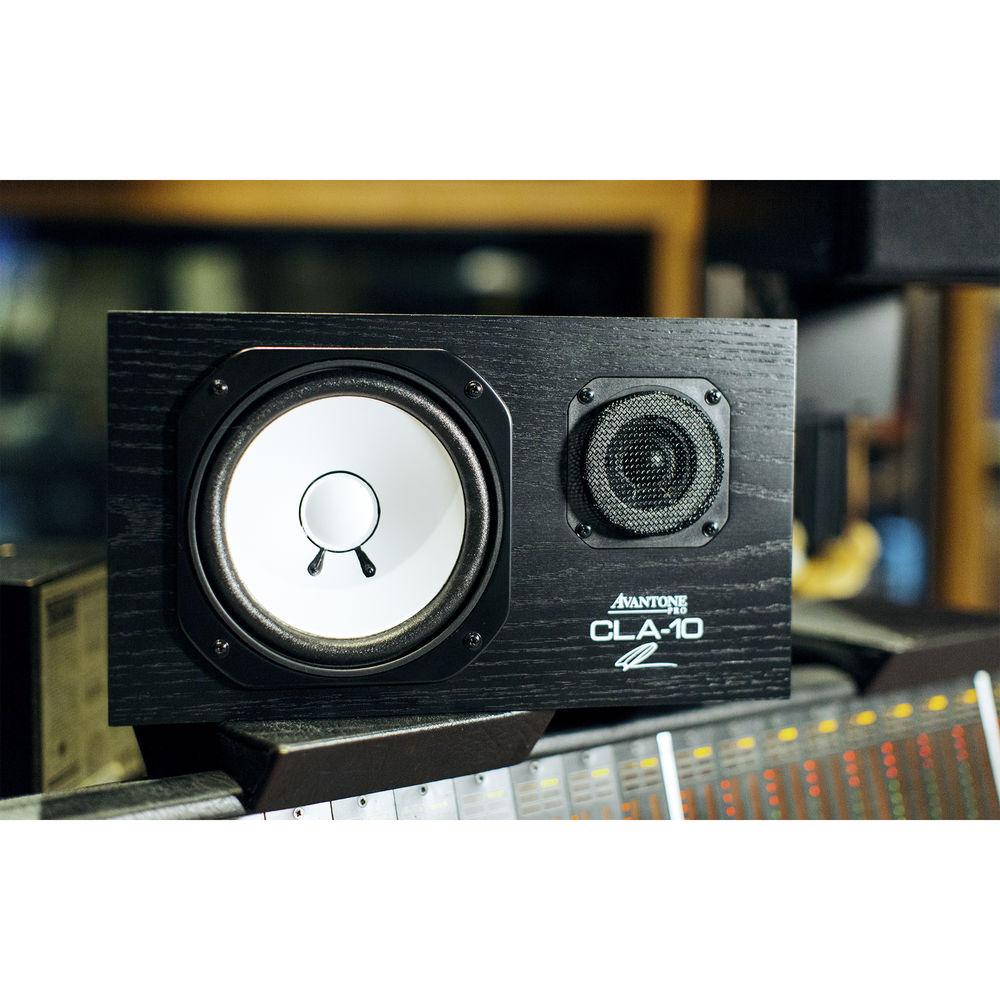

Product description Crafted in conjunction with mixing legend Chris Lord Alge, the Avantone CLA-10 comprises a pair of passive studio monitors that faithfully reproduce an iconic pair of speakers from the last 30 years. The inspiration for these speakers have been found in the rooms of many top professionals, and are desired not necessarily for their pleasurable sonics, but their accuracy in translation: Make a mix sound good on them, and it will sound good everywhere.
The original was long ago discontinued, but Avantone have paired up with Chris Lord Alge—an avid user of the original—to make sure the CLA-10s provide the same feel and frequency response. The AV10 MHF tweeter and woofer match the original unit's components in timbre, with the tweeter utilizing an exact phenolic-resin-doping design to secure the same performance curve.

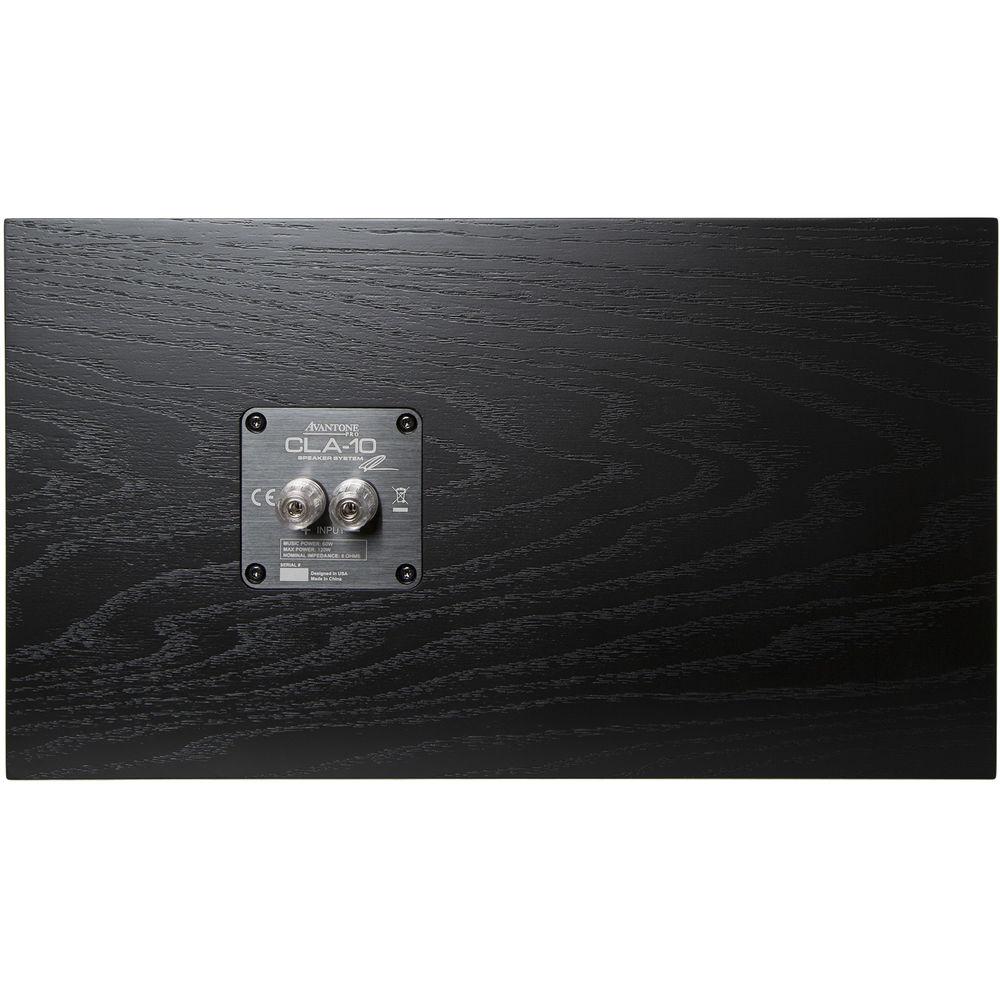

There are some differences in the construction, however: For one, the rear terminal plate has been updated with high-grade connectors; For another, the woofer's cone has been pressed instead of lapped to ensure more control over stiffness and weight. Still, in testing, the tonal response of the CLA-10 matches the original, giving you the same frequency response of 60 Hz to 20 kHz, the same average power of 60W, and the same sensitivity of 90 dB. These are passive studio monitors and will require a separate amplifier for reproducing sound. UPC: 713541493384 In the Box Avantone Pro CLA-10 Chris Lord Alge Passive Studio Monitors (Pair) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CLA-10 Chris Lord Alge Passive Studio Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CLA-10 Specs | System Type | Passive, two-way stereo pair | | Frequency Response | 60 Hz to 20 kHz (accessible musical range) | | Power Capacity | Program: 60 W
Maximum: 120 W | | Sensitivity | 90 dB SPL (1 W, 1 m on axis) | | Components | Low Frequency: AV10-MLF, 7.1" / 18.0 cm cone
High Frequency: AV10-MHF, 1.4" / 3.5 cm soft dome | | Cabinet | 2.7 gal / 10.4 L sealed design
0.7" / 1.8 mm MDF with wood veneer | | Dimensions | 15.0 x 8.5 x 7.8" / 38.2 x 21.5 x 19.8 cm (each) | | Weight | 13.9 lb / 6.3 kg (each) | | | | Package Weight | 30.8 lb | | Box Dimensions (LxWxH) | 23.1 x 19.3 x 13.1" |
