User Manual for Avantone Pro CV-12 Multipattern Large Capsule Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CV-12 Multipattern Large Capsule
- Product category: Tube Microphones Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Tube Microphones
 |
User manual for the Avantone Pro CV-12 Multipattern Large Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|
Product description - Mic Roundup Part 2: Affordable Tube Condenser Mics

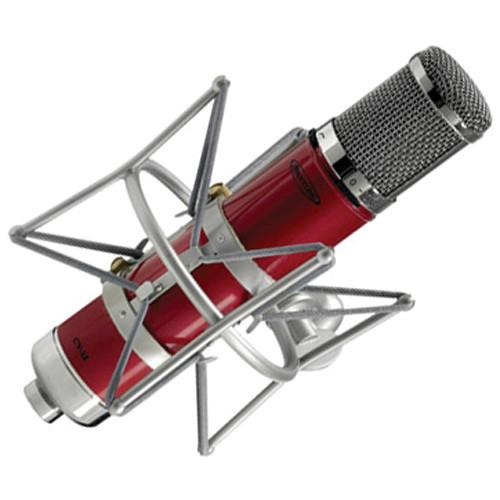

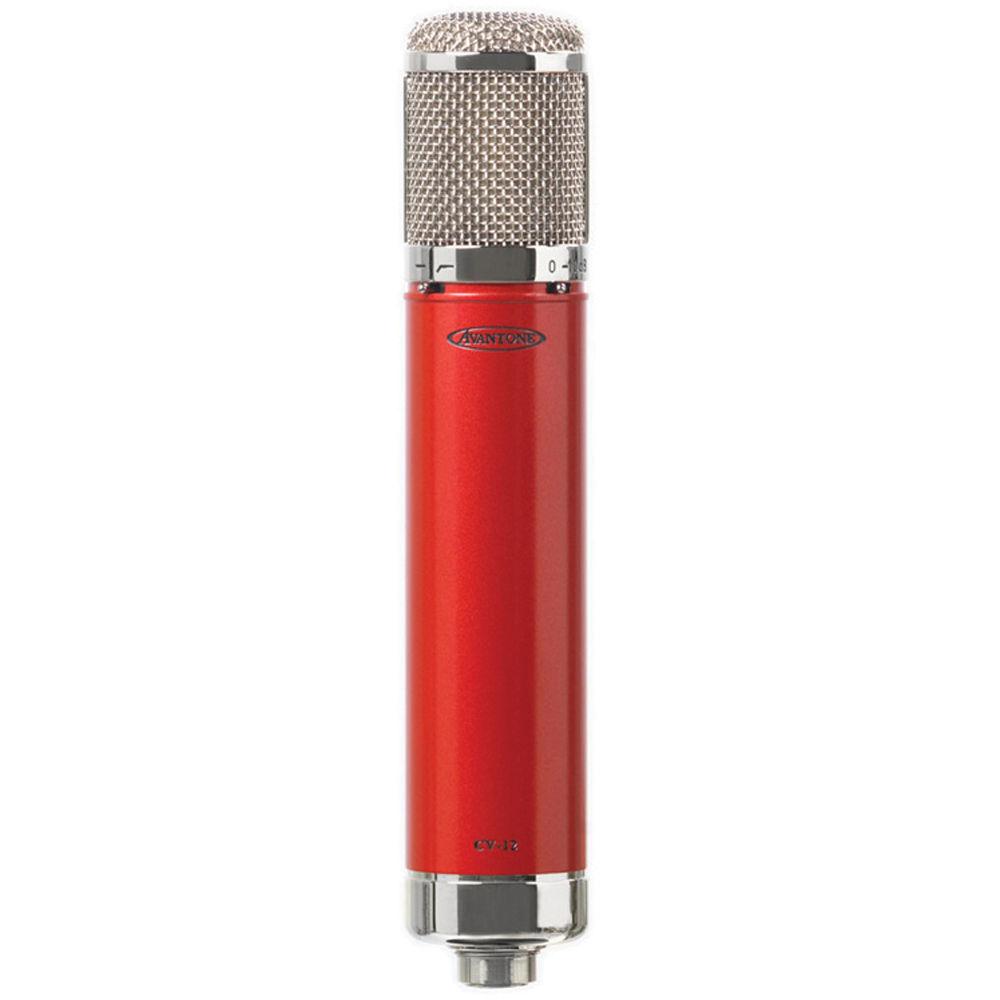

The CV-12 Multi-Pattern Large Capsule Tube Condenser Microphone from Avantone features a large 32mm mylar transducer and tube output stage featuring a 6072A tube for a warm, vintage tone and audio quality. The CV-12 is designed to capture vocals and instruments with the warmth and character of microphones of the '50s and '60s, at a fraction of the cost of some popular tube microphones. Its elegant Cabernet Red-Wine finish and nickel trim are signature to Avantone's Cabernet (C-series) microphones.Capture vocals, piano, guitar, strings, amplifier cabinets and other sources with enhanced detail, low noise and low distortion. The CV-12's external power supply features variations of omnidirectional, cardioid, and hypercardioid polar patterns, for a total of 9 selectable patterns. In addition, there is a -10 dB pad switch for minimizing distortion, and an 80 Hz HPF filter for minimizing low frequency noise. The microphone is shipped with Avantone's custom retro shockmount, power supply, connecting cable and aluminum carrying case. - 9-pattern tube microphone w/ dual 32mm gold sputtered thin Mylar capsules
- -10 dB pad & 80 Hz LF metal roll-off toggle switches
- Hand-selected Russian made 6072A tube
- Each CV-12 mic has a serial number
- Ideal for studio vocals, acoustic guitar, mandolin, drum overheads, room mic, piano

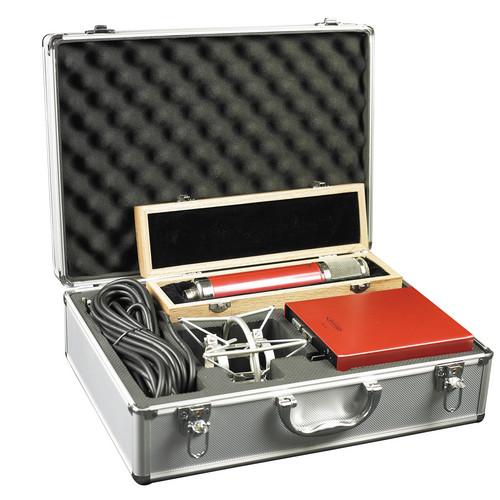

UPC: 852437001057 In the Box Avantone Pro CV-12 Multipattern Large Capsule Tube Condenser Microphone Custom Retro Shockmount with Extra Elastic Bands PS-12 Multi-Pattern Power Supply with Cables Elegant Padded Genuine Wooden Microphone Box Premium Grade 6072A Tube Padded Aluminum Storage / Travel Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CV-12 Multipattern Large Capsule Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CV-12 Specs | | | Transducer | Condenser | | Diaphragm | 1.26" / 32 mm | | Tube | Yes | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 17 dB | | Maximum SPL | 136 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 250 Ohms | | Sensitivity | -35 dB | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 7-Pin XLR | | Length | 9.33" / 237 mm | | Diameter | 1.81" / 46 mm | | Weight | 1.8 lb / 0.82 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 17.5 x 12.8 x 6.8" |
