User Manual for Avantone Pro CV-28 Small-Capsule Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Avantone Pro CV-28 Small-Capsule Tube Condenser
- Product category: Tube Microphones Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Tube Microphones
 |
User manual for the Avantone Pro CV-28 Small-Capsule Tube Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|

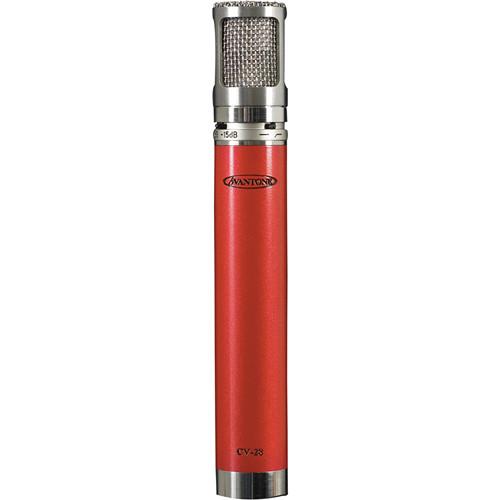

Product description The CV-28 Small-Capsule Tube Condenser Microphone from Avantone Pro is designed with interchangeable capsules for cardioid, hypercardioid, and omni polar patterns. The mic features a military-grade 6J1B tube, and offers vintage tone comparable to mics from the 1950s and '60s, at a fraction of the price. It excels on acoustic guitar, mandolin, percussion, piano, as a drum overhead, and more.
The CV-28 offers both a -15 dB attenuation switch and a switchable high-pass filter that rolls off 6 dB/octave at 80 Hz. The mic is powered by the included PS-28 power supply, which is switchable between 115 and 230 VAC. You also get a padded wooden box for the mic, and an aluminum flight case that fits the CV-28 and all of its accessories. - Comparable performance to vintage tube mics at a fraction of the cost
- 3 polar patterns: cardioid, omni, and hypercardioid, switchable via interchangeable capsules
- Switchable high-pass filter with 80 Hz center frequency and 6 dB/octave roll off
- Switchable -15 dB input attenuation
- Mic body and capsule assembly made of precision machined brass, with Cabernet Wine-Red finish and polished nickel trim and grill
- Dedicated PS-28 power supply with switchable 115/230 VAC capability
- Transformer-coupled tube circuitry

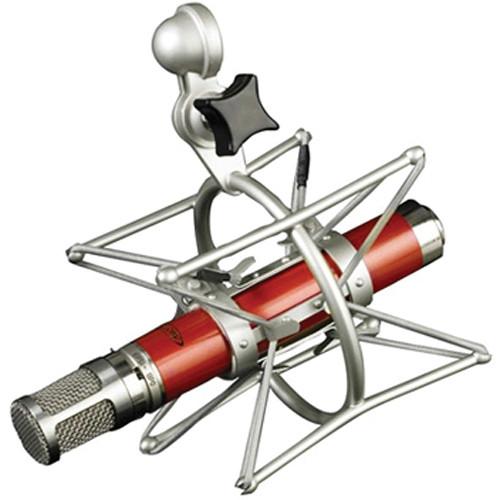

- Includes custom retro shockmount which allows precise positioning while inhibiting transfer of unwanted vibrations

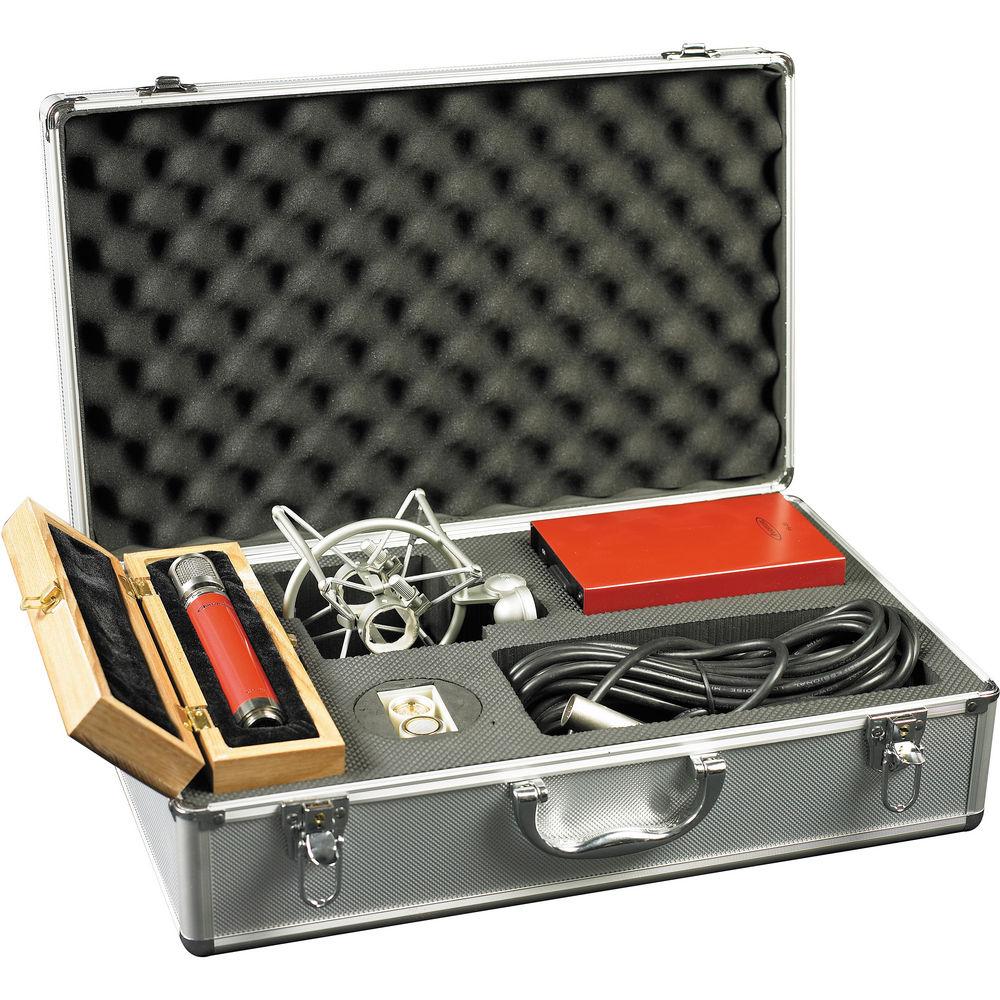

UPC: 852437001101 In the Box Avantone Pro CV-28 Small-Capsule Tube Condenser Microphone CV-28 Tube Microphone 3 x Interchangeable Capsules (Cardioid, Omni, Hypercardioid) Custom Retro Shockmount Avantone PS-28 Proprietary Power Supply with Cables Padded Wood Mic Box Padded Aluminum Storage / Travel Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro CV-28 Small-Capsule Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro CV-28 Specs | | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Tube | Yes | | Polar Pattern | Cardioid, Hypercardioid, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 17 dB | | Maximum SPL | 136 dB SPL | | Pad | -15 dB | | THD | 0.5% | | Impedance | 250 Ohms | | Sensitivity | 34 dB | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | Output Connectors | 1 x 7-Pin XLR | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 18.6 x 12.2 x 5.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
