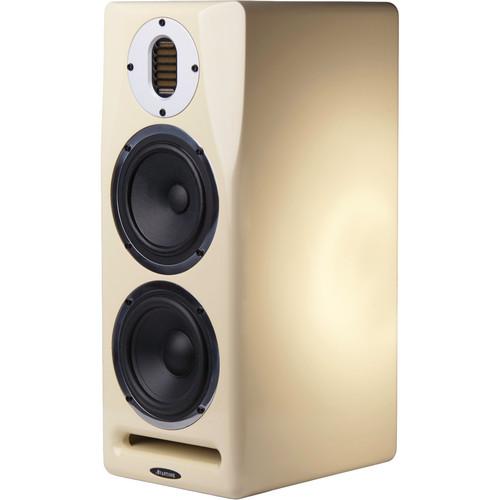

User Manual for Avantone Pro Mix Tower Active 3-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the Avantone Pro Mix Tower Active 3-Way
- Product category: Studio Monitors Avantone Pro
- Brand: Avantone Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avantone Pro Studio Monitors
|
User manual for the Avantone Pro Mix Tower Active 3-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avantone Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avantone Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avantone Pro product will considerably shorten its lifespan!
|
Product description The cream version of the Avantone Mix Tower Active 3-Way Studio Monitor (Single) is designed for professional mixing and mastering applications. The monitor features a custom designed air motion transformer that is sensitive to 94 dB per watt for the treble, a custom 5.25" switchable full-range mid woofer, and a 5.25" custom designed sub-woofer.
The cabinet design further contributes to the sound of the monitor by incorporating a slanted front panel to reduce first incidental cabinet diffraction in the highly directional treble range as well as a front firing bass reflex port to lower the frequency response. The mid frequency driver can be switched to produce either mid range or full range sound. For amplification, the high frequency element receives 100W RMS, the mid frequency/full-range driver receives 100W RMS, and the subwoofer receives 200W RMS.
For controls the unit features a knurled volume knob, a ground lift switch, and a lit power switch. I/O is available in the form of balanced combination 1/4" Phone/XLR connectors. The Accessories include a foot switch, a bridge cable, and an external power supply. - Slanted Cabinet
- Reduces baffle diffraction in highly directional treble range
- Midbass
- Features switchable full range custom 5.25" midbass driver
- Air Motion Transformer
- Provides treble response using proprietary Avantone Pro design
- Bass Reflex Port
- Lowers bass frequency extension
In the Box Avantone Pro Mix Tower Active 3-Way Studio Monitor (Cream) Bridge Cable Foot Switch External Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Mix Tower Active 3-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro MixTower Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x / Air Motion Transformer
MF Driver: 1 x 5.25" / Paper Cone with 25 / mm Voice Coil
LF Driver: 1 x 5.25" / 13.33 cm Cone with 1.33" / 34 mm Voice Coil | | Amplification | HF Amplifier: Class-HD Rated at 100 W RMS
MF Amplifier: Class-HD Rated at 100 W RMS
LF Amplifier: Class-HD Rated at 200 W RMS | | | | Frequency Range | 45 Hz to 38 kHz | | Maximum Sound Pressure Level (SPL) | 108 dB | | Signal-to-Noise Ratio | 113 dBA | | Total Harmonic Distortion (THD) | 0.2% | | Analog Input Sensitivity/Gain | +4 dB / -10 dB (Continuously Variable) | | | | I/O | 1 x Combo XLR / 1/4" Analog Input | | | | Enclosure Material | Acoustical Stuffing, MDF | | Cooling | Passive Cooling | | Dimensions (W x H x D) | 7.5 x 18.8 x 10.0" / 190.0 x 475.0 x 255.0 mm | | Weight | 23.3 lb / 10.6 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
