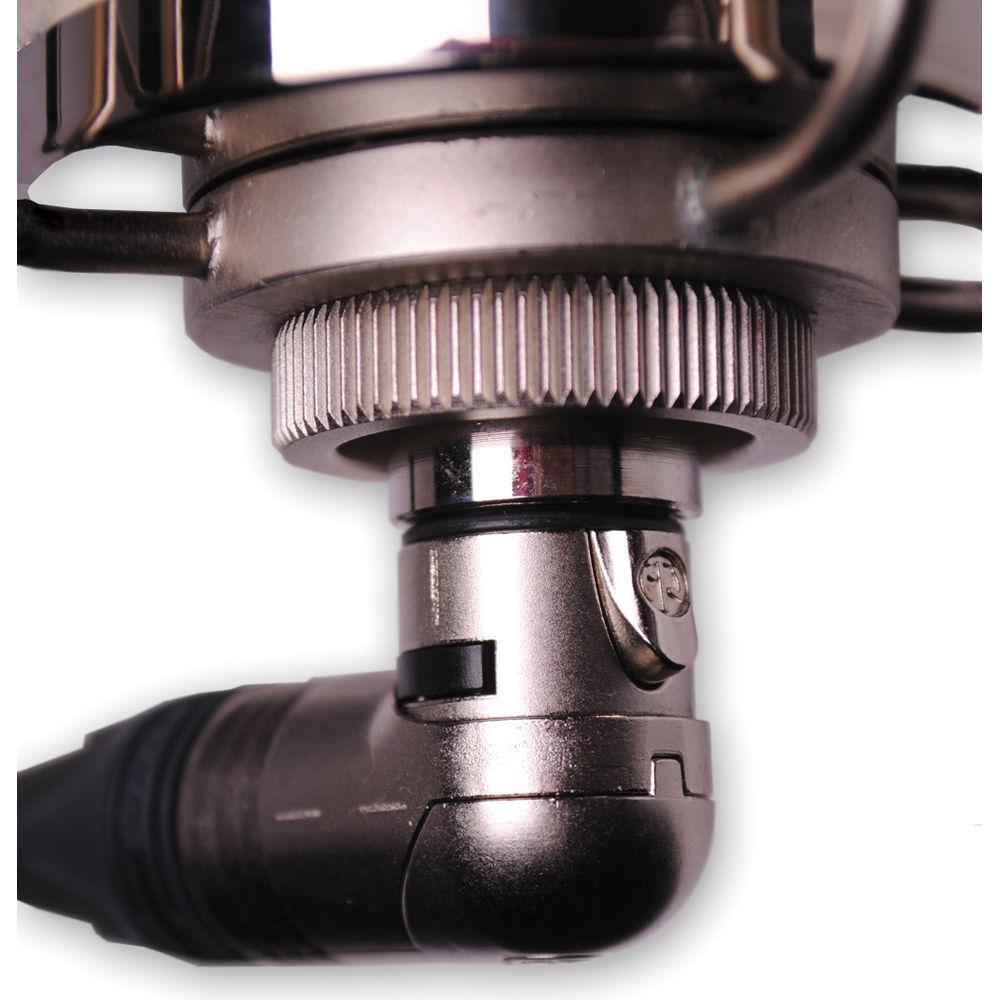

Product description The Pro BV-1 Large-Diaphragm Tube Condenser Microphone from Avantone is designed for warm sounding, professional quality reproduction of vocals and instruments for a multitude of recording applications. The BV-1 is designed to be rugged and reliable. Its body and capsule assembly are constructed of brass to protect the 34 mm gold sputtered mylar diaphragm. Furthermore, it has rear vents to help keep the tube at a stable temperature. The BV-1 is also built for versatility, incorporating variable polar pattern switching that is remotely controlled from the included power supply. The pattern selector has 9 different settings that span between omnidirectional and figure-eight, with cardioid in the center. For recording louder sound sources, such as when used to record percussion, the microphone is equipped with a switchable pad that attenuates the signal -10 dB to help eliminate distortion. Also, to save you work when mixing your recording, the mic has a high pass switch that when engaged cuts unwanted frequencies from the signal by 6 dB per octave below 80 Hz. It also includes a 20' 7-pin XLR microphone cable that connects the mic to the power supply, and through which the vacuum tube receives its power. - Recommended for recording vocals, acoustic guitar, mandolin, drum overheads, percussion, piano and more

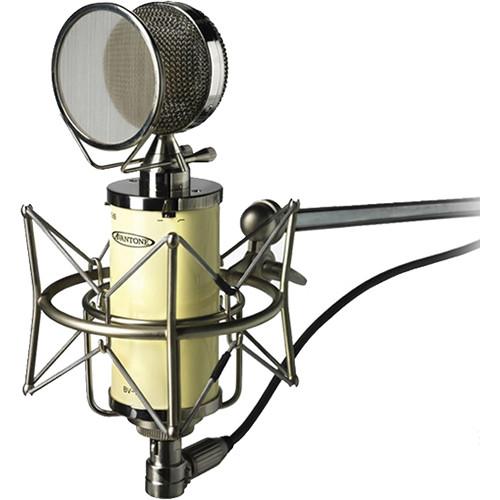

- Shockmount included for precise positioning of the mic while inhibiting unwanted vibrations from being picked up
- "Retro-Butter-Cream" finish with polished nickel trim and grill
- Includes mic box and road case for protection during transport
- Detachable metal pop screen to filter breath noise when recording vocals

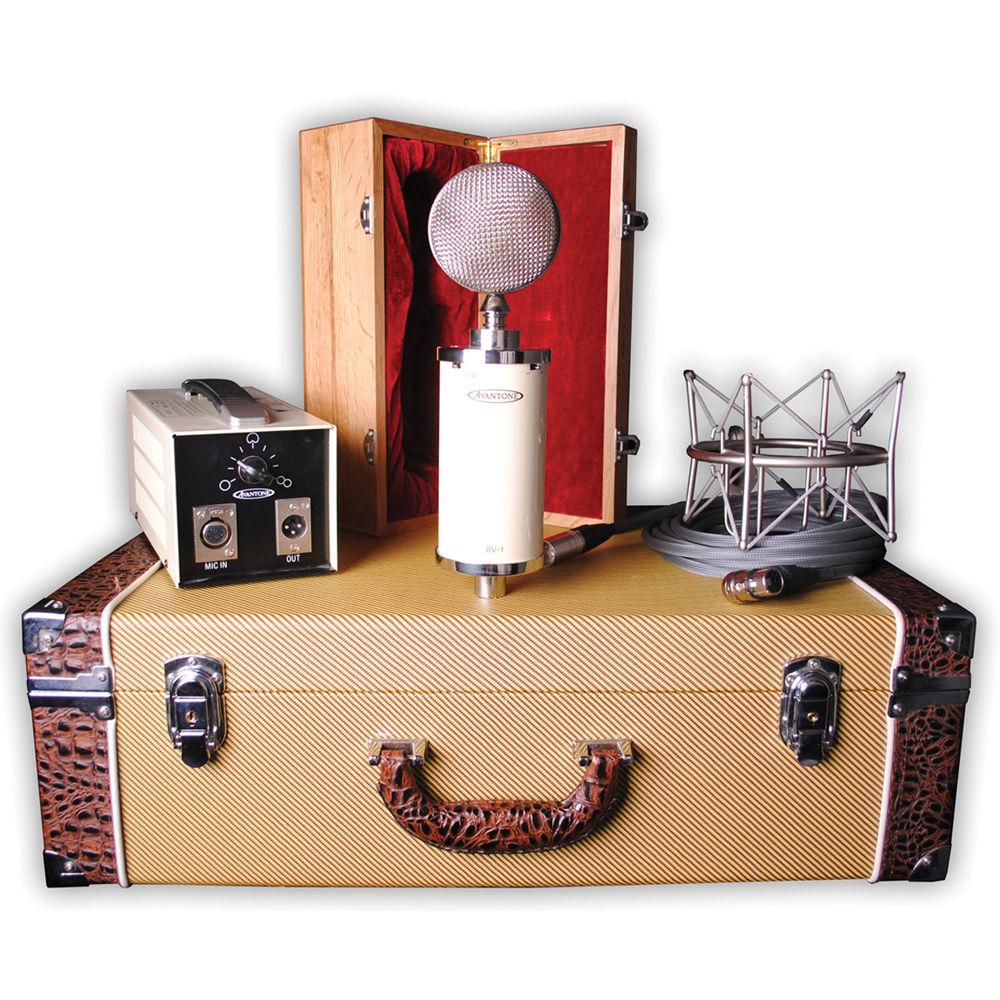

In the Box Avantone Pro Pro BV-1 Large-Diaphragm Tube Condenser Microphone Power Supply Padded Wooden Mic Box Shockmount Custom Designed Tweed Road Case Removable Metal Pop Filter 20' Mic Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avantone Pro Pro BV-1 Large-Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvantone Pro BV-1 Specs | | | Transducer | Condenser | | Diaphragm | 1.34" / 34 mm | | Tube | Yes | | Frequency Range | 25 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted | | Maximum SPL | 134 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 35 dBV/Pa | | Low-Cut Filter | 6 dB/Octave @ 80 Hz | | | | Output Connectors | 1 x 7-Pin XLR | | Length | 10" / 254.00 mm | | Diameter | 2.5" / 63.50 mm | | Weight | 46 oz / 1.30 kg | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 23.1 x 17.0 x 16.8" |
