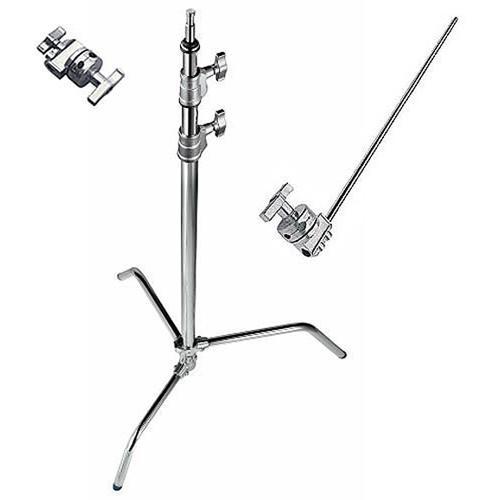

User Manual for Avenger A2033L 10.75' C-Stand Grip Arm Kit Click to enlarge the picture
Contents of the user manual for the Avenger A2033L 10.75' C-Stand Grip Arm
- Product category: Light Stands Avenger
- Brand: Avenger
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenger Light Stands
|
User manual for the Avenger A2033L 10.75' C-Stand Grip Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenger product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenger user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenger product will considerably shorten its lifespan!
|
Product description This Avenger A2033LKIT Century Grip Arm Kit is constructed of chrome-plated steel. The stand features one sliding leg, which allows it to adapt to uneven terrain such as stairs or hillsides. This feature provides optimum support for your light heads, reflectors or flags. This grip kit includes a D520L 40" (1 m) extension arm and D200 2.5" grip head which work together to act as a boom or flag holder. - Sliding Leg C-Stand (Chrome-plated, 10.75') This 10.75' Avenger Sliding Leg C-Stand features chrome-plated steel construction and a 3-section column with 2 risers. The innovative design of the base allows the individual legs to be set at any angle allowing positioning in locations not possible with classic stands. One of the legs slides along the center column to accommodate uneven terrain. The legs fold flat for easy storage.
- Sliding Leg
- One leg is able to slide along the lower part of the riser to compensate for uneven terrain or to rest on an apple box for leveling
- Fold Away Legs
- Spring loaded legs are easy to fold flat for storage
- Quick Set Up
- Sets up easily in the matter of seconds
- Durable Finish
- Resists all weather conditions
- Captive Handles
- "T" shaped handles do not come off the stand when unscrewed, preventing loss
UPC: 719821191520 - D520L 40" Extension Arm (Chrome-plated) The Avenger D520L 40" Extension Arm is usually used in conjunction with a stand mounted grip head to gain reach and articulation via the arm's built-in grip head. This chrome-plated steel arm can hold a small light head, flag, or reflector. UPC: 719821257318
- D200 2.5" Grip Head The Avenger D200 2.5" Grip Head is designed to hold grip arms, scrims, flags, etc. The head has a non-slip T-Top rubber grip handle cover to give you a firm grasp on it. It has a 5/8" Baby receiver for light stands and an automotive-quality brake pad for a secure hold on accessories. UPC: 719821107422
In the Box Bundle Items Sliding Leg C-Stand (Chrome-plated, 10.75') uscbtweddvaaxfdbfyt D520L 40" Extension Arm (Chrome-plated) D200 2.5" Grip Head
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenger A2033L 10.75' C-Stand Grip Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sliding Leg C-Stand (Chrome-plated, 10.75')
| Load Capacity | 22 lb / 10 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 10.8' / 3.3 m | | Minimum Working Height | 4.4' / 1.3 m | | Collapsed Height | 4.4' / 1.3 m | | Footprint Diameter | 3.1' / 0.95 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | Yes | | Reverse Legs | No | | Finish | Chrome | | Weight | 12.1 lb / 5.5 kg | | | | Box Dimensions (LxWxH) | 55.0 x 23.0 x 2.0" | - D520L 40" Extension Arm (Chrome-plated)
| Construction | Chrome-plated steel, aluminum alloy | | Dimensions | Arm: 40" (102 cm)
Grip head: 2.5" (6.35 cm) diameter | | Weight | 3.53 lb (1.6 kg) | | | | Box Dimensions (LxWxH) | 43.5 x 6.0 x 5.0" | - D200 2.5" Grip Head
| Construction | Polished aluminum | | Mount | 5/8" (16 mm) Baby receiver for stand
Grip Head accepts 5/8" (16 mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 1/4" (6.35 mm) diameter accessories | | Weight | 1.21 lb (0.55 kg) | | | | Box Dimensions (LxWxH) | 6.9 x 3.8 x 3.6" |
