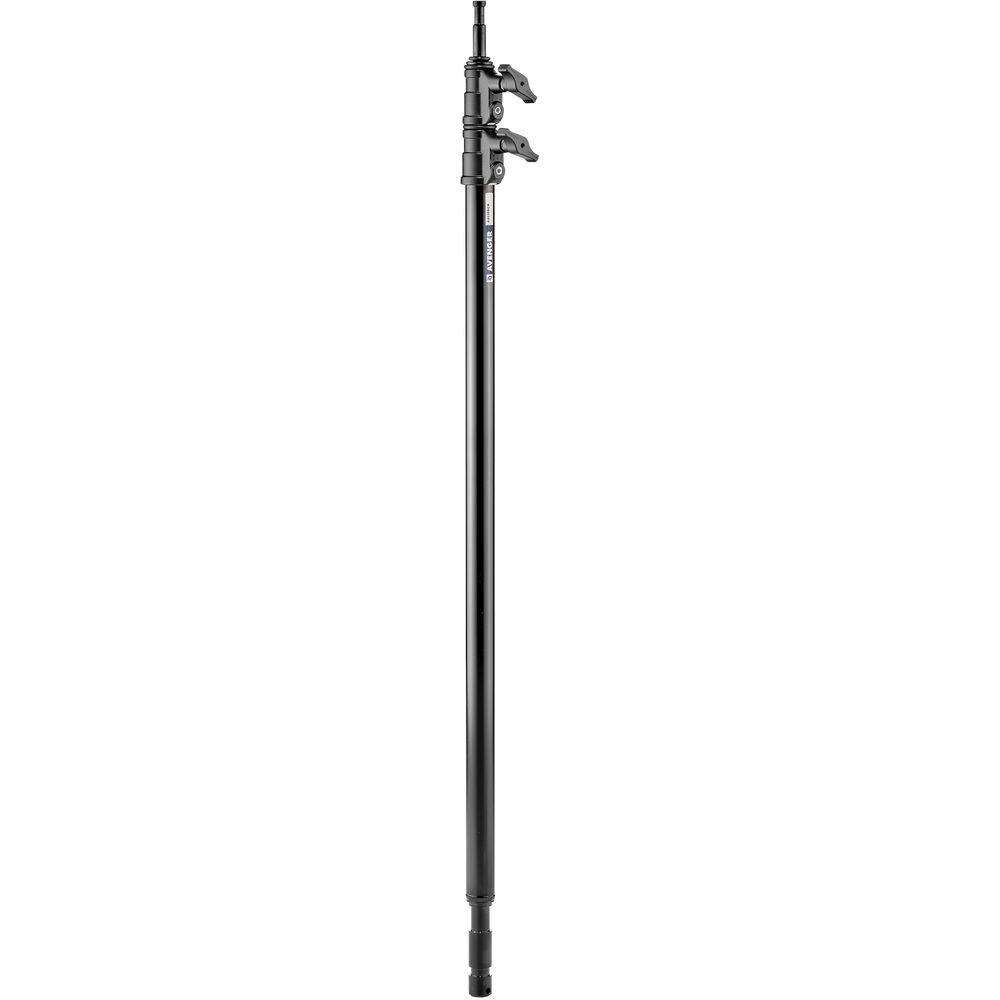

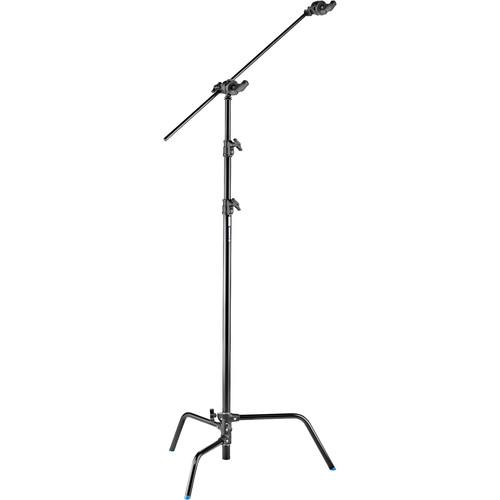

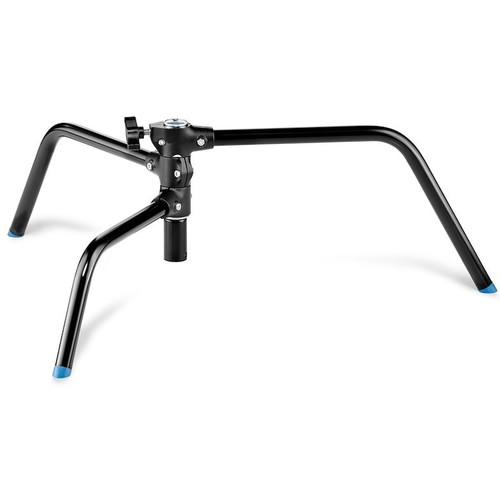

Product description This 9.8' Avenger Turtle Base C-Stand Grip Arm Kit features a detachable "turtle" base that can be removed for easier transport. A light head can be mounted to the base directly with the aid of an optional stand adapter (E200). This black steel kit includes a 2.5" grip head and 40" arm. The innovative design of the C-stand base allows individual legs to be set at any angle, and can be positioned in locations not possible with classic stands. - Turtle Base C-Stand (9.8', Black) This 9.8' Avenger 9.8' Turtle Base C-Stand features black steel construction, a 3-section column with 2 risers and a maximum height of 9.8'. It has a detachable "turtle" base that is easily removed for ease of transport. For added versatility, a light head can be mounted to the base directly with the aid of a stand adapter (E200). The innovative design on the base allows individual legs to be set at any angle, allowing positioning in locations not possible with classic stands.

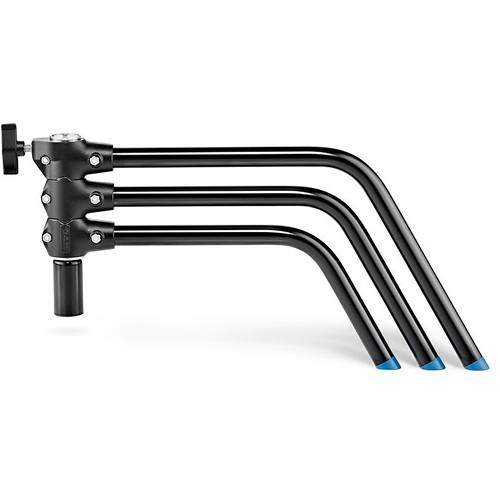

- Fold Away Legs
- Spring loaded legs with unique mounts which are easy to fold or replace
- Quick Set Up
- Sets up easily in the matter of seconds
- Durable Finish
- Resists all weather conditions
- Captive Handles
- "T" shaped handles do not come off the stand when unscrewed, preventing loss
UPC: 719821302797 - D520LB 40" Extension Arm (Black) The Avenger D520LB 40" Extension Arm is usually used in conjunction with a stand mounted grip head to gain reach and articulation via the arm's built-in grip head. This black-finished arm can hold a small light head, flag or reflector. UPC: 719821111269
- D200 2.5" Grip Head (Black) The Avenger D200 2.5" Grip Head is designed to hold grip arms, scrims, flags, etc. The head has a 5/8" Baby receiver for light stands and an automotive-quality brake pad for a secure hold on accessories. UPC: 719821107439
In the Box Bundle Items Turtle Base C-Stand (9.8', Black) fzbeezyxyddzxburrvaebqvxddt D520LB 40" Extension Arm (Black) D200 2.5" Grip Head (Black) fzbeezyxyddzxburrvaebqvxddt
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenger Turtle Base C-Stand Grip Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Turtle Base C-Stand (9.8', Black)
| Load Capacity | 22 lb / 10 kg | | Mounting Options | 5/8" Stud | | Number of Sections | 3 | | Column Diameter | 1.38" / 3.5 cm
1.18" / 3 cm
0.98" / 2.5 cm | | Maximum Working Height | 9.8' / 3 m | | Minimum Working Height | 4.4' / 1.3 m | | Collapsed Height | 4.4' / 1.3 m | | Footprint Diameter | 3.1' / 0.95 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | Yes | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Steel | | Weight | 13.7 lb / 6.2 kg | | | | Box Dimensions (LxWxH) | 54.5 x 22.5 x 2.7" | - D520LB 40" Extension Arm (Black)
| Construction | Zinc-plated steel, aluminum alloy | | Dimensions | Arm: 40" (102 cm)
Grip head: 2.5" (6.35 cm) diameter | | Weight | 3.53 lb (1.6 kg) | | | | Box Dimensions (LxWxH) | 42.0 x 5.5 x 3.5" | - D200 2.5" Grip Head (Black)
| Construction | Black aluminum | | Mount | 5/8" (16 mm) Baby receiver for stand
Grip Head accepts 5/8" (16 mm), 3/8" (9.5 mm), 1/2" (12.7 mm), 1/4" (6.35 mm) diameter accessories | | Weight | 1.21 lb (0.55 kg) | | | | Box Dimensions (LxWxH) | 7.0 x 3.6 x 3.5" |
