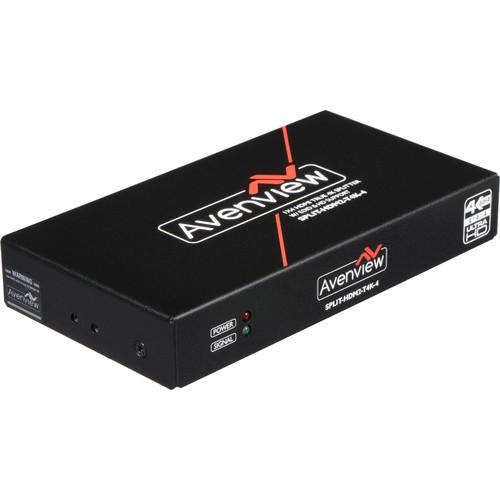

User Manual for Avenview 1 x 4 HDMI True 4K & UHD Splitter with EDID Click to enlarge the picture
Contents of the user manual for the Avenview 1 x 4 HDMI True
- Product category: Distribution Amplifiers (DA's) Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Distribution Amplifiers (DA's)
|
User manual for the Avenview 1 x 4 HDMI True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Run up to a Full 4K HDMI signal to four HDMI displays with the easy-to-use, plug-and-play 1 x 4 HDMI True 4K & UHD Splitter from Avenview. It duplicates both the video and audio signals of your source and reproduces the same quality. It also offers a rotary dial on the front panel for EDID selection.
This splitter supports DCI 4K resolution (4096 x 2160) at 24/30/60 Hz, in 4:2:0 color space at 10-bit and 4:4:4 at 8-bit; and Ultra HD 4K (3840 x 2160) at 24/30/60 Hz. It also supports 1080p60, 720p60, other video resolutions, and the gamut of PC resolutions, including 1920 x 1200. - Key Features
-
- 1 x HDMI input / 4 x HDMI outputs
- EDID selection via rotary dial on the front panel
- 25 to 600 MHz Frequency range
- Up to 18 Gbps (600 MHz) link transmission
- Multi-mode selection and EDID learning from displays
- Supported Video & Audio on Input/Output
-
- DCI 4K (4096 x 2160) at 24/30/60 Hz
- DCI 4K at 60 Hz in 4:2:0 color space at 10 bit / 4:4:4 at 8 bit
- Ultra HD 4K (3840 x 2160) at 24/30/60 Hz
- Full HD 1080p at 24/50/60 Hz & 3D
- 1080i at 50/60 Hz
- 720p at 50/60 Hz
- 1920 x 1200 at 60 Hz
- LPCM 7.1 Ch, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
UPC: 606825936106 In the Box Avenview 1 x 4 HDMI True 4K & UHD Splitter with EDID Power Adapter (5V, 2A) Set of Two Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 1 x 4 HDMI True 4K & UHD Splitter with EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview SPLIT-HDM2-T4K-4 Specs | Input | 1 x HDMI 2.0 Type A, female (DVI 1.0 supported via optional adapter) | | Outputs | 4 x HDMI 2.0 Type A, female | | Supported Resolutions | 4096 x 2160 at 24/30/60 Hz
3840 x 2160 at 24/30/60 Hz
1920 x 1080p at 24/50/60 Hz & 3D
1920 x 1080i at 50/60 Hz
1280 x 720p at 50/60 Hz & 3D
576p/i at 50 Hz
480p/i at 60 Hz
PC Resolutions:
4096 x 2160 at 24/30/60 Hz
3840 x 2160 at 24/30/60 Hz
1920 x 1200/1080 at 60 Hz
1680 x 1050 at 60 Hz
1600 x 900 at 60 Hz
1400 x 1050 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024/960/768/720 at 60 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
640 x 480 at 60 Hz | | 4K Color Space | DCI 4K at 60 Hz: 4:2:0 at 10-bit / 4:4:4 at 8-bit | | Video Bandwidth | Single-link 600 MHz (18 Gbps) | | Supported HDMI Cable Length | 15 ft (5 m) with 24 AWG high-speed HDMI cables | | Audio Support | LPCM 7.1 Ch, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | HDCP Compliance | HDCP 2.2 | | EDID | Selection via rotary control switch | | ESD Protection | Human Body Model:
±8 kV (Air-gap discharge)
±4 kV (Contact discharge) | | LEDs | Indicator LEDs on front panel | | Power Supply | 5 VDC, 2 A (US/EU standards, CE/FCC/UL certified) | | Power Consumption | 1.6 W (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions | 5.5 x 3.7 x 1.0" (14.0 x 9.4 x 2.5 cm) | | Weight | Approx. 0.9 lb (0.4 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.4 x 6.9 x 3.0" |
