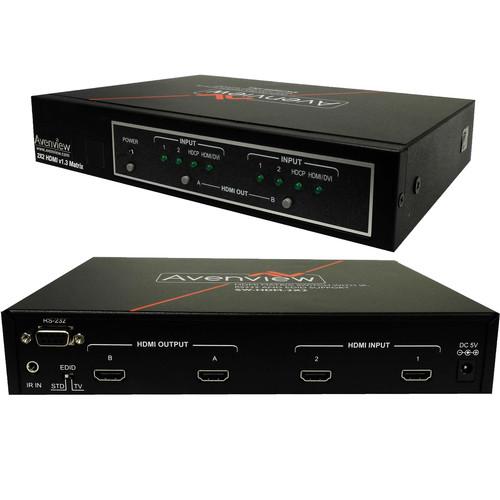

User Manual for Avenview 2x2 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Avenview 2x2 HDMI Matrix Switcher
- Product category: Routers & Switchers Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Routers & Switchers
|
User manual for the Avenview 2x2 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Route video from two inputs to either of two outputs with the Avenview 2x2 HDMI Matrix Switcher. HD video up to 1080p and multichannel audio are supported, as is adapted DVI video. HDCP protected content will be passed through to HDCP-compliant displays. For installation in professional A/V setups, RS-232 control is available for input/output selection. Front panel LEDs show which input is selected for each output. Wireless control is available using the included IR remote control. A power supply is included, so you can be up and running right out of the box. - HDMI 1.3, HDCP 1.1, and DVI 1.0 compliant
- Supports digital video formats in 12-bit Deep Color and lossless, as well as compressed digital audio
- HDMI input compensation, clock phase adjustment, and jitter-free
- Input source LED indicators on each output
- HDMI signal reclocked and level-compensated
- Supports IR remote control and IR extender
In the Box Avenview 2x2 HDMI Matrix Switcher Power Supply IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 2x2 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview SW-HDM-2X2 Specs | Inputs | 2 x HDMI Type A v1.3 | | Outputs | 2 x HDMI Type A v1.3 | | Transmission Distance | Up to 50' / 15 m | | Resolution Support | TV: 480p to 1080p, 50/60 Hz
VESA: VGA to UXGA | | HDCP Compliance | HDCP 1.1 | | Audio Formats Supported | PCM 2.0/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD | | ESD Protection | Human Body Model
Air-Gap Discharge: ±8 kV
Contact Discharge: ±4 kV | | Power Supply | 5 VDC, 3.2 A | | Power Consumption | 9 W (maximum) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20 to 90% RH (non-condensing) | | Dimensions | 9.4 x 6.6 x 1.7" / 239 x 168 x 43 mm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.6 x 8.2 x 3.0" |
