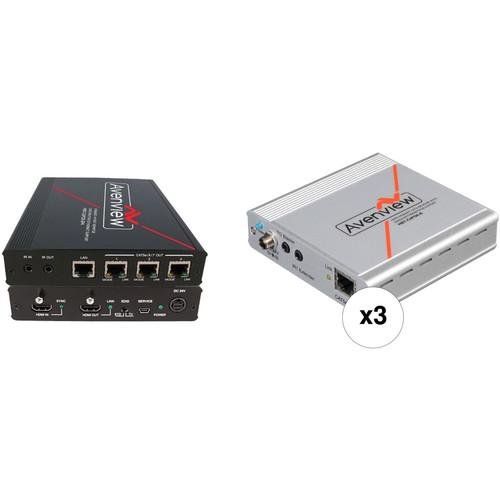

User Manual for Avenview 3-Way HDBaseT Splitter and Receiver Kit Click to enlarge the picture
Contents of the user manual for the Avenview 3-Way HDBaseT Splitter and Receiver
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview 3-Way HDBaseT Splitter and Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Send an HD or UHD signal to up to three screens with this 3-Way HDBaseT Splitter and Receiver Kit from Avenview. HDBaseT is an advantageous medium, as it uses inexpensive twisted-pair cable to carry high-quality HDMI signals over long distances, a crucial factor in A/V integration. The splitter takes an incoming HDMI signal and sends it out to the receivers over the three HDBaseT outputs. The receivers connect to your screens via HDMI and accept the incoming HDBaseT signals. All aspects of the HDMI signal, including HDCP and audio information, are preserved over the HDBaseT connection, allowing for the showing of high quality and content protected material. See below for more information on the individual items. - Avenview HBT-C6POE-SP4 1x4 HDBaseT HDMI Splitter Split an HDMI signal and send it out to up to four displays with the Avenview HBT-C6POE-SP4 1x4 HDBaseT HDMI Splitter. One video output is over HDMI and three are HDBaseT. HDBaseT is advantageous in situations where longer cable runs to each display are required, such as conventions, installations, and larger presentations. HD and 4K video are supported by both HDMI and HDBaseT outputs, as is multi-channel audio in various formats. HDCP and EDID compliance is maintained ensuring that compatible encrypted and unencrypted content can be displayed properly and with minimal handshake time. Aside from video and audio, HDBaseT can also transport bidirectional IR control for device communication and power to separately available HDBaseT receivers that accept PoE (Power over Ethernet). Included with this unit are an IR transmitter, an IR receiver, and a power supply with a power cord. UPC: 606825934157
- 3 x Avenview HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver When used with a compatible transmitter, the Avenview HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver extends high definition video and multi-channel audio formats to any compatible HD monitor. When a Cat5e/6 cable is used, HD signals can be transmitted up to 328', while Ultra HD signals are extended up to 229.6'. Ultra HD signals can be extended up to 328' if a Cat6a/7 cable is used. The receiver also extends bidirectional data signals ranging from 30 to 50 kHz using a Cat5/6 cable.
The HBT-C6POE-R unit features a UTP output port that allows users to extend video and audio signals up to 328'. The unit supports PoE (Power over Ethernet) and internet (100 Mb/s Ethernet service when connected to a router). It also allows bidirectional IR control of the source connected to the unit from the user's IR remote control at the monitor side. These features have been added to this unit to give the installer and user a complete solution for online streaming and using network-connected devices, including smart TVs and UHD monitors. - Input: HDMI with 3D, DCI 4K, and 1080p; HDCP and DVI compliant
- Video bandwidth: From 300 MHz / 9 Gb/s
- PC resolutions: VGA to WUXGA
- HD resolutions: Up to DCI 4K (4096 x 2160 @ 24 Hz) and UHD 4K (3840 x 2160 @ 30 Hz); 1080p (1920 x 1080 @ 60 Hz)
- Audio supported: LPCM 7.1-channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Audio transmission: 32 to 192 kHz sample rate
- Distance: Up to 328' through Cat6e/6a/7 cables
- Ethernet transmission rate up to 100 Mb/s
- Uncompressed video: 1080p, 60 Hz, 36-bit
- Service: USB (for manufacturer use only)
- 3D support: Follow by display/TV's EDID
- 5Play convergence: HDMI, LAN, PoE, and bidirectional control (IR & RS-232)
UPC: 606825934218 In the Box - HBT-C6POE-SP4 1x4 HDBaseT HDMI Splitter tfbaadzvbtvqyc
- IR Receiver
- IR Blaster
- Power Supply
- Power Cord
- Limited 3-Year Warranty
- 3 x HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver
Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 3-Way HDBaseT Splitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Avenview HBT-C6POE-SP4 1x4 HDBaseT HDMI Splitter
| Data Rate | 250 Mb/s up to 3 Gb/s | | PC Resolutions | VGA to WUXGA (1920 x 1200) | | Video Resolutions | 4096 x 2160 @ 24
3840 x 2160 @ 30
1080p
1080i
720p
480p
480i | | HDMI Transmission Range | DCI/UHD 4K:
Cat6e: 250' / 75 m
Cat6a: 330' / 100 m
Full HD:
Cat6e: 330' / 100 m
Cat6a: 360' / 110 m | | Audio Supported | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | Audio Transmission | 32 to 192 kHz sample rate | | IR Frequency | 30 to 50 kHz | | Input DDC Signal | 5 V (peak-to-peak, TTL) | | ESD Protection | Human Body Model: ±15 kV (air-gap discharge), ±8 kV (contact discharge)
Core Chipset: ±8 kV | | Input Connectors | 1 x HDMI
1 x IR in
1 x LAN (on RJ-45)
1 x Mini USB (service only) | | Output Connectors | 1 x HDMI (local out)
3 x Cat5e/6/7
1 x IR out | | Power Supply | 24 VDC, 2.7 A (US/EU Standard CE, FCC, UL Certified) | | Power Consumption | 36 W (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20 to 90%, non-condensing | | Dimensions (L x W x H) | 7.8 x 5.7 x 1.2" / 198.1 x 144.7 x 30.4 mm | | Weight | 1.3 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 11.811 x 10.236 x 2.677" | - 3 x Avenview HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver
| Device | HDBaseT HDMI Receiver | | HDMI Compliance | Yes, HDBaseT | | HDCP | Yes | | Video Bandwidth | Single-link 300 MHz (9 Gb/s) | | Supported Resolutions | 480i / 480p / 720p / 1080i / 1080p60
Up to UHD 4K @ 30 (3840 x 2160 @ 24/25/30 Hz)
DCI 4K (4096 x 2160 @ 24 Hz) | | CEC Compliant | Allows CEC bypass | | Supported Video | Cat5e/6 up to 1080p @ 60 Hz
36-bit, 3D (data rates lower than 5.3 Gb/s or below 225 MHz TMDS clock)
Range: 328' (100 m)
Pixel Clock Rate: ≤225 MHz
Video Data Rate: ≤5.3 Gb/s HD Video
Cat5e/6 4Kx2K @ 30 Hz
Range: 229.6' (70 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video
Cat6a/7 4Kx2K @ 30 Hz
Range: 328' (100 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video | | Audio Support | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp, TTL | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge), ±4 kV (contact discharge) | | Input | 1 x 3.5 mm IR Extender
1 x Cat5e/6/7 | | Output | 1 x RS-232
1 x 3.5 mm IR
1 x LAN port
1 x HDMI | | HDMI Connector | Type A (19-pin female) | | LEDs | Yellow LED | | IR Frequency | 30 to 50 kHz | | Power Supply | 24 VDC / 1.25 A (US/EU Standards, CE/FCC/UL Certified) | | Power Consumption | 13 W (maximum) | | Operating Temperature | 32 to 104ËF (0 to 40ËC) | | Storage Temperature | -4 to 140ËF (-20 to 60ËC) | | Relative Humidity | 20 to 90% RH, non-condensing | | Dimensions | 4.0 x 4.4 x 1.0" (10.2 x 11.3 x 2.5 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 2.3" |
