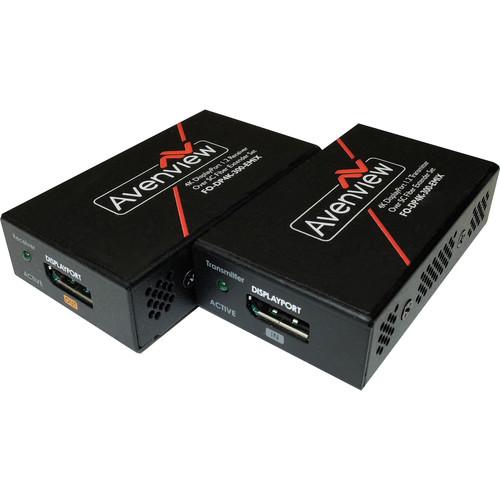

User Manual for Avenview 4K DisplayPort Extender Set Over SC Fiber Click to enlarge the picture
Contents of the user manual for the Avenview 4K DisplayPort Extender Set Over
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview 4K DisplayPort Extender Set Over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview 4K DisplayPort Extender Set allows you to extend a DCI 4K/60 DisplayPort signal up to 984' over a single OM3 SC fiber cable, sold separately. You can connect your DisplayPort source to a 4K monitor along with multi-channel audio. Supporting Multi-Stream (MTS), the set also allows you to daisy-chain compatible monitors. The units are designed compact so they can conveniently be installed discreetly, such as behind your source device or output display. They can also be rack-mounted on a rack shelf. - Key Features
-
- Extend up to a DCI 4K/60 DisplayPort signal up to 984' over SC fiber
- Supports multi-channel audio, such as LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master
- 5.4 Gb/s video data rate
- 21.6 Gb/s bandwidth
- 32-192 kHz audio transmission
- Supports Multi-Stream (MST) for daisy chaining multiple monitors
UPC: 606825934652 In the Box Avenview 4K DisplayPort Extender Set Over SC Fiber Transmitter Receiver 2 x 5 VDC, 2A Power Adapter 2 x 3' DisplayPort Copper Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 4K DisplayPort Extender Set Over SC Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DP4K-300-EMIX-SET Specs | Input/Output Resolutions | 4096 x 2160 at 60 Hz
3860 x 2160 at 60 Hz
2560 x 1600 (WQXGA) at 60 Hz
1920 x 1080 at 60 Hz
2560 x 1440
2560 x 1080 | | Transmitter Input/Output | 1 x DisplayPort 1.2a input
1 x SC optical fiber output | | Receiver Input/Output | 1 x SC optical fiber input
1 x DisplayPort 1.2a output | | Fiber type | 50/125 micron multi-mode glass fiber OM2 or OM3 rated fiber | | Distance | 984' / 300 m | | Bandwidth | 21.6 Gb/s | | Optical Source | 850 nm VCSEl | | Power Supply | 5 VDC, 2 A (US/EU standards, CE/FCC/UL certified) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20-90% RH (no condensation) | | Dimensions | 3.2 x 2.1 x 1" / 8.1 x 5.3 x 2.5 cm | | Weight | 1.5 lb / 680 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.7 x 7.4 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
