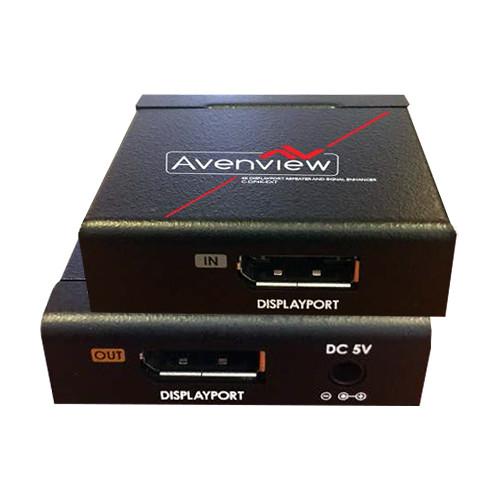

User Manual for Avenview 4K DisplayPort Repeater and Signal Enhancer Click to enlarge the picture
Contents of the user manual for the Avenview 4K DisplayPort Repeater and Signal
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview 4K DisplayPort Repeater and Signal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview 4K DisplayPort Repeater and Signal Enhancer is designed to pair with optional DisplayPort fiber cables to carry a DCI 4K DisplayPort signal at extended distances to a 4K display. It carries the signal up to 131' over fiber, and Avenview recommends their successfully tested DisplayPort 1.2a fiber cable series, which includes the 131' FO-DP4K-40-MM cable.
Connect your DisplayPort source to the repeater using a standard DisplayPort cable, sold separately, and then connect the repeater to your 4K display over fiber. To maintain image quality, the repeater boosts the power signal of your source whenever necessary. If less than 3.3V is provided from the source, the booster will kick in, and this is one of the main features of the repeater. This can happen if your source has a multi-output graphics card, such as a Quad GPU, in which case the voltage of the power signal drops a certain amount when the signal is distributed. The repeater corrects and stabilizes the power signal by regenerating it. Furthermore, the repeater additionally enhances the image being carried by cleaning out the digital noise in it.
The device features a metal construction and compact design so that it's robust and can be installed out of sight. Note: 1) Requires DisplayPort fiber cable up to 131'. Avenview recommends their successfully tested DisplayPort 1.2a cables, including the 131' FO-DP4K-40-MM cable. - Key Features
-
- Pair with optional DisplayPort fiber cables to carry a DisplayPort signal up to 131' to a 4K display
- Supports up to DCI 4K (4096 x 2160) resolution at 60 Hz
- Boosts power signal to maintain image quality, useful for DisplayPort sources using multi-output GPUs
- Enhances image quality by removing digital noise
- Metal construction and compact design for seamless installation
- Supports data rates up to to 5.4 Gb/s
- DPCD signal compliant
- Plug-and-play operation
UPC: 606825937509 In the Box Avenview 4K DisplayPort Repeater and Signal Enhancer Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 4K DisplayPort Repeater and Signal Enhancer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview C-DP4K-EXT Specs | Input | 1 x DisplayPort 1.2a 20-pin female | | Output | 1 x DisplayPort 1.2a 20-pin female | | Video Bandwidth | 4 lanes, 21.6 Gb/s (HBR2) | | Supported Resolution | Up to 4096 x 2160 at 60 Hz | | Power Supply | 5 VDC, 2 A | | Chassis Material | Metal | | ESD Protection | Human Body Model:
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
