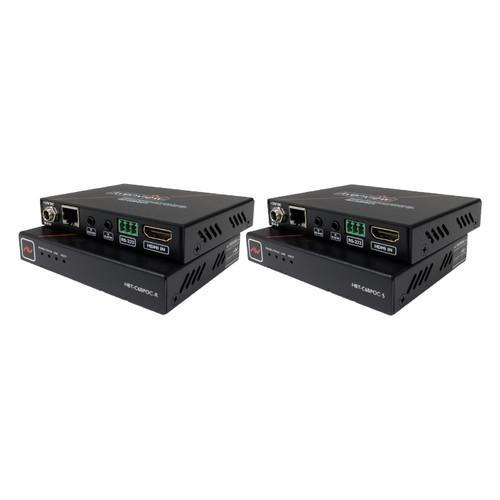

User Manual for Avenview 4K HDMI HDBaseT over Cat 5e 6 7 Extender Set Click to enlarge the picture
Contents of the user manual for the Avenview 4K HDMI HDBaseT over Cat
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview 4K HDMI HDBaseT over Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview 4K HDMI HDBaseT over Cat 5e/6/7 Extender Set carries a DCI/UHD 4K/60 HDMI signal up to 230' over a single Cat 6a or higher cable, and 1080p60 up to 328' over Cat 5e or higher. Uncompressed multi-channel audio, RS-232, IR, and PoC (Power over Cable) are also transmitted. PoC allows you to power both the transmitter and receiver using the single included 12V power supply.
Featuring a bandwidth of 18 Gb/s, the extender transmits uncompressed 4K DCI or UHD in 4:4:4, 8-bit sampling, or an HDR signal with 4:2:0, 10-bit sampling over certified 625 MHz Cat 6a/7 cables. - Key Features
-
- Transmits a DCI/UHD 4K/60 HDMI signal up to 230' over a single Cat 6a or higher cable
- Transmits a 1080p60 signal up to 328' over Cat 5e or higher
- Also carries uncompressed multi-channel audio, RS-232, IR, and PoC (Power over Cable)
- 18 Gb/s Bandwidth: transmits uncompressed DCI/UHD in 4:4:4, 8-bit sampling, or an HDR signal with 4:2:0, 10-bit sampling
- HDMI 1.4/2.0a compliant and DVI compatible
- PoC (Power over Cable): power both units with one power supply
- HDCP 2.2 compliant
- EDID bypass and EDID adjustment for HDMI 2.0 pixel clock over 340 MHz
- Supports CEC bypass
- Full-duplex RS-232 control up to 115,200 bps
- 3D support (dependent on EDID of the display)
UPC: 606825937615 In the Box Avenview 4K HDMI HDBaseT over Cat 5e/6/7 Extender Set Transmitter Receiver IR Blaster IR Receiver 3-Pin Terminal Block Connector 12 VDC, 2A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 4K HDMI HDBaseT over Cat 5e 6 7 Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT2-C6BPOC-SET Specs | Video Bandwidth | 18 Gb/s, single-link 600 MHz | | Supported Resolutions | 4096 x 2160 at 24/25/30/50/60 Hz
3840 x 2160 at 24/25/30/50/60 Hz
480i - 1080p50/60, 1080p24 | | Transmission Distance | 4096 x 2160 / 3840 x 2160 at 60 Hz up to 230' / 70 m over Cat 6a and higher
1080p60 up to 328' / 100 m over Cat 5e and higher | | Audio Support | PCM 2-channel, PCM 5.1-channel, LPCM 7.1-channel, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, Dolby Atmos | | Transmitter Input/Output | 1 x HDMI Type A input
1 x 3.5 mm IR input
1 x RS-232 3-pin Phoenix input
1 x RJ45 HDBaseT output
1 x 3.5 mm IR output | | Receiver Input/Output | 1 x RJ45 HDBaseT input
1 x 3.5 mm IR input
1 x HDMI Type A output
1 x 3.5 mm IR output
1 x RS-232 3-pin Phoenix output | | Input TMDS Signal | 1.2 V (peak-to-peak) | | Input DDC Signal | 5 V (peak-to-peak, TTL) | | HDCP Compliance | HDCP 2.2 | | ESD Protection | Human Body Model:
