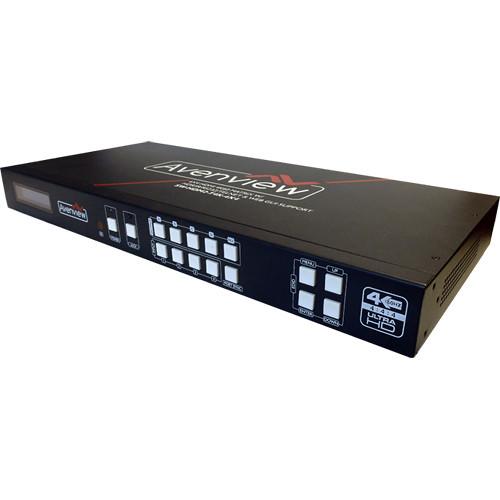

User Manual for Avenview 4x4 HDMI 4K Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Avenview 4x4 HDMI 4K Matrix Switcher
- Product category: Routers & Switchers Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Routers & Switchers
|
User manual for the Avenview 4x4 HDMI 4K Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview 4x4 HDMI 4K Matrix Switcher allows you to perform true matrix routing in up to Ultra HD 4K resolution at 60 Hz in 4:4:4 color sampling, along with high-resolution digital audio formats such as LPCM 7.1CH. It also supports all HDMI 3D formats.
It offers four HDMI 2.0 inputs and four outputs, and can be switched using an included IR remote control or front panel buttons, or via optional RS-232 or TCP/IP serial control. - Key Features
-
- HDMI 2.0 compliant
- HDCP 2.2/1.4 compliant
- Video formats up to UHD 4K at 60 Hz with 24-bit RGB/YCbCr 4:4:4/YCbCr 4:2:2, or 12-bit YCbCr 4:2:0, and high-resolution VESA mode video formats up to QSXGA at 60 Hz
- Color space conversions between RGB, YCbCr 4:4:4, YCbCr 4:2:2, and xvYCC video formats
- Supports all HDMI 3D formats up to UHD 4K/30
- Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192 kHz, compressed audio (IEC 61937), DSD, DST, DTS, and HBR
- Simultaneous HDMI, coax S/PDIF, and L/R audio outputs
- Smart EDID management
- IR remote, front panel, and optional RS-232/Ethernet serial control
UPC: 606825937813 In the Box Avenview 4x4 HDMI 4K Matrix Switcher Power Supply (12V, 2.5A) IR Remote IR Receiver Cable 2 x Mounting Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 4x4 HDMI 4K Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview SW-HDM2-T4K-4X4 Specs | Inputs | 4 x HDMI Type-A
1 x 3.5 mm IR receiver port
1 x RS-232
1 x RJ-45 (control) | | Outputs | 4 x HDMI Type-A
4 x S/PDIF
4 x 3.5 mm L/R | | Supported Resolution | 3840 x 2160 at 24/25/30/50/60 Hz
1920 x 1080p at 24/30/50/60 Hz
1080i, 720p, 576p, 480p, 576i, 480i | | HDMI Audio Output | PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD | | HDMI Compliance | 2.0 | | HDCP Compliance | 2.2 | | Supported HDMI Cable Length | 1080p 8-/12-Bit: 49 ft (15 m)
4K: 16 ft (5 m) | | Power Supply | 12 VDC / 2.5 A (US/EU standards, CE/FCC/UL certified) | | Power Consumption | 9 W (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge) and ±4 kV (contact discharge) | | Relative Humidity | 20-90% RH (no condensation) | | Dimensions | 17.2 x 8 x 1.8" (44 x 20 x 4.5 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 20.7 x 12.5 x 4.9" |
