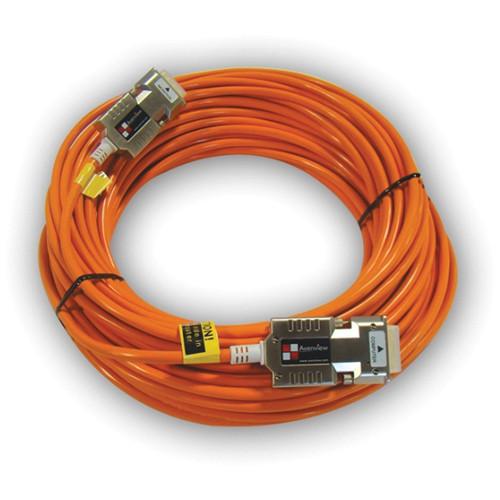

User Manual for Avenview 66' DVI-D Extender Over Fiber Optical Cable Click to enlarge the picture
Contents of the user manual for the Avenview 66' DVI-D Extender Over Fiber
- Product category: DVI to DVI Cables Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview DVI to DVI Cables
|
User manual for the Avenview 66' DVI-D Extender Over Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The 66' (20 m) DVI-D Extender Over Fiber Optical Cable from Avenview connects a single link digital DVI display up to 66' (20 m) from a computer with no loss of signal and delivers crystal clear digital images instantly. The cable is an integrated DVI-D cable solution, which features fiber optic components, built-in DDC signals and DVI connectors. This cable is an ideal solution for video wall systems, large LED sign boards, medical imaging equipment and more. An AC adapter is required for use with this cable (sold separately). - High-speed and long-distance transmissions by optical fiber
- Supports up to WUXGA (1920 x 1200) resolution
- Compatible with DDWG DVI standards
- R, G, B clock signal transmission by optical fiber
- DDC signal and 5 V power transmitted via the copper line
- Optical-fiber-only system without DDC corresponding to T.M.D.S signal
- The cable does not feature any EMI (Electromagnetic Interference) which makes it ideal for medical instruments and airplanes
Applications - Medical imaging equipment
- Airplane on-board video systems
- Conference room video equipment
In the Box Avenview 66' (20 m) DVI-D Extender Over Fiber Optical Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview 66' DVI-D Extender Over Fiber Optical Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DVI-20-MM Specs | DVI Connector Type | 24-pin DVI-D plug | | Input Signal | TMDS signal (DVI 1.0 standard) | | Output Signal | TMDS signal (DVI 1.0 standard) | | Video Bandwidth | 1.65 Gbps | | Supported Resolution & Distance | Up to WUXGA 1920 x 1200 @ 66' (20 m) | | Optical Converter | Transmitter: 4 channel 850 nm multimode VCSEL Receiver: 4 channel GaAs PIN photo diode | | Requirements | AC power adapter (sold separately) | | Cable Length | 66' (20 m) | | Dimensions | Transmitter and Receiver: 2.8 x 1.6 x 0.6" (7.11 x 4.06 x 1.52 cm) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 13.1 x 12.5 x 3.7" |
