User Manual for Avenview AVSignPro 1080p Digital Signage Player Click to enlarge the picture
Contents of the user manual for the Avenview AVSignPro 1080p Digital Signage Player
- Product category: Digital Signage Players Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Digital Signage Players
 |
User manual for the Avenview AVSignPro 1080p Digital Signage Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|

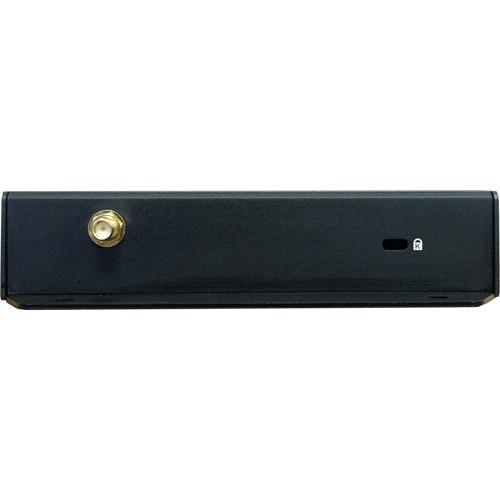

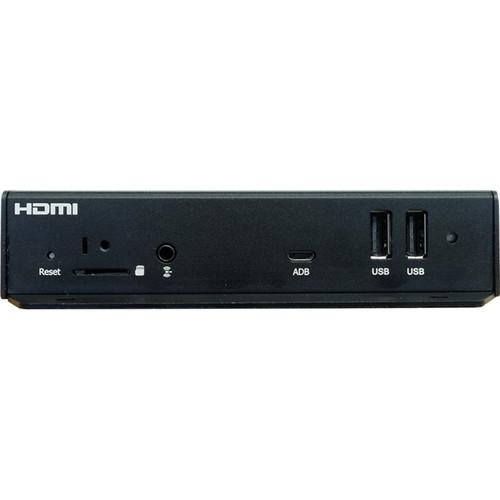

Product description The Avenview AVSignPro 1080p Digital Signage Player allows you to output 480i - 1080p video, as well as HTML5 content, to any display via an HDMI interface. Featuring internal storage, a safety feature, and more, the AVSignPro is suitable for use with menu boards, hospitality screens, campus signage, corporate communications, and other applications.
Load your content via a USB flash drive, Ethernet, or Wi-Fi, where it gets stored to 8GB of internal memory. For expanded storage, you can insert up to a 32GB microSD card and store the content there. You can display your content in various screen layouts.
Use an included (free download) management software or optional 3rd-party software to create playlists and schedules. Compatible 3rd-party applications include Scala, SignageLive, and PosterDigital, among others. The player can be controlled via the included software and an OSD.
The AVSignPro is a plug-and-play device that doesn't require setup, and it can be used 24/7 thanks to its specially designed casing and smart ventilation architecture. It's also fanless for quiet operation. Additionally, there's a self-recovery function (SRF) that ensures that in the case of a reboot or power outage the device will pick up from where it left off once everything is back to normal. - Key Features
-
- Output 480i - 1080p video, as well as HTML5 content (including CSS and JavaScript), to any display via an HDMI interface
- Enter content via a USB flash drive or over Ethernet or Wi-Fi
- 24/7 operation thanks to specially designed casing and smart ventilation architecture
- 8GB of internal storage
- Up to 32GB microSD cards supported
- Self-recovery function (SRF)
- Fanless, quiet operation
- App Lock feature to prevent unauthorized access
- AVSignPro management software included (free download) for creating playlists and schedules
- Optional 3rd-party management applications supported (Scala, SignageLive, PosterDigital, and more)
- Control via included software and OSD
- Widgets for calendar, clock, news, weather, and web page integration with the ability to add custom-created widgets
- Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
- Auto-play starts playing scheduled content automatically when powered on
- Built-in wall-mount bracket
- Mounting brackets for rack mounting included
UPC: 606825937837 In the Box Avenview AVSignPro 1080p Digital Signage Player 3 ft HDMI Cord Wi-Fi Antenna Hook-and-Loop Fastener Strip Power Adapter (12VDC, 1.5A) 2 x Mounting Brackets for Rack Mounting Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview AVSignPro 1080p Digital Signage Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview MP-1080HDM Specs | Supported Formats | 480i to 1080p (1920 x 1080) | | Supported Audio | Supports LPCM 2/5.1/7.1 channel
Dolby Digital 2/5.1 channel
DTS 2/5.1 channel (Bypass)
Dolby TrueHD
DTS-HD Master Audio | | Input | 1 x RJ45
2 x USB 2.0
1 x Micro-USB for ADB | | Output | 1 x HDMI 1.4 Type A (1080p)
1 x SPDIF (optical)
1 x 3.5 mm analog stereo audio jack | | Connectivity | 802.11 b/g/n Wi-Fi (2.4 GHz), Ethernet 10/100 BASE-T, optional 3G/4G mobile module support via USB | | Control | Included software and OSD | | Management Software | AVSignPRO software included (free download), 3rd-party solutions supported | | Storage | Built-in 8 GB eMMC (approx. 360 minutes of typical 720p video at 3 Mbps)
microSD card slot (up to 32 GB) | | Operating System | Android 4.4 (user interface not accessible for use) | | Power Input | 100-240 V, 50-60 Hz, 0.5 A (max)
12 VDC/1.5 A adapter included
3 W (max) power consumption | | Security | Password protection | | ESD Protection | Human body model -
