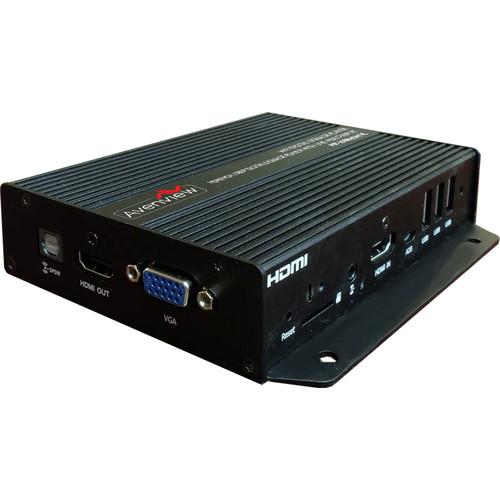

User Manual for Avenview AVSignPro 1080p Digital Signage Player with Live Video Input Click to enlarge the picture
Contents of the user manual for the Avenview AVSignPro 1080p Digital Signage Player
- Product category: Digital Signage Players Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Digital Signage Players
|
User manual for the Avenview AVSignPro 1080p Digital Signage Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview AVSignPro 1080p Digital Signage Player with Live Video Input allows you to output stored and live video content in resolutions from 480i - 1080p, as well as HTML5 content, to any display via an HDMI interface. Furthermore, output to a second display via a VGA output. Featuring internal storage, a safety feature, and more, the AVSignPro is suitable for use with menu boards, hospitality screens, campus signage, corporate communications, and other applications.
ELoad your content via a USB flash drive, Ethernet, or Wi-Fi, where it gets stored to 8GB of internal memory. For expanded storage, you can insert up to a 32GB microSD card and store the content there. At the same time, you can connect a live video source, such as a Blu-ray player, to an HDMI input, and mix this live content with your creative content in various screen layouts.
Use an included (free download) management software or optional 3rd-party software to create playlists and schedules. Compatible 3rd-party applications include Scala, SignageLive, and PosterDigital, among others. Control the player via the included software, OSD, and RS-232.
The AVSignPro is a plug-and-play device that doesn't require setup, and it can be used 24/7 thanks to its specially designed casing and smart ventilation architecture. It's also fanless for quiet operation. Additionally, there's a self-recovery function (SRF) that ensures that in the case of a reboot or power outage the device will pick up from where it left off once everything is back to normal. - Key Features
-
- Mix created and live video content in 480i to 1080p resolution, plus HTML5 content (including CSS and JavaScript), to any display via an HDMI interface
- Enter created content via a USB flash drive, Ethernet, or Wi-Fi
- HDMI input for live video sources, such as Blu-ray players
- VGA output for second display
- 24/7 operation thanks to specially designed casing and smart ventilation architecture
- 8GB of internal storage
- Up to 32GB microSD cards supported
- Self-recovery function (SRF)
- Fanless, quiet operation
- App Lock feature to prevent unauthorized access
- AVSignPro management software included (free download) for creating playlists and schedules
- Optional 3rd-party management applications supported (Scala, SignageLive, PosterDigital, and more)
- Control via included software, OSD, and RS-232
- Widgets for calendar, clock, news, weather, and web page integration with the ability to add custom-created widgets
- Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
- Auto-play starts playing scheduled content automatically when powered on
- Built-in wall-mount bracket
- Mounting brackets for rack mounting included
UPC: 606825938049 In the Box Avenview AVSignPro 1080p Digital Signage Player with Live Video Input 3 ft HDMI Cord Wi-Fi Antenna Hook-and-Loop Fastener Strip Power Adapter (12VDC, 1.5A) 2 x Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview AVSignPro 1080p Digital Signage Player with Live Video Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview MP-1080HDMVL Specs | HDMI Standard | HDMI 1.4 | | Supported Formats | 480i to 1080p at 60 Hz (1920 x 1080) | | Supported Audio | Supports LPCM 2/5.1/7.1 channel
Dolby Digital 2/5.1 channel
DTS 2/5.1 channel (Bypass)
Dolby TrueHD
DTS-HD Master Audio | | Input | 1 x HDMI Type-A (1080p)
1 x RJ45
3 x USB 2.0
1 x RS-232 on DB-9
1 x Micro-USB for ADB | | Output | 1 x HDMI Type-A (1080p)
1 x VGA
1 x SPDIF (optical)
1 x 3.5 mm analog stereo audio jack | | Connectivity | 802.11 b/g/n Wi-Fi (2.4 GHz), Ethernet 10/100 BASE-T, optional 3G/4G mobile module support via USB | | Control | Included software, OSD, and RS-232 | | Management Software | AVSignPRO software included (free download), 3rd-party solutions supported | | Storage | Built-in 8 GB eMMC (approx. 360 minutes of typical 720p video at 3 Mbps)
microSD card slot (up to 32 GB) | | Operating System | Android 4.4 (user interface not accessible for use) | | Power Input | 100-240 V, 50-60 Hz, 0.5 A (max)
12 VDC/1.5 A adapter included
3 W (max) power consumption | | Security | Password protection | | Certification | CE/FCC/IC | | ESD Protection | Human body model -
