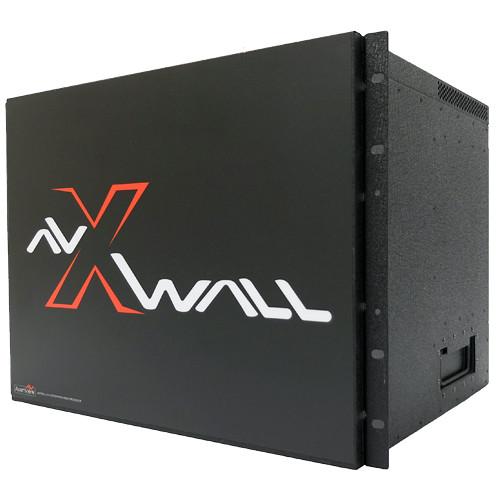

User Manual for Avenview AVXWALL Modular 32 x 18 4K Video Wall Controller Chassis Click to enlarge the picture
Contents of the user manual for the Avenview AVXWALL Modular 32 x 18
- Product category: Multiviewer Processors Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Multiviewer Processors
|
User manual for the Avenview AVXWALL Modular 32 x 18 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview AVXWALL is a modular chassis-based 4K video wall processor using an FPGA (Field Programmable Gate Array) built into the design. This model has 32 inputs and 18 outputs. Having an FPGA as its core design enables this unit to manage multiple video walls with one single processor. The user has the ability to control each video wall separately within the control software. The output resolution can also be managed within each individual screen/monitor and also for different video walls.The AVXWALL unit can accept video signal formats with resolutions up to 4K using its modular input and output board design which accepts Avenview I/O cards (available separately). I/O cards are available in CVBS (composite), YPbPr (component), VGA, DVI, HDMI, SDI, DisplayPort, HDBaseT, and optical fiber. These I/O cards offer high video bandwidth, ensuring real-time signal processing with minimal delay or frame loss. The unit is equipped with a separate DVI port for real-time monitoring to an external monitor.No overly extensive training is required to use the control software. Creative and useful features include drag and drop, image placement, zoom, and user preset buttons for recalling favorites. You can also directly preview the input source directly within the control software which is connected through TCP/IP. Touchscreen devices can be used with the optional automation Linux-based controller to manage multiple video walls and layouts with fully customizable interface. - General Features
-
- Modular input and output chassis design 720 x 480 to 4096 x 2160 with a local DVI loop-out for monitoring
- Supports CVBS, YPbPr, VGA, DVI, HDMI, SDI, DisplayPort, UTP, and optical fiber
- Full-Screen Modes: Zoom, image crop, and adjustable size and position, through the software
- Functions as a multiviewer, video screen splitter, video converter, and matrix switcher
- Single screen grid formatting 2x2, 3x3, 4x4
- Minimum single screen up to 64 screens horizontally by 32 screens vertically @ 600 x 800, 768 x 1024, 768 x 1024, 720 x 1280, 800 x 1280, 1024 x 1280, 768 x 1366, 768 x 1360, 1050 x 1400, 900 x 1440, 1200 x 1600, 1050 x 1680, 1080 x 1920, and 1200 x 1920
- Image parameters and layouts are automatically saved in Preset Mode of the device, creating easy buttons
- Background Image storage
- Management of multiple video walls
- EDID management
- Input signal preview through Control Software
- Software control through TCP/IP
- Control Pro Features
- AVX-ControlPro for Windows is an intuitive, feature-rich application that allows you to manage your HDM-AVXWALL powered video wall. Run the software locally or remotely, and use it to create, save, and/or edit layouts offline or in real time so your source content appears precisely where you want it.
- Position windows anywhere on the wall using a mouse or keyboard
- Precisely resize a window by entering the custom input size. Use four separate fields to enter custom input size, or click and drag a window corner to maintain the aspect ratio while scaling or resizing a window
- Clone an inputs source to multiple windows
- Label visible windows
- Advanced window cropping—either by graphically resizing the viewport through the UI or by entering precise cropping coordinates to achieve maximum pixel accuracy
- Intuitive Z-Order management
- Supports picture-in-picture configurations
- Text overlay function with control over text font, color, size, location, blink, and scroll speed
- Window transparency and color keying functions
- Source Control Features
-
- Renaming, cropping, rotation (90°/180°/270°), and text overlay functionality
- Source-specific hue, saturation, brightness, and contrast color correction parameters
- Multiple deinterlacing filters, including single field, bob, weave, and adaptive techniques
- Source touring for automated source switching within one or more windows in a layout
- Layout Control Features
-
- Create, save, rename, copy, and delete layouts
- Switch from layout to layout with a single click
- Lock a layout to prevent accidental changes
- Import or export a layout
- Control background color as well as window border color and width
- Create a scrolling text across the entire video wall with the marquee function
- Create a layout offline and then push it live, or edit layouts online in real time
- Add and control external applications such as VLC, VNC, Internet Explorer, PowerPoint Viewer, and Image Viewer on the video wall
- Create layout schedules to automatically switch from one layout to another
- Additional Features
-
- FPGA architecture provides excellent image processing performance
- Input Signal Preview: Input signals can be previewed in the software UI before being displayed on screens
- Card to main board plugging structure
- Multi Video Wall Control (MVWC) for up to four video walls
- Graphic cropping and signal upscaling
- High-resolution background image
- Character superimposition
- Scene Saving: Any configuring arrangement of video signal displayed on the screen wall can be saved as "scenes"
- HDCP compliant
- Redundant power supply
In the Box Avenview AVXWALL Modular 32 x 18 4K Video Wall Controller Chassis (Empty) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview AVXWALL Modular 32 x 18 4K Video Wall Controller Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview CH2-AVXWALL-22U Specs | Form Factor | 22 RU | | Inputs | Up to 32 via separate modular I/O cards
Control via Ethernet and RS-232 | | Outputs | Up to 18 via separate modular I/O cards
DVI monitor output | | System Architecture | FPGA (Field Programmable Gate Array) | | System Control | TCP/IP | | Audio Support | Yes (on compatible I/O cards) | | Supported Resolutions | WQUXGA, UHD 4K, Full HD 1080p, SD
Max Total Input Resolution: 8000 x 2400 | | Operating Humidity | 20 to 90% RH (no condensation) | | Operating Temperature | 32 top 104°F / 0 to 40°C | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
