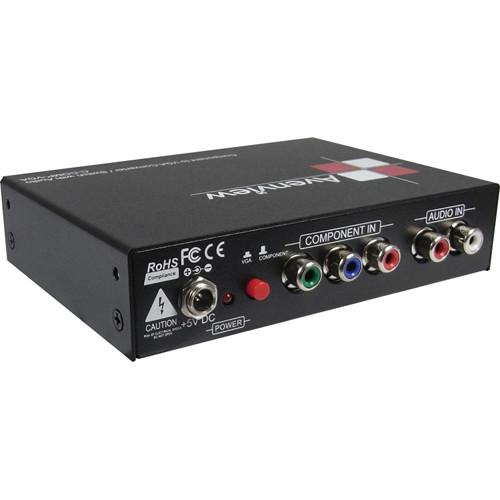

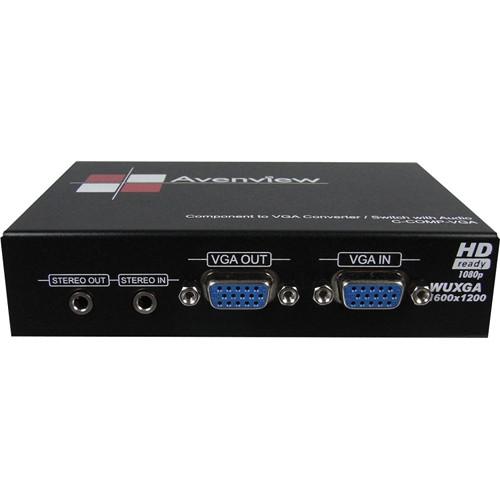

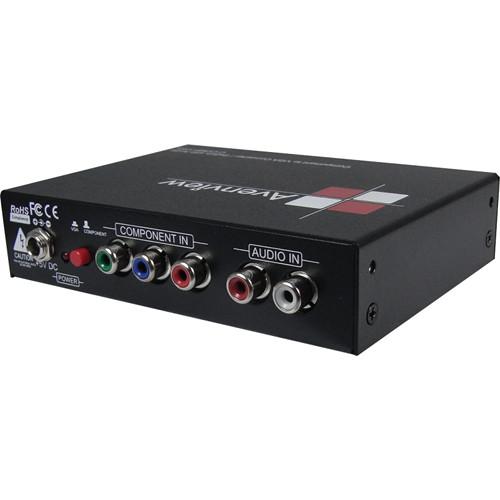

Product description Providing a single output that can either convert progressive component video to VGA or pass-through VGA signals, the Avenview C-COMP-VGA Component to VGA Converter with Audio is an easy-to-use box that lets you switch between two inputs with the touch of a button. The unit supports component signals of 480p, 576p, and 720p at 24, 30, or 60 frames per second, converting the video to VGA signals, and supporting cable runs up to 200'.
Audio is supported along with the component video via the L/R pair of RCA jacks, or 3.5mm stereo mini-jack allows you to input audio to the device when using VGA as your source. Output is always via the VGA output and audio output is via a dedicated stereo mini-jack. A red LED indicator lights up to indicate power. The unit features a locking power connector and requires 5 VDC, which is supplied by the included power adapter. - No computer control, drivers, or control device needed. The converter works out of the box.
- Automatic conversion between progressive component video and VGA, does not support interlaced video.
- The unit will pass interlaced VGA signals as interlaced, which some monitors will not support.
- Supports PC video display resolutions of up to UXGA (1600 x 1200 @ 75 Hz).
- Component input supports 480p, 576p, and 720p at 24, 30, or 60 fps.
- Buffered VGA output allows for a cable run of the output VGA signal up to 200'.
- Audio signals are input via a L/R stereo pair of RCA jacks when composite is chosen as the input source, or via a 3.5mm stereo mini-jack when VGA is selected as the input source. Audio is output via a dedicated 3.5mm stereo mini-jack connector.
UPC: 606825936212 In the Box Avenview C-COMP-VGA Component to VGA Converter with Audio 5 VDC, 2 A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview C-COMP-VGA Component to VGA Converter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview C-COMP-VGA Specs | Video Input Signal | Component
Resolution:720p/576p/480p
Frame Rate: 24/30/60 fps
VGA
Up to 1600 x 1200 @ 75 Hz | | Video Bandwidth | VGA: 400 MHz
Component: 70 MHz | | Input | VGA: 1 x 15-pin DE-15
Component: 3 x RCA jacks
Audio: 2 x RCA jacks (1 x stereo L/R pair)
Audio: 1 x 3.5 mm stereo mini-jack | | Output Connectors | VGA: 1 x 15-pin DE-15
Audio: 1 x 3.5 mm stereo mini-jack | | Cable Run | Output
Max: 200' | | Power Supply | 5 VDC, 2 A adapter | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions (L x W x H) | 5.0 x 3.7 x 1.0" /127.0 x 94.0 x 25.4 mm | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.8 x 6.9 x 3.4" |
