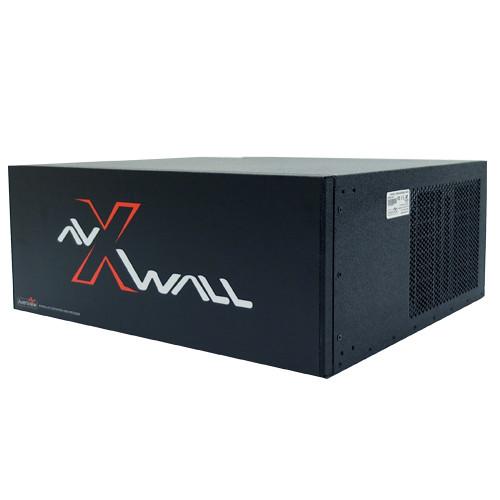

User Manual for Avenview CH2-AVXWALL-4U Videowall Processor Chassis Click to enlarge the picture
Contents of the user manual for the Avenview CH2-AVXWALL-4U Videowall Processor Chassis
- Product category: Multiviewer Accessories Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Multiviewer Accessories
|
User manual for the Avenview CH2-AVXWALL-4U Videowall Processor Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview CH2-AVXWALL-4U is a 4U, FPGA Videowall Processor Chassis featuring 6 input card slots and 2 output card slots. This model allows the output of 4 windows per channel, so from a 4-port card, you can have 16 windows displayed on one screen. The chassis is Windows based, has video processors built into it, and offers EDID management via the included control software (Windows compatible). It also supports 4 channels of dual-link input.
I/O cards are available in CVBS, YPbPr, VGA, DVI, HDMI, SDI, DisplayPort, HDBaseT, and optical fiber. Below is a list of compatible cards, which support SD to 4K signals and offer very high bandwidth, ensuring real-time processing with no delay or frame loss. You can also request 1/2 cards of most of these directly from Avenview. In addition, the chassis comes equipped with an RJ45 port and a DVI port for real-time local monitoring at up to 60 fps with no frame loss.
A swappable power supply, power cord, and rack mounting kit are also included. - Supported Input Cards
-
- DVI Input Card—4 channels (DVI AVXWALL-4IN)
- HDMI 1.4 Input Card—2 channels single-link input (HDM4K-AVXWALL-2IN)
- 5G Optical Fiber Input Card—4 channels single-core optical input (F5G-AVXWALL-4IN)
- VGA Input Card—4 channels (VGA-AVXWALL-4IN)
- CVBS Input Card—16 channels (CVBS-AVXWALL-16IN)
- CVBS-HD Input Card—4 channels (CVBSHD-AVXWALL-4IN)
- Dual-Link DVI Input Card—2 channels dual-link input (DVIDL-AVXWALL-2IN)
- HDBaseT Input Card—4 channels twisted-pair (HBT-AVXWALL-4IN)
- HDMI 1.3 Input Card—4 channels (HDM-AVXWALL-4IN)
- SDI Input Card—4 channels 3G-SDI input/loop out (SDI-AVXWALL-4IN)
- YPbPr Input Card—4 channels (COMP-AVXWALL-4IN)
- 2.5G Optical Fiber Input Card—4 channels single-mode input (F25G-AVXWALL-4IN)
- DisplayPort Input Card—2 channels (DP-AVXWALL-2IN)
- IP Decode Card—2 RJ45 ports (OPT-AVXWALL-IPD-CARD)
- 8 x 8 Audio Switching Card—8 x 8 channels (AUD-AVXWALL-8x8)
- 16 x 16 Audio Switching Card—16 x 16 channels (AUD-AVXWALL-16x16)
- MC Card (Multi Control Card)—allows multiple video wall control (MC-AVXWALL-CTLCARD)
- Supported Output Cards
-
- DVI Output Card—4 channels (DVI-AVXWALL-4OUT)
- HDMI Output Card—4 channels (HDM-AVXWALL-4OUT)
- HDBaseT Output Card—4 channels twisted pair (HBT-AVXWALL-4OUT)
- SDI Output Card—4 channels 3G-SDI output/signal backup (SDI-AVXWALL-4OUT)
- 2.5G Optical Fiber Output Card—4 channels (F25G-AVXWALL-4OUT)
- 5G Optical Fiber Output Card—4 channels single core output (F5G-AVXWALL-4OUT)
- HDMI 1.4 Output Card—2 channels output/signal back-up (HDM4K-AVXWALL-2OUT)
- Dual-link DVI Output Card—2 channels (DVIDL-AVXWALL-2OUT)
- Preview Signal Card—max 64 channels (PREVIEW-AVXWALL-CH64)
- Preview Signal Card—max 128 channels (PREVIEW-AVXWALL-CH128)
In the Box Avenview CH2-AVXWALL-4U Videowall Processor Chassis Rack-Mount Kit Swappable Power Supply UL AC Power Cord Installation Software CD (Windows) User Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview CH2-AVXWALL-4U Videowall Processor Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview CH2-AVXWALL-4U Specs | Input Card Slots | 6 | | Output Card Slots | 2 | | Frame Size | 4 U | | Local Monitoring | 1 x DVI-I output | | RJ-45 Connector | WE/SS 8P8C with 2 LED indicators | | System Control | TCP/IP | | ESD Protection | Human body model ±15 kV (air gap discharge) and ±8 kV (contact discharge) | | Power Supply | 100 – 240 VAC | | Power Consumption | 250 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions | 17.3 x 15 x 6.9" (44 x 38 x 17.5 cm) | | Weight | 22.6 lb (10.25 kg) |
