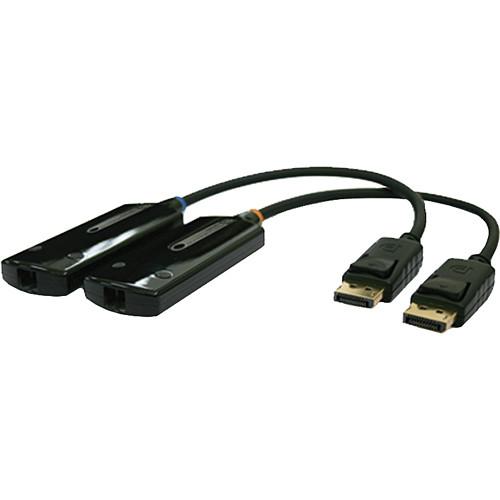

User Manual for Avenview DisplayPort Extender over Single SC Fiber Optic Cable Click to enlarge the picture
Contents of the user manual for the Avenview DisplayPort Extender over Single SC
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview DisplayPort Extender over Single SC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview FO-DP-300-EMI, DisplayPort Extender over Single SC Fiber Optic is designed to let a digital flat panel display extend up to 3250 feet (1000 meters) away from the host using DisplayPort-1.1a standard optical transmission technology. It's configured in a small package and transmits up to four videos and one low-speed lane, while simultaneously receiving one low-speed signal, all on one multimode fiber cable. - High speed and long distance transmission by optical system
- Compatible with DisplayPort standard v1.1a
- Main Link video signal / AUX data and Hot Plug Detection signal is transmitted by 1 channel multi-mode optical fiber
- DPCD compliant (Does not support HDCP mode)
UPC: 606825934676 Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview DisplayPort Extender over Single SC Fiber Optic Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DP-300-EMI Specs | Input Signal | DisplayPort Signal v1.1a | | Output Signal | DisplayPort Signal v1.1a | | Video Bandwidth | 3.5Gbps / Channel | | Supported Resolution and Distance | WQXGA 2560 x 1600 @ 3250' (1000 m) | | Optical Converter | Transmitter:
850nm, 4Ch Transmit OSA
911nm, 1Ch VCSEL
980nm, 1Ch PIN P/D Diode
Receiver:
850nm, 4Ch Receive OSA
980nm, 1Ch VCSEL
911nm, 1Ch PIN P/D Diode | | Electrical Connector | 20 Pin DisplayPort Plug | | Optical Connector | 1 SC Connector | | Fiber type | 50/125 µm Multi-mode glass fiber | | Dimensions (L x W x H) | 2.91 x 1.30 x 0.45" | | Power Supply | 5V 2A DC | | Power Consumption | 1.5W (max) | | Operating Temperature | 32 ~ 104˚F (0 ~ 40˚C) | | Storage Temperature | -4 ~ 140˚F (-20 ~ 60˚C) | | Relative Humidity | 20 ~ 90% RH (no condensation) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 2.91 x 1.3 x 0.4" |
