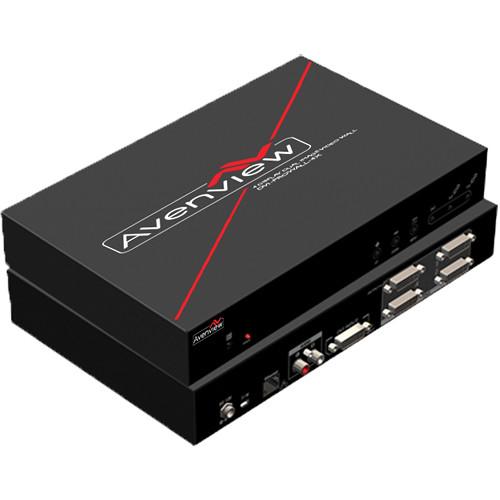

Product description The Avenview DVI-PROWALL-4X 4-Display Video Wall Processor is designed to expand one video input to 4 displays in different layouts in real time. Real time processing is made possible through digital transmission processing chips for displaying content on your flat panel displays or projectors. Bundled with its own control software, the user can simply configure different layouts such as 1x1, 1x3, 1x4, 2x2, and mosaic. The DVI-PROWALL-4X can accept both DVI and HDMI sources, and the embedded scaler converts signals from the DVI or HDMI source to match the native resolution of the monitors, flat panel displays, and projectors connected to the 4 outputs connectors. The output resolution can be selected for each display up to PC resolutions WUXGA (1920x1200). The DVI-PROWALL-4X sends the input source video through the DVI/HDMI interface to the connected displays based on the physical layout and configured in the software. Recommended applications for the DVI-PROWALL-4X include retail digital signage, commercial applications and broadcasting, education, and surveillance systems. Features - Four DVI/HDMI outputs from 640x480 to 1920x1200
- Supports HDMI/DVI input from 640x480 to 1920x1200
- Supports video resolution up to Full HD 1080p
- Supports PC resolution up to WUXGA
- Image parameters and layouts saved in computers can be loaded for later use
- Firmware upgradable for new features and technology enhancements
- Supports IR remote control
- Software control through USB and Ethernet
- Resize, position, zoom output video
- User-selectable output settings, up to 1920x1200
- Each DVI/HDMI output has an independent controllable display area
- Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
- Each output can support OSD control for edge correction
UPC: 606825934768 In the Box Avenview DVI-PROWALL-4X 4-Display Videowall Processor IR Remote 12V Power Adapter Power Cord Rack Ear Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview DVI-PROWALL-4X 4-Display Videowall Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview DVI-PROWALL-4X Specs | Inputs | 1 x DVI-D
1 x USB
1 x RJ45 | | Outputs | 4 x DVI-D
1 x L/R RCA Stereo | | Video Format Support | HDMI
DVI | | Video Bandwidth | DVI [Single-link 4.95Gbps]
HDMI [2.25G to 6.75Gbps] | | Resolution Support | Up to 1920x1200@60 / 1600x1200@60 | | HDCP Compliant | Yes | | Audio Support | Only when using HDMI source device | | Control | IR remote control
Ethernet
USB (virtual com)
Front Panel | | Input TMDS signal | 1.2 Volts [peak-to-peak] | | ESD Protection | Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge] | | PCB Stack-up | 8-layer board [impedance control - differential 100 ohms; single 50 ohms] | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20~90% [no condensation] | | Power Supply | 12 VDC 5A | | Power Consumption | 7.6 W | | Dimensions | 11.3 x 7 x 1.7" / 287 x 180 x 42 mm | | Weight | 3.2 lb / 1.5 kg | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 19.5 x 9.0 x 2.8" |
