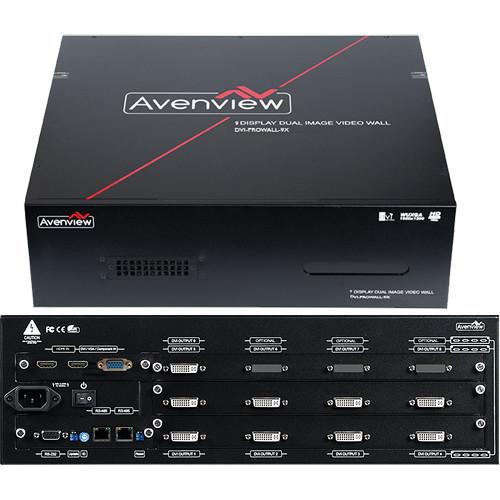

User Manual for Avenview DVI-PROWALL-9X 9-Display Videowall Processor Click to enlarge the picture
Contents of the user manual for the Avenview DVI-PROWALL-9X 9-Display Videowall Processor
- Product category: Multiviewer Processors Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Multiviewer Processors
|
User manual for the Avenview DVI-PROWALL-9X 9-Display Videowall Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The DVI-PROWALL-9X 9-Display Videowall Processor is designed to expand one video input to up to 9 displays in different layouts in real time. Real-time processing is made possible through digital transmission processing chips for displaying content on your flat panel displays or projectors. The unit can accommodate resolutions of up to 4K (3840 x 2160) at 30 fps through one of its HDMI ports. In its standard configuration, this unit can support up to nine DVI or HDMI outputs, though it can be upgraded with an optional card to enable output to 12 displays. The DVI-PROWALL-9X allows you to input 2 DVI/HDMI - the first HDMI port supports up to 4k, the second HDMI port supports up to 1080p, and the VGA/Component port supports up to WUXGA (1920x1200). Features - 9 DVI outputs from 640x480 to 1920x1200
- Supports one HDMI input resolution up to 4K, other inputs up to WUXGA
- Supports VGA and Component input format from 640x480 to 1920x1200
- PIP, side-by-side (PAP), full-screen modes and adjustable size and position through software
- Resize, position, flip, zoom output video
- Each DVI output has an independent controllable display area
- User-selectable output settings, up to 1920x1200
- Software control through RS-232 and Ethernet
- PCIE-interface add-on card design
- Perfectly as a video screen splitter, a video converter, and a video switcher
UPC: 606825934782 In the Box Avenview DVI-PROWALL-9X 9-Display Videowall Processor IR Remote 2 x DVI to HDMI Adapter VGA to Component Breakout Cable Power Cord Rack Ear Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview DVI-PROWALL-9X 9-Display Videowall Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview DVI-PROWALL-9X Specs | Inputs | 2 x DVI/HDMI
1 x VGA
1 x Component
1 x RS232
1 x RJ45 | | Outputs | 9 x DVI-D/HDMI | | Video Format Support | HDMI
DVI
VGA
Component | | Video Bandwidth | DVI: Single-link 4.95 Gbps
HDMI: 2.25 to 6.75 Gbps
Component: 30 MHz | | Resolution Support | Up to 3840x2160p30 | | HDCP Compliant | Yes | | Control | Ethernet
RS232 | | Input TMDS signal | 1.2 Volts [peak-to-peak] | | ESD Protection | Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge] | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20~90% [no condensation] | | Power Supply | 100-240 VAC | | Power Consumption | 60 W (max) | | Dimensions | 17.25 x 17.25 x 3.5" / 438 x 438 x 89 mm | | Weight | 30 lb / 13.6 kg | | | | Package Weight | 24.35 lb | | Box Dimensions (LxWxH) | 22.1 x 18.6 x 10.4" |
