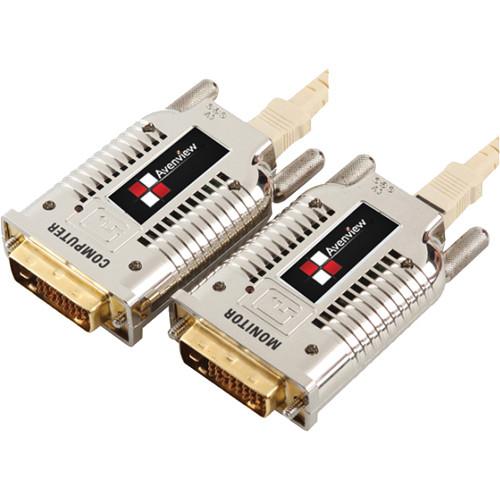

User Manual for Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI Shielding Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-1000M-EMI DVI Extender over Fiber
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
|
User manual for the Avenview FO-DVI-1000M-EMI DVI Extender over Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI Shielding lets you extend digital flat panel signals up to 1650’ (500 m) at 1920 x 1200 and up to 3300’ (1000 m) at 1280 x 1024 away from the host via TMDS digital signal and EDID transmission with only 1 fiber.
FO-DVI-1000M-EMI consists of both the receiver and transmitter. This is a solution for applications where the signal needs to be transmitted over a long distance. - High-speed and long distance transmission by optical system
- SC type multi-mode fiber (1 fiber)
- Fully compatible with DVI standard
- Corresponding to TMDS signal (single link)
- R, G, B, clock signal is transmitted by 1 multi-mode optical fiber
- Self detecting function for EDID information
UPC: 606825934683 In the Box Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI Shielding Transmitter Receiver Power Adapter (5 VDC, 2 A) User Manual 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI Shielding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DVI-1000M-EMI Specs | Frequency Bandwidth | 1.65 Gbps (single link) | | Connector | DVI 24-pin plug and SC connector | | Power Consumption | Transmitter & Receiver: Maximum 1 W | | Supported Resolution & Distance | WUXGA 1920 x 1200 @ 1650' (500 m)
UXGA 1600 x 1200 @ 2300' (700 m)
SXGA 1280 x 1024 @ 3300' (1000 m) | | Optical Source | 850 nm VCSEL | | Fiber type | 50/125 or 62.5/125 | | Converter | O/E: PIN photo diode | | Operating Temperature | 32 to 125.6˚F (0 to 50˚C) | | Storage Temperature | -4 to 158˚F (-20 to 70˚C) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.5 x 5.75 x 2.5" |
