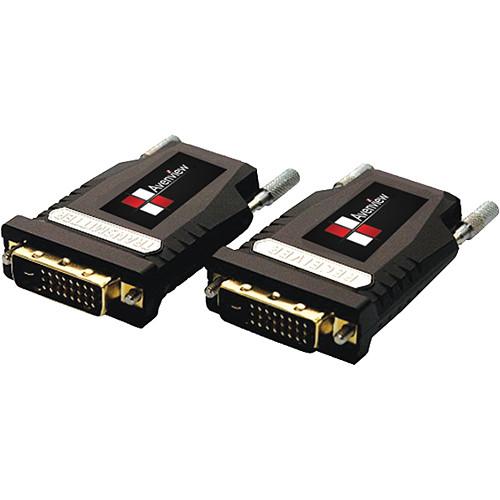

User Manual for Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
|
User manual for the Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber is designed to extend digital flat-panel signals up to 1,650’ (500 m) at 1920 x 1200 and 3,300’ (1,000 m) at 1280 x 1024 away from the host by TMDS digital signal and EDID transmission by using only 1 fiber. - High speed and long distance transmission by SC type multimode 1 fiber
- R,G,B, and Clock signals are transmitted by 1 multimode optical fiber
- EDID data is transmitted by 1 multimode optical fiber
- Supports 12 bit deep color
- Standard DVI plug and SC fiber connector
- Supports up to WUXGA (1920 x 1200) resolution
- Automatic Power switch included for optional external power supply
UPC: 606825934706 In the Box Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber 1x FO-DVI-1000M-EMIX Transmitter 1x FO-DVI-1000M-EMIX Receiver 1x Power Adapter 1x User Manual 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-1000M-EMIX DVI Extender over Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DVI-1000M-EMIX Specs | DVI Compliance | DVI 1.0 | | HDCP Compliance | HDCP 1.1 | | Video Bandwidth | 2.25 Gbps | | Supported Resolution & Distance | WUXGA 1920 x 1200 @ 1,650' (500 m)
UXGA 1600 x 1200 @ 2,300' (700 m)
SXGA 1280 x 1024 @ 3,300' (1,000 m) | | Optical Converter | For FO-DVI-1000M-EMIX Transmitter:
4 Channel 850 nm Transmit OSA
911 nm, 1 Channel VCSEL
980 nm, 1 Channel PIN P/D Diode
FO-DVI-1000M-EMIX Receiver:
4 Channel 850 nm Transmit OSA
911 nm, 1 Channel VCSEL
980 nm, 1 Channel PIN P/D Diode | | DVI Connector Type | 24 Pin DVI-D Plug | | Optical Connector | 1 SC Connector | | Dimensions | 2.4 x 1.5 x 0.6" (60.96 x 38.1 x 15.24 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.5 x 5.75 x 2.5" |
