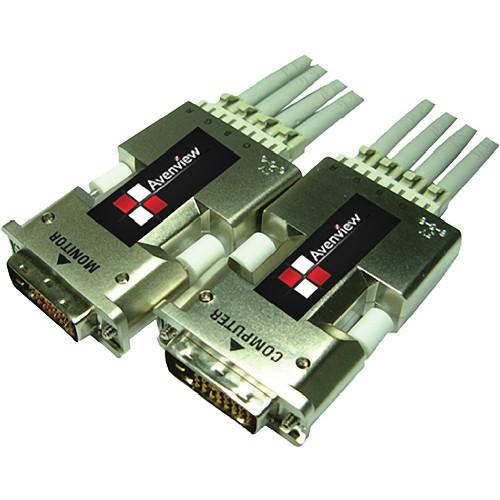

User Manual for Avenview FO-DVI-1080LC-SET DVI Extender over Fiber Optic DVI Extension System Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-1080LC-SET DVI Extender over Fiber
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
User manual for the Avenview FO-DVI-1080LC-SET DVI Extender over Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
Product description The Avenview FO-DVI-1080LC-SET DVI Extender over Fiber Optic DVI Extension System is designed to extend digital flat panel display signals over 1,650’ (500 m) away from the host based on DVI standard by optical transmission technology.
Its small package, pseudo DDC detect function, and self-EDID detect function to use standard LC fiber connector allows users to install and utilize the device conveniently.
- Long distance transmission of digital graphic signal corresponding to TMDS
- Transmission distance over 1,640' (500 m) by multi-mode glass fiber
- R,G,B, clock signal is transmitted separately by multi-mode optical fiber
- Pseudo-DDC detection function for EDID information
- Self-detecting function for EDID information
UPC: 606825934713 In the Box Avenview FO-DVI-1080LC-SET DVI Extender over Fiber Optic DVI Extension System 1x FO-DVI-1080LC Transmitter 1x FO-DVI-1080LC Receiver 1x Power Adapter (5 VDC) 1x User Manual 3-Year Warranty on Parts & Labor Table of Contents
- Automatic power switch for transmitter
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-1080LC-SET DVI Extender over Fiber Optic DVI Extension System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Avenview FO-DVI-1080LC-SET Specs
| Input Signal || TMDS signal (DVI 1.0 Standard) |
| Output Signal || TMDS signal (DVI 1.0 Standard) |
| Video Bandwidth || 1.65 Gbps |
| Supported Resolution & Distance || SXGA 1280 x 1024 @ 2,300' (700 m) |
UXGA 1600 x 1200 @ 1,650' (500 m)
WUXGA 1920 x 1200 @ 300' (100 m)
| Optical Converter || FO-DVI-1080LC Transmitter: 4-channel 850 nm multi-mode VCSEL |
FO-DVI-1080LC Receiver: 4-channel GaAs PIN photo diode
| DVI Connector Type || 24-pin DVI-D plug |
| Optical Connector || 1x 4 LC connector |
| Power Supply || -0.3 to 5.5 V |
| Dimensions || 2.8 x 1.6 x 0.6" (71.12 x 40.64 x 15.24 mm) |
| Package Weight || 0.7 lb |
| Box Dimensions (LxWxH) || 6.6 x 5.7 x 1.9" |
