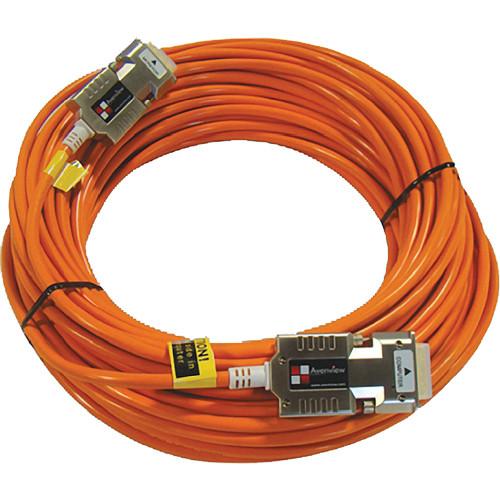

User Manual for Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-25MM Fiber Optical Cable System
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
|
User manual for the Avenview FO-DVI-25MM Fiber Optical Cable System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender (82’/25 m) allows you to connect a single-link digital DVI display up to 330’ (100 m) from a computer with no loss of signal, delivering crystal clear digital images almost instantly.
The cable system is an integrated DVI-D cable solution, which features fiber optic components, built-in DDC signals, and DVI connectors. The DVI-D fiber optical cables are ideal for a wide range of applications such as video wall systems, large LED sign boards, medical imaging equipment, airplane on-board video systems, home theaters, TV broadcast stations, auditoriums, and conference room video equipment. - System with only optical fiber cables, without DDC corresponding to TMDS signal
- High-speed and long distance transmission by optical fiber
- Fully compatible with the DVI standard of DDWG
- R, G, B, clock signal transmitted via optical fiber
- Supports up to WUXGA (1920 x 1200) resolution
- DDC signal and 5 V power line is transmitted via a copper line
- No EMI characteristics, suitable for medical instruments and airplanes
In the Box Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender (82'/25 m) User Manual 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DVI-25-MM Specs | Input Signal | TMDS signal (DVI 1.0 standard) | | Output Signal | TMDS signal (DVI 1.0 standard) | | Video Bandwidth | 1.65 Gbps | | Supported Resolution & Distance | Up to WUXGA 1920 x 1200 @ 330' (100 m) | | Optical Converter | FO-DVI-XX-MM Transmitter: 4-channel 850 nm multi-mode VCSEL
FO-DVI-XX-MM Receiver: 4-channel GaAs PIN photo diode | | DVI Connector Type | 24-pin DVI-D plug | | Length | Cable: 82' (25 m) | | Dimensions | Extender: 2.8 x 1.6 x 0.6" (71.12 x 40.64 x 15.24 mm) | | Weight | Approximately 4.5 lb (2.04 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.5 x 12.5 x 4.0" |
