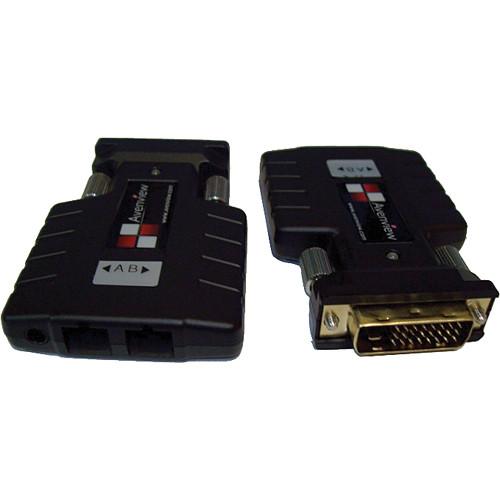

User Manual for Avenview FO-DVI-DL-1000M Dual Link DVI Extender over 2 SC Fiber Optic Cable Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-DL-1000M Dual Link DVI Extender
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
|
User manual for the Avenview FO-DVI-DL-1000M Dual Link DVI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview FO-DVI-DL-1000M Dual Link DVI Extender over 2 SC Fiber Optic Cable is designed to extend dual-link digital signals up to 1,000’ (300 m). - High speed and long distance transmission
- Uses 2-strand multimode SC type multimode fiber optic cable
- TMDS video signal and EDID data is transmitted by the optical fiber
- Supports up to Dual Link WQXGA (2560 x 1600) resolution and WUXGA (1920 x 1200) single link
- Extends 2560 x 1600 dual link or 1920 x 1200 single link video signals up to 1,000' (300 m)
- DVI specification 1.0 compliant
- Supports HDCP-compliant devices with HDCP Rev 1.1 specifications
UPC: 606825934720 In the Box Avenview FO-DVI-DL-1000M Dual Link DVI Extender over 2 SC Fiber Optic Cable 1 x FO-DVI-DL-1000M Transmitter 1 x FO-DVI-DL-1000M Receiver 1 x Power Adapter 1 x User's Manual 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-DL-1000M Dual Link DVI Extender over 2 SC Fiber Optic Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview FO-DVI-DL-1000M Specs | Input Signal | TMDS Signal (DVI 1.0 standard) | | Output Signal | TMDS Signal (DVI 1.0 standard) | | Video Bandwidth | 1.65 Gbps (single link) | | Supported Resolution & Distance | Single link: WUXGA 1920 x 1200 @ 1,000' (300 m) Dual link: WQXGA 2560 x 1600 @ 1,000' (300 m) | | Optical Converter | FO-DVI-DL-1000M Transmitter:
850 nm, 7 channel Transmit OSA
911 nm, 1 channel VCSEL
980 nm, 1 channel PIN P/D diode
FO-DVI-DL-1000M Receiver:
850 nm, 7 channel Receive OSA
980 nm, 1 channel VCSEL
911 nm, 1 channel PIN P/D Diode | | DVI Connector Type | 24 pin DVI-D plug | | Optical Connector | 2 SC connector | | Fiber type | 50/125 µm multimode glass fiber | | | | Operating Temperature | 32 to 104˚F (0 to 50˚C) | | Storage Temperature | -4 to 140˚F (-20 to 70˚C) | | Relative Humidity | 10 to 80% RH (no condensation) | | Dimensions (L x W x H) | 2.97 x 1.97 x 0.6" (75.43 x 50.03 x 15.24 mm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.75 x 5.25 x 2.25" |
