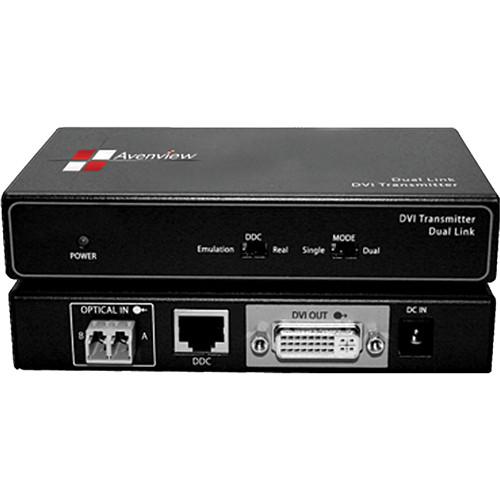

User Manual for Avenview FO-DVI-DL-330X Dual Link DVI Extender over 2 LC Fiber Optic Cable Click to enlarge the picture
Contents of the user manual for the Avenview FO-DVI-DL-330X Dual Link DVI Extender
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
User manual for the Avenview FO-DVI-DL-330X Dual Link DVI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
Product description The Avenview FO-DVI-DL-330X Dual Link DVI Extender over 2 LC Fiber Optic Cable allows you to extend dual-link digital signals up to 330’ (100 m).
- High speed and long distance transmission
- Uses 2-strand multimode LC fiber optic cable
- Supports both single and dual links by selectable function switch
- Supports up to dual Link WQXGA (2560 x 1600) resolution and WUXGA (1920 x 1200) single link
- Self-detecting function for EDID
- Real Mode: Uses 1 CAT5 cable for DDC
UPC: 606825934737 In the Box Avenview FO-DVI-DL-330X Dual Link DVI Extender over 2 LC Fiber Optic Cable 1x FO-DVI-DL-330X Transmitter 1x FO-DVI-DL-330X Receiver 1x Power Adapter 1x User's Manual 3-Year Warranty on Parts & Labor Table of Contents
- Emulation: Pseudo DDC detection function for EDID information (2560 x 1600)
Upload User Manual
Have you got an user manual for the Avenview FO-DVI-DL-330X Dual Link DVI Extender over 2 LC Fiber Optic Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Avenview FO-DVI-DL-330X Specs
| Input Signal || TMDS signal (DVI 1.0 standard) |
| Output Signal || TMDS signal (DVI 1.0 standard) |
| Video Bandwidth || 1.65 Gbps (single link) |
| Supported Resolution & Distance || Single link: WUXGA 1920 x 1200 @ 330' (100 m) Dual link: WQXGA 2560 x 1600 @ 330' (100 m) |
| Optical Converter || For FO-DVI-DL-330X Transmitter: 2 channel 850 nm multimode VCSEL |
For FO-DVI-DL-330X Receiver: 2 channel GaAs PIN photo diode
| DVI Connector Type || 24 pin DVI-D plug |
| Optical Connector || 2 LC connector |
| DDC || Link Connector: RJ45 |
| Fiber type || 62.5/125 µm multi-mode glass fiber |
| Power Supply || 5 VDC / 2 A |
| Power Consumption || 1.5 W (maximum) |
| Operating Temperature || 32 to 104˚F (0 to 40˚C) |
| Storage Temperature || -4 to 140˚F (-20 to 60˚C) |
| Relative Humidity || 20 to 90% RH (no condensation) |
| Dimensions (L x W x H) || 3.4 x 5.3 x 1" (86.36 x 134.62 x 25.4 mm) |
| Package Weight || 1.4 lb |
| Box Dimensions (LxWxH) || 9.75 x 7.5 x 2.75" |
