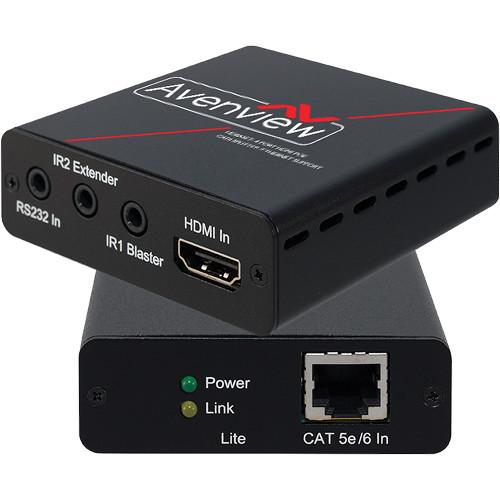

User Manual for Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5 6 7 Receiver with 4K2K, 3D, Ethernet, & Bi-Directional IR Support Click to enlarge the picture
Contents of the user manual for the Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5
- Product category: HDMI Signal Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview HDMI Signal Extenders
|
User manual for the Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5/6/7 Receiver, when used with a compatible transmitter, supports the extension of high-definition (HD) and Ultra HD video and multi-channel audio formats to any HD monitor. HD video signal transmission up to 328' (100m) is supported when a CAT5e/6 cable is used, while Ultra HD video signals are extended up to 229.6' (70m) and 328' (100m) when CAT5e/6 and CAT6A/7 cables, respectively, are used. It also extends bi-directional data signals ranging from 30 to 50 kHz using a CAT5/6 cable. The HBT-C6PLT-R unit also allows bi-directional IR control of the source connected to the unit from the user's IR remote control at the monitor side. This device also supports PoE from compatible transmitters (Power over the CATx cable to the receiver). Note: Cables and transmitter not included - Video Signals: 4K x 2K @ 30 (Ultra HD), 3D, Deep Color, and Full HD 1080p 36-bit color depth
- Audio Signals: Lossless multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD)
- Data Signals: Bi-directional IR signals 30 to 50 kHz over a CAT5/6 cable
- Input: HDMI with 3D and 4Kx2K, 1080p, HDCP, and DVI compliant
- Video Bandwidth: From 300 MHz / 9 Gb/s
- PC Resolutions: Up to VGA to WUXGA
- HD Resolutions: Up to 4K x 2K (3840 x 2160 @ 30 Hz and 4096 x 2160 @ 24 Hz) and 1080p (1920 x 1080 @ 60 Hz)
- Audio Supported: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Audio Transmission: (32 to 192 kHz sample rate)
- Distance: 229.6' (70m; Ultra HD video signals) and 328' (100m; HD video signals) using a CAT5e/6 cable and 328' (100m; Ultra HD video signals) using a CAT6a/7 cable 1
Please Note: Cables not included close - Uncompressed Video: 1080p, 60Hz, 36-bit
- 3D Support: Follow by Display / TV's EDID
UPC: 606825934195 In the Box Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5/6/7 Receiver with 4K2K, 3D, Ethernet, & Bi-Directional IR Support IR Blaster IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HBT-C6PLT-R HDBaseT Lite PoE CAT5 6 7 Receiver with 4K2K, 3D, Ethernet, & Bi-Directional IR Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6PLT-R Specs | Device | HDBaseT HDMI Receiver | | HDMI Compliance | YES HDBaseT | | HDCP | Yes | | Video Bandwidth | Single-link 300 MHz (9 Gb/s) | | Supported Resolutions | 480i / 480p / 720p / 1080i / 1080p60
4K @ 30 up to Ultra HD (3840 x 2160 @ 24/25/30 Hz)
4K x 2K (4096 x 2160 @ 24 Hz) | | CEC Compliant | Allows CEC bypass | | Supported Video | Up to 1080p, 60 Hz, 36 bits, 3D (Data rates lower than 5.3 Gb/s or below 225 MHz TMDS clock) with a CAT5e/6 cable
Range: 328' (100 m) (Pixel Clock Rate: ≤225 MHz / Video Data Rate: ≤5.3 Gb/s HD Video)
4K x 2K, 30 Hz Video Formats with a CAT5e/6 cable
Range: 229.6' (70.0 m) (Pixel Clock Rate: >225 MHz; Video Data Rate: >5.3 Gb/s Ultra HD Video)
4K x 2K, 30 Hz Video Formats with a CAT6A/7 cable
Range: 328' (100 m) (Pixel Clock Rate: >225 MHz; Video Data Rate: >5.3 Gb/s Ultra HD Video) | | Audio Support | LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp, TTL | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge) and ±4 kV (contact discharge) | | Input | 1 x 3.5 mm IR Extender
1 x CAT5e/6/7 | | Output | 1 x RS-232
1 x 3.5 mm IR
1 x HDMI | | HDMI Connector | Type A (19-pin female) | | LEDs | Green and yellow LEDs | | IR Frequency | 30 to 50 kHz | | Power Supply | 24 VDC / 1.25 A (US/EU standards, CE/FCC/UL certified) | | Power Consumption | 6 W (maximum) | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Storage Temperature | -4 to 140˚F (-20 to 60˚C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions (L x W x H) | 2.8 x 2.9 x 1.0" (7.1 x 7.3 x 2.5 cm) | | Weight | 0.30 lb (0.14 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 2.4" |
