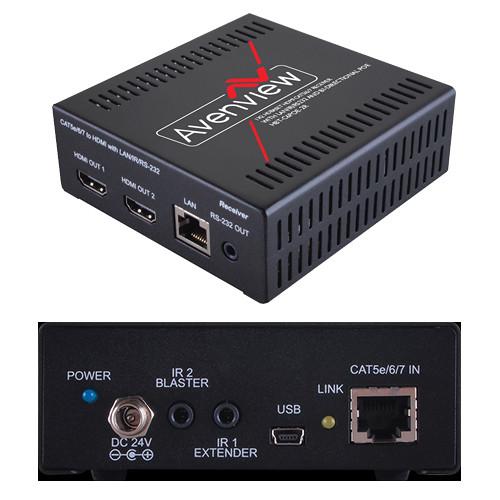

User Manual for Avenview HBT-C6POE-2R HDBaseT PoE Cat5 6 7 Receiver with Two HDMI Outputs Click to enlarge the picture
Contents of the user manual for the Avenview HBT-C6POE-2R HDBaseT PoE Cat5 6
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview HBT-C6POE-2R HDBaseT PoE Cat5 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description When used with a compatible transmitter, the Avenview HBT-C6POE-2R HDBaseT PoE Cat5/6/7 Receiver extends high definition video and multi-channel audio formats to up to two compatible HD monitors. When a Cat5e/6 cable is used, HD signals can be transmitted up to 328', while Ultra HD signals are extended up to 229.6'. Ultra HD signals can be extended up to 328' if a Cat6a/7 cable is used. The receiver also extends bidirectional data signals ranging from 30 to 50 kHz using a Cat5/6 cable.
The HBT-C6POE-2R unit features a UTP output port that allows users to extend video and audio signals up to 328'. The unit supports PoE (Power over Ethernet) and internet (100 Mb/s Ethernet service when connected to a router). It also allows bidirectional IR control of the source connected to the unit from the user's IR remote control at the monitor side. These features have been added to this unit to give the installer and user a complete solution for online streaming and using network-connected devices, including smart TVs and UHD monitors. - Input: HDMI with 3D, DCI 4K, and 1080p; HDCP and DVI compliant
- Video bandwidth: From 300 MHz / 9 Gb/s
- PC resolutions: VGA to WUXGA
- HD resolutions: Up to DCI 4K (4096 x 2160 @ 24 Hz) and UHD 4K (3840 x 2160 @ 30 Hz); 1080p (1920 x 1080 @ 60 Hz)
- Audio supported: LPCM 7.1-channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Audio transmission: 32 to 192 kHz sample rate
- Distance: Up to 328' through Cat6e/6a/7 cables
- Ethernet transmission rate up to 100 Mb/s
- Uncompressed video: 1080p, 60 Hz, 36-bit
- Service: USB (for manufacturer use only)
- 3D support: Follow by display/TV's EDID
- 5Play convergence: HDMI, LAN, PoE, and bidirectional control (IR & RS-232)
UPC: 606825934232 In the Box Avenview HBT-C6POE-2R HDBaseT PoE Cat5/6/7 Receiver with Two HDMI Outputs IR Blaster IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HBT-C6POE-2R HDBaseT PoE Cat5 6 7 Receiver with Two HDMI Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-2R Specs | Device | HDBaseT HDMI Receiver | | HDMI Compliance | Yes, HDBaseT | | HDCP | Yes | | Video Bandwidth | Single-link 300 MHz (9 Gb/s) | | Supported Resolutions | 480i / 480p / 720p / 1080i / 1080p60
Up to UHD 4K @ 30 (3840 x 2160 @ 24/25/30 Hz)
DCI 4K (4096 x 2160 @ 24 Hz) | | CEC Compliant | Allows CEC bypass | | Supported Video | Cat5e/6 up to 1080p @ 60 Hz
36-bit, 3D (data rates lower than 5.3 Gb/s or below 225 MHz TMDS clock)
Range: 328' (100 m)
Pixel Clock Rate: ≤225 MHz
Video Data Rate: ≤5.3 Gb/s HD Video
Cat5e/6 4Kx2K @ 30 Hz
Range: 229.6' (70 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video
Cat6a/7 4Kx2K @ 30 Hz
Range: 328' (100 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video | | Audio Support | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp, TTL | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge), ±4 kV (contact discharge) | | Input | 1 x 3.5 mm IR Extender
1 x Cat5e/6/7 | | Output | 1 x RS-232
1 x 3.5 mm IR
1 x LAN port
2 x HDMI | | HDMI Connector | Type A (19-pin female) | | LEDs | Yellow LED | | IR Frequency | 30 to 50 kHz | | Power Supply | 24 VDC / 1.25 A (US/EU Standards, CE/FCC/UL Certified) | | Power Consumption | 13 W (maximum) | | Operating Temperature | 32 to 104ËF (0 to 40ËC) | | Storage Temperature | -4 to 140ËF (-20 to 60ËC) | | Relative Humidity | 20 to 90% RH, non-condensing | | Dimensions | 4.0 x 4.4 x 1.0" (10.2 x 11.3 x 2.5 cm) | | Weight | 0.6 lb (0.3 kg) |
