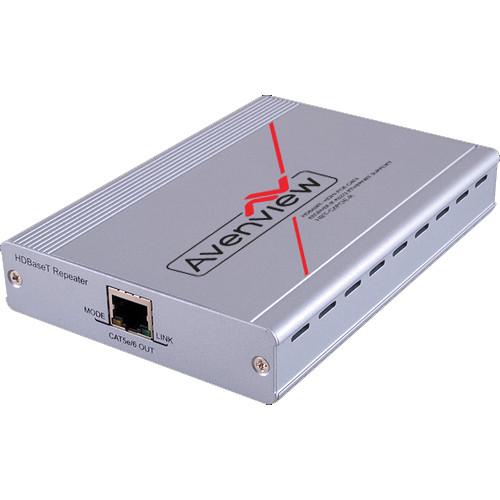

Product description The Avenview HBT-C6POE-EX HDBaseT CAT5/6/7 Repeater allows HDBaseT systems to be both extended and cascaded. It supports uncompressed high-quality HD video up to 4K x 2K (Ultra HD) and 8 channels of uncompressed multi-channel audio. In addition to built-in RS-232 control support and IR, this unit also supports PoE and Ethernet. It allows the convergence of HDBaseT 5Play over a single CAT5e/6/7 cable.The HBT-C6POE-EX Repeater allows extension of bi-directional IR control of the source connected to the HBT-C6POE-S Transmitter (available separately) from the user’s IR remote control at the monitor side. The repeater comes with a UTP output port, which allows the user to extend video and audio up to 330’ (100m). This device can be powered by the 24V from the transmitter PoE (Power over the CATx cable to the RX) and also extends Internet (100 Mb/s Ethernet service when connected to a router at the TX) signals.This unit gives the installer and user a complete solution for online streaming, network-connected devices, and Smart TV, and Ultra HD monitors and content. Note: HBT-C6POE-S Transmitter sold separately. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received signal on the display, the actual transmission length is subject to high-quality category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6e 250 MHz cable is recommended. - Supports PC resolutions from VGA to WUXGA and HD resolutions up to 4Kx2K (3840 x 2160 @ 30 Hz and 4096 x 2160 @ 24 Hz)
- Supports video bandwidth from 300 MHz/9 Gb/s
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Range of up to 330' through a CAT6e, 6a, or 7 cable
- Ethernet transmission rate up to 100 Mb/s
- Supports uncompressed video of 1080p, 60 Hz, 36-bit video
- 3D Ssupport: Follow by Display / TV's EDID
- 5Play Convergence: HDMI, LAN, PoE & Bi-d Directional Ccontrol (IR & RS-232)
UPC: 606825934003 In the Box Avenview HBT-C6POE-EX HDBaseT CAT5/6/7 Repeater with PoE/LAN/RS-232/ Bi-Directional IR up to 328' 24VDC, 1.25A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HBT-C6POE-EX HDBaseT CAT5 6 7 Repeater with PoE LAN RS-232 Bi-Directional IR up to 328' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-EX Specs | Video Bandwidth | Single-link 300 MHz (9 Gb/s) | | Ethernet Speed | 100 Mb/s | | HDCP | Yes | | Supported Resolution | 480i to 1080p @ 50/60, 1080p @ 24, 3D 4K @ 30 up to ultra HD (3840 x 2160 @ 24/25/30 Hz) | | CEC Compliant | Allows CEC Bypass | | CAT Cables Supported | 4K2K: (3840 X 2160 @ 30 Hz) to 229' (70 m) (CAT6e)
Full HD: (1080p) to 330' (100 m) (CAT6e/6A) | | Audio Support | LPCM 7.1 Channel, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge) & ±4 kV (contact discharge) | | Input | 1 x CAT5e/6/7 | | Output | 1 x CAT5e/6/7 | | PC Resolutions | Up to VGA to WUXGA | | Audio Transmission | 32 to 192 kHz sample rate | | LEDs | Yellow / Blue LED | | IR Frequency | 30 to 50 kHz | | Power Supply | 24 VDC /1.25 A (US/EU standards, CE/FCC/UL certified)
POE (Powered from Transmitter) The PoE function is designed for powering compatible receiver units only. Non-PoE receivers must be powered with an external power supply. Transmitter is not included. | | Power Consumption | 13 W maximum | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Storage Temperature | -4 to 140˚F (-20 to 60˚C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions (L x W x H) | 4.0 x 4.4 x 1.0" (10.2 x 11.3 x 2.5 cm) | | Weight | 11.4 oz (324.0 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.3 x 7.3 x 2.8" |
