Product description When used with a compatible transmitter, the Avenview HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver extends high definition video and multi-channel audio formats to any compatible HD monitor. When a Cat5e/6 cable is used, HD signals can be transmitted up to 328', while Ultra HD signals are extended up to 229.6'. Ultra HD signals can be extended up to 328' if a Cat6a/7 cable is used. The receiver also extends bidirectional data signals ranging from 30 to 50 kHz using a Cat5/6 cable.

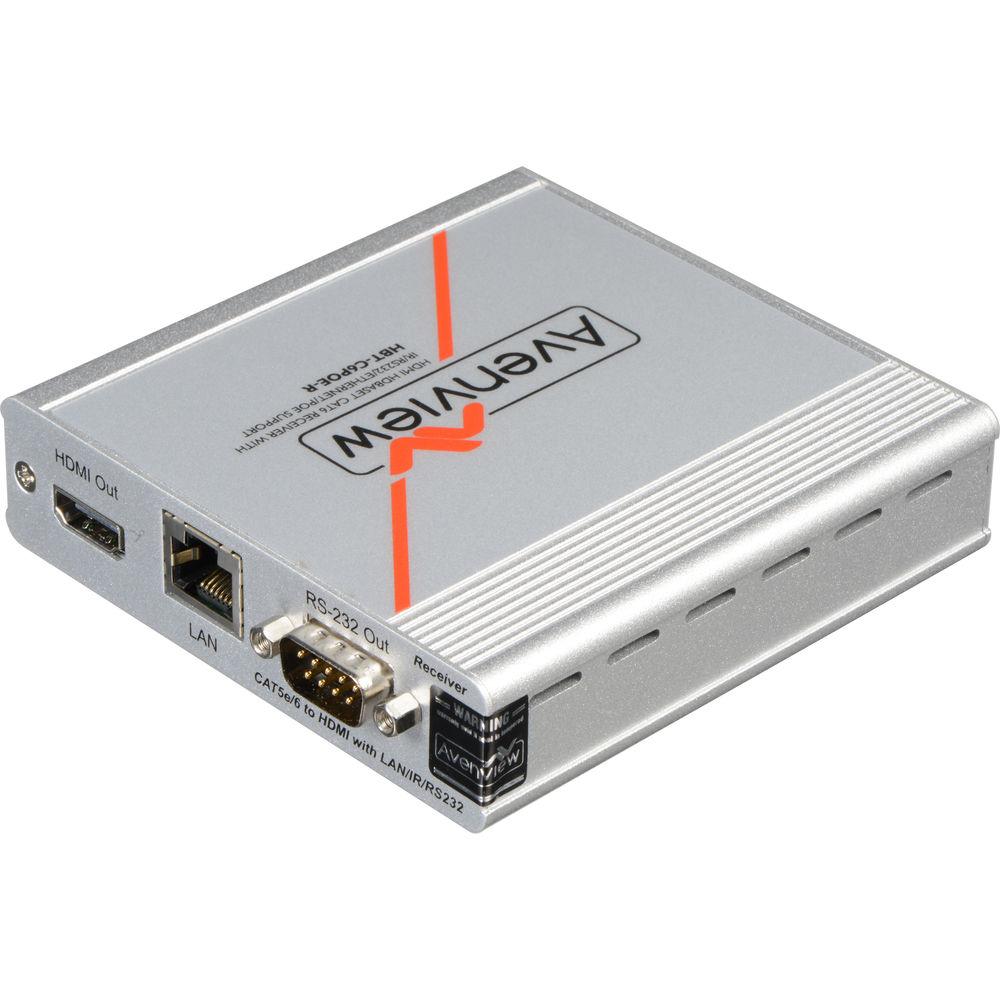

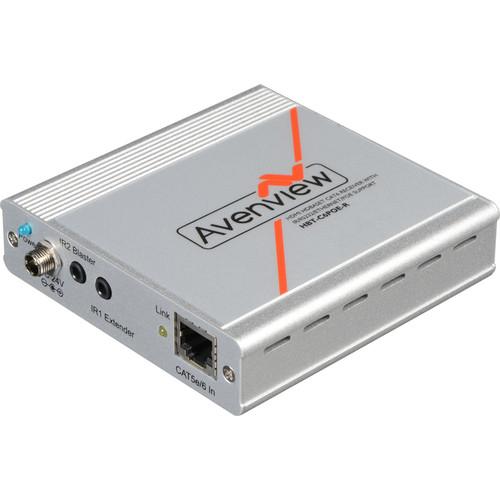

The HBT-C6POE-R unit features a UTP output port that allows users to extend video and audio signals up to 328'. The unit supports PoE (Power over Ethernet) and internet (100 Mb/s Ethernet service when connected to a router). It also allows bidirectional IR control of the source connected to the unit from the user's IR remote control at the monitor side. These features have been added to this unit to give the installer and user a complete solution for online streaming and using network-connected devices, including smart TVs and UHD monitors. - Input: HDMI with 3D, DCI 4K, and 1080p; HDCP and DVI compliant
- Video bandwidth: From 300 MHz / 9 Gb/s
- PC resolutions: VGA to WUXGA
- HD resolutions: Up to DCI 4K (4096 x 2160 @ 24 Hz) and UHD 4K (3840 x 2160 @ 30 Hz); 1080p (1920 x 1080 @ 60 Hz)
- Audio supported: LPCM 7.1-channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Audio transmission: 32 to 192 kHz sample rate
- Distance: Up to 328' through Cat6e/6a/7 cables
- Ethernet transmission rate up to 100 Mb/s
- Uncompressed video: 1080p, 60 Hz, 36-bit
- Service: USB (for manufacturer use only)
- 3D support: Follow by display/TV's EDID
- 5Play convergence: HDMI, LAN, PoE, and bidirectional control (IR & RS-232)

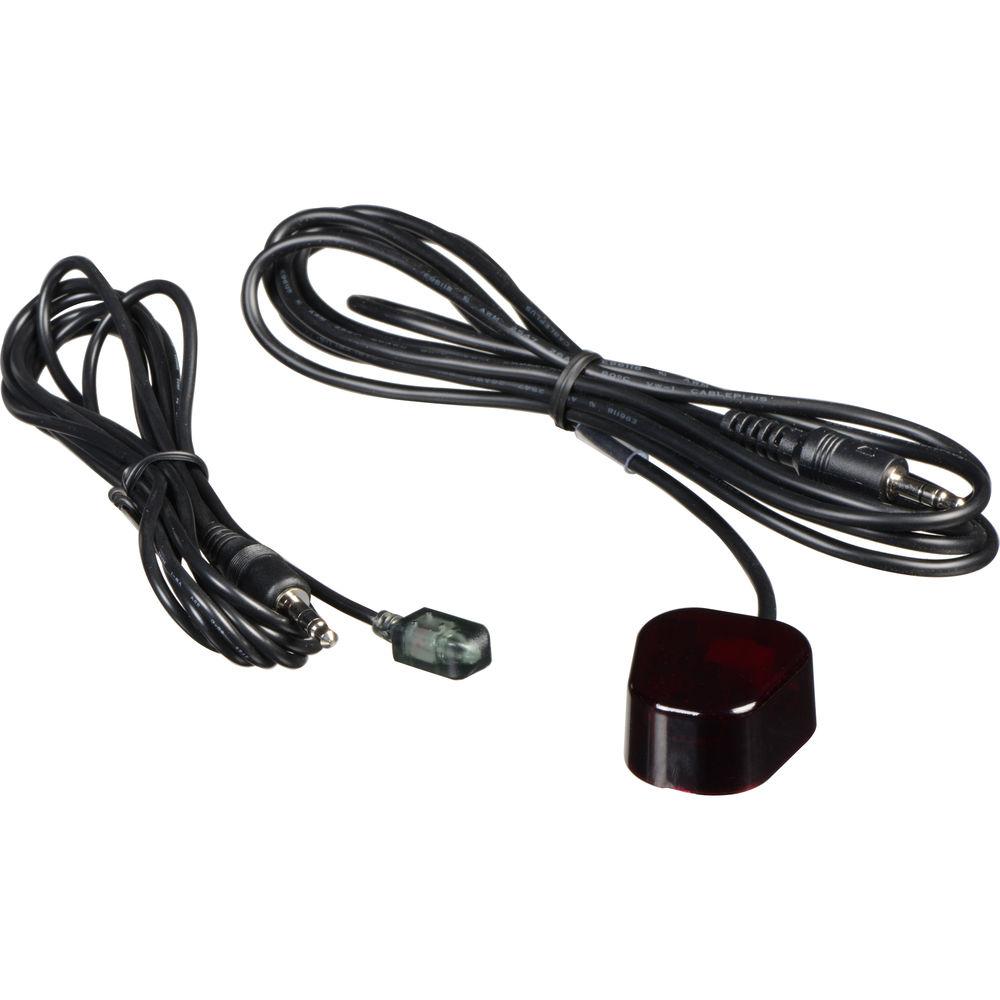

UPC: 606825934218 In the Box Avenview HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver IR Blaster IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HBT-C6POE-R HDBaseT PoE Cat5 6 7 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-R Specs | Device | HDBaseT HDMI Receiver | | HDMI Compliance | Yes, HDBaseT | | HDCP | Yes | | Video Bandwidth | Single-link 300 MHz (9 Gb/s) | | Supported Resolutions | 480i / 480p / 720p / 1080i / 1080p60
Up to UHD 4K @ 30 (3840 x 2160 @ 24/25/30 Hz)
DCI 4K (4096 x 2160 @ 24 Hz) | | CEC Compliant | Allows CEC bypass | | Supported Video | Cat5e/6 up to 1080p @ 60 Hz
36-bit, 3D (data rates lower than 5.3 Gb/s or below 225 MHz TMDS clock)
Range: 328' (100 m)
Pixel Clock Rate: ≤225 MHz
Video Data Rate: ≤5.3 Gb/s HD Video
Cat5e/6 4Kx2K @ 30 Hz
Range: 229.6' (70 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video
Cat6a/7 4Kx2K @ 30 Hz
Range: 328' (100 m)
Pixel Clock Rate: >225 MHz
Video Data Rate: >5.3 Gb/s Ultra HD Video | | Audio Support | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp, TTL | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge), ±4 kV (contact discharge) | | Input | 1 x 3.5 mm IR Extender
1 x Cat5e/6/7 | | Output | 1 x RS-232
1 x 3.5 mm IR
1 x LAN port
1 x HDMI | | HDMI Connector | Type A (19-pin female) | | LEDs | Yellow LED | | IR Frequency | 30 to 50 kHz | | Power Supply | 24 VDC / 1.25 A (US/EU Standards, CE/FCC/UL Certified) | | Power Consumption | 13 W (maximum) | | Operating Temperature | 32 to 104ËF (0 to 40ËC) | | Storage Temperature | -4 to 140ËF (-20 to 60ËC) | | Relative Humidity | 20 to 90% RH, non-condensing | | Dimensions | 4.0 x 4.4 x 1.0" (10.2 x 11.3 x 2.5 cm) | | Weight | 0.6 lb (0.3 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 2.3" |
