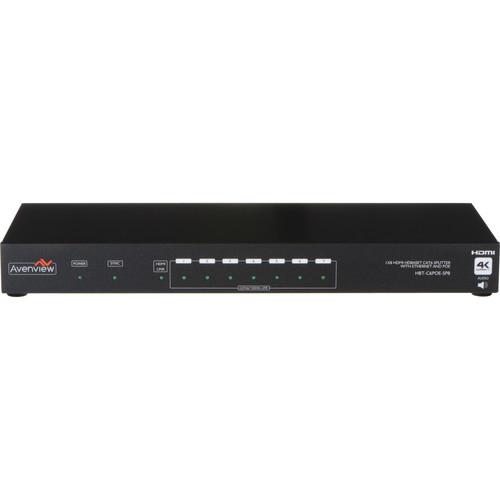

User Manual for Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter Click to enlarge the picture
Contents of the user manual for the Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Split an HDMI signal and send it out to up to eight displays with the Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter. One video output is over HDMI and seven are HDBaseT. HDBaseT is advantageous in situations where longer cable runs to each display are required, such as conventions, installations, and larger presentations. HD and 4K video are supported by both HDMI and HDBaseT outputs, as is multi-channel audio in various formats. HDCP and EDID compliance is maintained ensuring that compatible encrypted and unencrypted content can be displayed properly and with minimal handshake time. Aside from video and audio, HDBaseT can also transport bidirectional IR control for device communication and power to separately available HDBaseT receivers that accept PoE (Power over Ethernet). Included with this unit are an IR transmitter, an IR receiver, and a power supply with a power cord. UPC: 606825934164 In the Box Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter IR Receiver IR Blaster Power Supply Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HBT-C6POE-SP8 1x8 HDBaseT HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-SP8 Specs | Data Rate | 250 Mb/s up to 3 Gb/s | | PC Resolutions | VGA to WUXGA (1920 x 1200) | | Video Resolutions | 4096 x 2160 @ 24
3840 x 2160 @ 30
1080p
1080i
720p
480p
480i | | HDMI Transmission Range | DCI/UHD 4K:
Cat6e: 250' / 75 m
Cat6a: 330' / 100 m
Full HD:
Cat6e: 330' / 100 m
Cat6a: 360' / 110 m | | Audio Supported | LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio | | Audio Transmission | 32 to 192 kHz sample rate | | IR Frequency | 30 to 50 kHz | | Input DDC Signal | 5 V (peak-to-peak, TTL) | | ESD Protection | Human Body Model: ±15 kV (air-gap discharge), ±8 kV (contact discharge)
Core Chipset: ±8 kV | | Input Connectors | 1 x HDMI
1 x IR in
1 x LAN (on RJ-45)
1 x Mini USB (service only) | | Output Connectors | 1 x HDMI (local out)
7 x Cat5e/6/7
1 x IR out | | Power Supply | 24 VDC, 6.25 A (US/EU Standard CE, FCC, UL Certified) | | Power Consumption | 36 W (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20 to 90%, non-condensing | | Dimensions (L x W x H) | 17 x 7 x 2" / 431.8 x 177.8 x 50.8 mm | | Weight | 4.7 lb / 2.1 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 20.6 x 11.7 x 3.8" |
