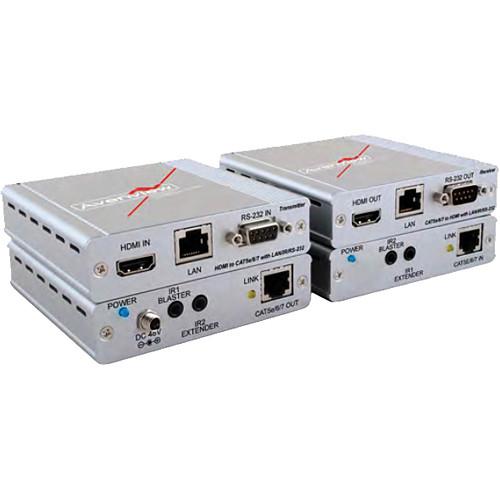

Product description Extend a DCI/UHD 4K signal up to 230 ft, or a 1080p signal 330 ft, with the Avenview HDBaseT HDMI CAT5/6/7 Extender. The compact transmitter/receiver set offers a single HDMI input and bidirectional IR control, RS-232 control, 100 Mbps Ethernet (when connected to a router), and 24V Power-over-Ethernet from the transmitter to the receiver. It supports DCI signals at 24 fps, Ultra HD at 30/25/24 fps, 1080p at 60/50 fps, VGA to WUXGA PC resolutions, 3D video, and multichannel digital audio over a single UTP cable. - Key Features
-
- Extend 4K signal up to 230 ft or 1080p up to 330 ft
- Supports DCI 4K at 24 fps and Ultra HD 4K at 30/25/24 fps
- 480i to uncompressed 1080p at 50/60 fps, with 36-bit color depth
- PC resolutions from VGA to WUXGA
- Multichannel digital audio
- CEC bypass
- Up to 100 Mbps Ethernet transmission
- 3D support: Follow by display / TV's EDID
- Power-over-Ethernet to receiver unit
UPC: 606825934010 In the Box Avenview HDBaseT HDMI CAT5/6/7 Extender HDMI over Cat5/6/7 HDBaseT Transmitter with PoE/RS-232/Bidirectional IR HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver Power Adapter (24 VDC / 1.25A) IR Extender IR Blaster Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDBaseT HDMI CAT5 6 7 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-SET Specs | Supported Resolutions | 480i - 1080p at 24/50/60 fps
3840 x 2160 at 24/25/30 fps
3D | | Input | Transmitter:
1 x 3.5 mm IR Extender
1 x RS-232
1 x LAN port
1 x HDMI Type A
Receiver:
1 x CAT5e/6/7
1 x 3.5 mm IR Extender | | Output | Transmitter:
1 x CAT5e/6/7
1 x 3.5 mm IR Blaster
Receiver:
1 x 3.5 mm IR Blaster
1 x RS-232
1 x LAN port
1 x HDMI Type A | | Ethernet Speed | 100 Mbps | | Video Bandwidth | Single-link 300 MHz / 9 Gbps | | HDCP Compliant | Yes | | CEC Compliant | Allows CEC bypass | | Supported CAT Cables | 4096 x 2160 at 24 fps: 230 ft (70 m) over CAT6e
3840 x 2160 at 30 fps: 230 ft (70 m) over CAT6e
1080p: 330 ft (100 m) over CAT6e/6a | | Supported HDMI Cable Length | Input:
50 ft (15 m) at 1080p 8-bit
20 ft (6 m) at 1080p 12-bit
Output:
50 ft (15 m) at 1080p 8-bit
33 ft (10 m) at 1080p 12-bit | | Audio Support | LPCM 7.1-Ch, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus audio | | Audio Transmission | 32-192 kHz sample rate | | ESD Protection | Human Body Model: ±8 kV (air-gap discharge); & ±4 kV (contact discharge) | | IR Frequency | 30 - 50 kHz | | Power Supply | Transmitter:
24 VDC, 1.25 A (US/EU standards, CE/FCC/UL certified)
Receiver:
PoE (powered from transmitter) | | Power Consumption | 13 W (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions | Transmitter/Receiver: 4 x 4.4 x 1" (10 x 11 x 2.5 cm) | | Weight | 0.5 lb (250 g) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.0 x 5.4 x 2.4" |
