User Manual for Avenview HDBaseT HDMI VGA Scaler over Cat 5e 6 7 Transmitter Click to enlarge the picture
Contents of the user manual for the Avenview HDBaseT HDMI VGA Scaler over
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
|
User manual for the Avenview HDBaseT HDMI VGA Scaler over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|

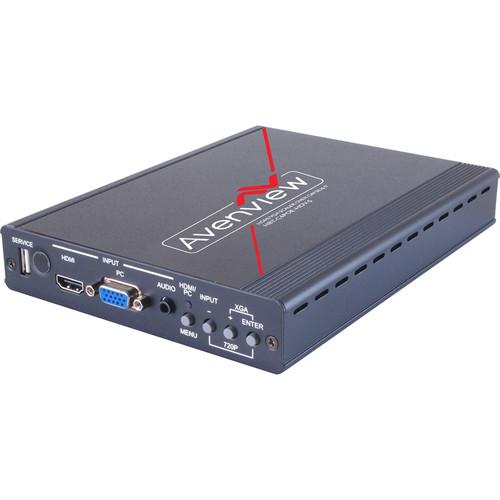

Product description Provided by third party: The HBT-C6POE-HDV-S is an HDBaseT transmitter scaler that supports both HDMI and PC (VGA) input. It is capable of scaling and switching any video along with audio and extending the uncompressed digital signal over CAT5e/6/7 cable to the receiver at a distance of up to 100 meters. This unit can also support 2-way IR, RS-232 and bidirectional LAN support. The user can simply control many functions via on-panel buttons or IR remote control with support of an On-screen Display (OSD) providing selection and system information. The HBT-C6POE-HDV-S provides a full range of output resolutions, from 640 up to 1080p and WUXGA (RB). The bidirectional Power over Ethernet (PoE) function provides greater flexibility during installations.
- Key Features
-
- Supports both HDMI/VGA inputs scaling to a full range of HDTV or PC resolutions up to 1080p and WUXGA
- Transmission of uncompressed data over a single CAT5e/6/7 cable
- 5Play convergence - video and audio, LAN serving, bidirectional Power over Ethernet and control
- Supports IR, remote control, RS-232 and on-panel controls
- Supports Ethernet transmission rates up to 100 Mbps
- Supports NTSC and PAL formats for composite video input
Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDBaseT HDMI VGA Scaler over Cat 5e 6 7 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-HDV-S Specs | | | Type | HDMI/VGA to HDBaseT converter / scaler | | Width | 7.9 in | | Depth | 5.7 in | | Height | 1.2 in | | Weight | 21.27 oz | | | | Nominal Voltage | AC 120/230 V | | Max Power Consumption | 17 W | | Low Voltage Power | DC 24 V | | | | Kit Content | (1) x IR receiver
(1) x IR transmitter
(1) x remote control
(1) x power adapter | | | | Terminals | (1) x HDMI input - 19 pin HDMI Type A
(1) x VGA input - 15 pin HD D-Sub (HD-15)
(1) x audio line-in - mini-phone stereo 3.5 mm
(1) x serial - 9 pin D-Sub (DB-9)
(1) x network - RJ-45
(1) x infrared output
(1) x infrared input
(1) x HDBaseT output - RJ-45 | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
