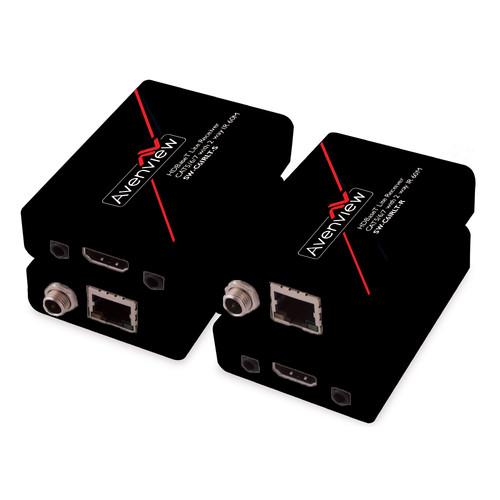

User Manual for Avenview HDBaseT Lite HDMI over Single CAT5e 6 7 Extender Click to enlarge the picture
Contents of the user manual for the Avenview HDBaseT Lite HDMI over Single
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview HDBaseT Lite HDMI over Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Provided by third party: The HDBaseT Lite HDMI over Single CAT5e/6/7 extender incorporating 2-way IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) or up to 35 meters (4K x 2K) and supports High Definition Audio and 3D signals. Designed with HDBaseT Lite technology for greater flexibility in custom installations with full HDMI and 2-way IR control signal transfer over a single CAT5e/6/7 cable.
- Key Features
-
- HDMI including 3D and 4K x 2K (Ultra HD) support, HDCP and DVI compliant
- Supports HDCP repeater and CEC bypass
- Supports HDBaseT Lite Technology including 2-Way IR and RS-232
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution and output up to 15 meters at 8-bit or 12-bit resolution
- Audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD master audio
- Compact size with stylish design
Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDBaseT Lite HDMI over Single CAT5e 6 7 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview SW-C6IRLT-R Specs | | | Device Type | Video/audio/infrared extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 3840 x 2160 @ 24 Hz | | Max Video Bandwidth | 300 MHz | | Max Transfer Distance | 197 ft | | Features | HDCP compliant, 7.1 channel audio support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support | | | | Interfaces | 1 x HDMI (output) - 19 pin HDMI Type A female
1 x IrDA (output) - mini jack female
1 x IrDA (input) - mini jack female
1 x HDBaseT - RJ-45 female | | | | Power Device | External power adapter | | Power Consumption Operational | 5.5 Watt | | | | Width | 2.2 in | | Depth | 3.2 in | | Height | 0.9 in | | Weight | 2.26 oz | | | | Service & Support | Limited warranty - parts and labor - 3 years | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
