User Manual for Avenview HDBaseT VGA Composite Transmitter Scaler over Cat 5e 6 7 Click to enlarge the picture
Contents of the user manual for the Avenview HDBaseT VGA Composite Transmitter Scaler
- Product category: KVM Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview KVM Extenders
 |
User manual for the Avenview HDBaseT VGA Composite Transmitter Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|

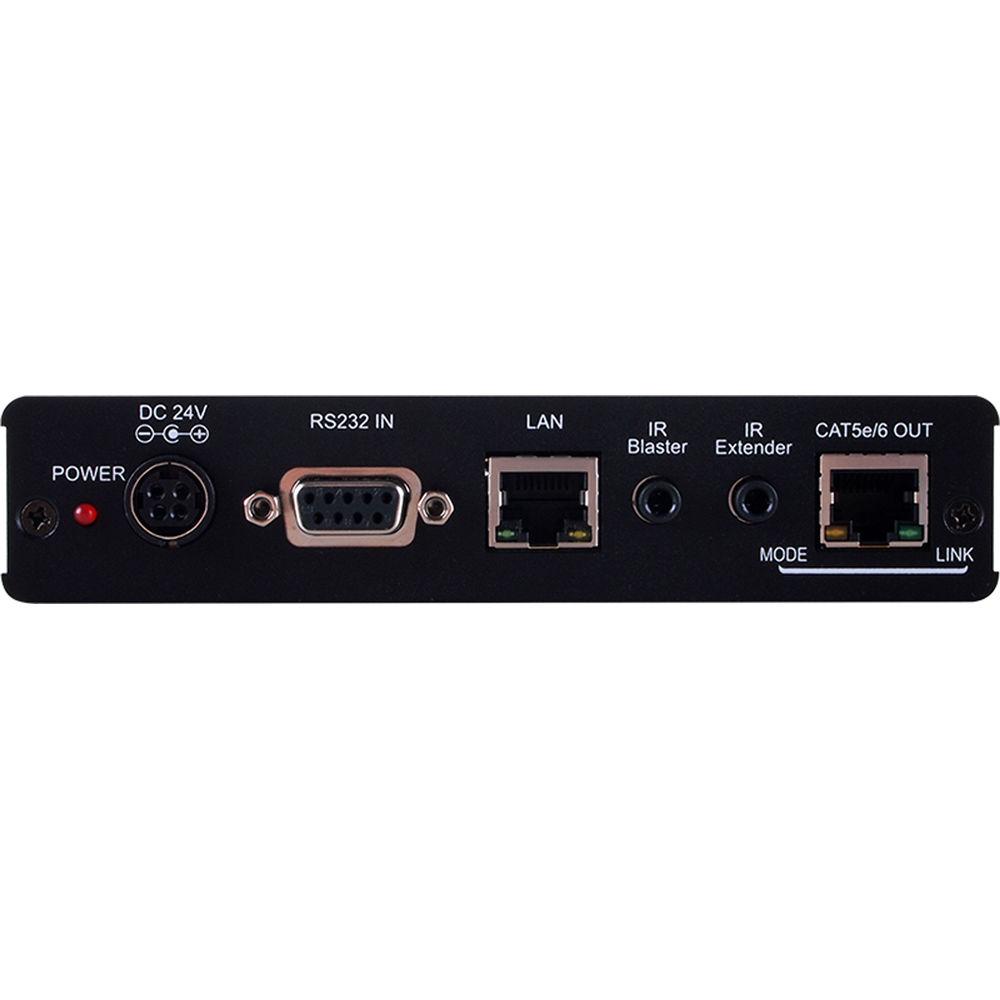

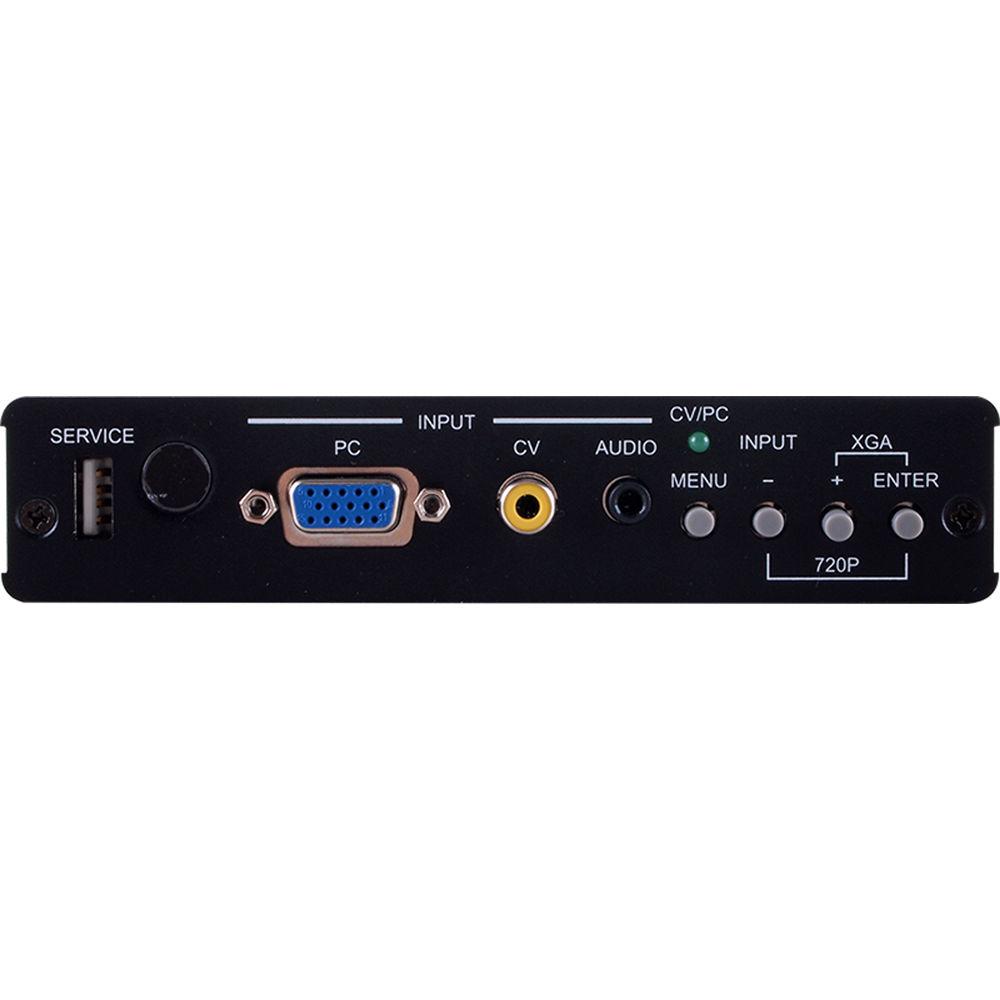

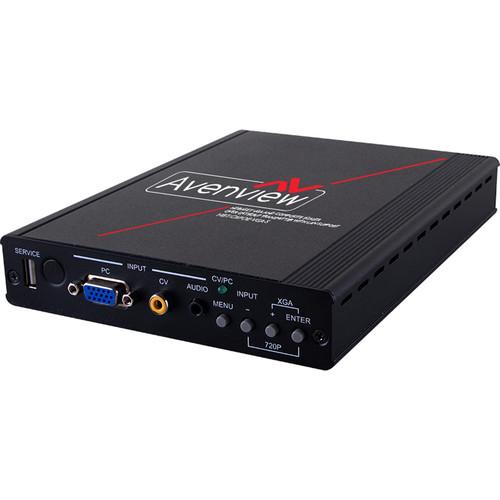

Product description Provided by third party: The HBT-C6POE-VGA-S is an HDBaseT Transmitter Scaler that supports PC (VGA) or Composite Video (CV) input. It is capable of scaling and switching video sources and sending the digital signal over CAT5e/6/7 cable to the Receiver at a distance of up to 100 meters, along with an external audio input, 2-way IR, RS-232 and bidirectional LAN support. Control is via onpanel buttons or IR remote control and there is an On-screen Display (OSD) providing selection and system information. The HBT-C6POE-VGA-S provides a full range of output resolutions, from 640 up to 1080p and WUXGA (RB). The bidirectional Power over Ethernet (PoE) function provides greater flexibility during installations.
- Key Features
-
- Supports PC/CV scaling to a full range of HDTV or PC resolutions up to 1080p and WUXGA (RB)
- Transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
- 5Play convergence: Video and Audio, LAN serving, bidirectional Power over Ethernet (PoE) and Control (IR RS-232 bypass)
- Supports IR, Remote control, RS-232 (bypass) and on-panel controls
- Provides bidirectional 24V DC power to or receive from compatible PoE Receiver through CAT5e/6/7 cable
- Supports Ethernet transmission rates up to 100 Mbps
- Supports NTSC and PAL formats for Composite Video input
Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDBaseT VGA Composite Transmitter Scaler over Cat 5e 6 7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HBT-C6POE-VGA-S Specs | | | Type | Audio/video over IP transmitter | | Width | 7.9 in | | Depth | 5.7 in | | Height | 1.2 in | | Weight | 21.27 oz | | | | Low Voltage Power | DC 24 V | | | | Kit Content | (1) x power adapter | | | | Terminals | (1) x VGA input - 15 pin HD D-Sub (HD-15)
(1) x composite video input - RCA
(1) x audio line-in - mini-phone stereo 3.5 mm
(2) x network - RJ-45
(1) x serial - 9 pin D-Sub (DB-9)
(1) x infrared input
