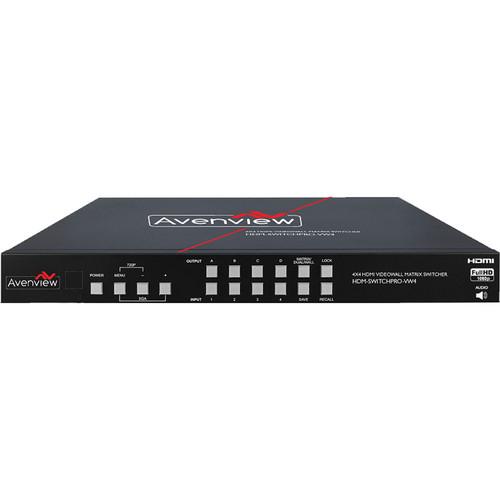

Product description The HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support from Avenveiw is a 1 RU full HDMI HD switcher. It features four functions; 4x4 Matrix Switcher, Multi Input Splitter, Dual-Viewer, and a 2x2 Videowall. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons.
The 4 HDMI digital source inputs of the unit can be configured as a 4x4 matrix switcher to distribute the audio and video signals to any 4 HDMI HD monitors. It can be configured as a multi input splitter to duplicate one source input to all 4 HDMI HD monitors. With the dual-viewer feature, this unit can combine 4 video signals onto 2 HDMI HD monitors. The 2x2 Videowall mode, can scale one source input across all 4 HDMI HD monitors in a 2x2 configuration. - Input resolution settings from PC VGA, XGA, SXGA, UXGA, WUXGA
- Input from digital players from 480p up to full HD 1080p @ 60Hz
- Output resolutions from 480p to 1080p deep color 8/10/12 bit source
- Audio supports: LPCM 2Ch, 6Ch, 8Ch, AC3, DTS, Dolby Digital Plus, Dolby TruHD, and DTS-HD
- Audio formats up to 7.1 channels LPCM at 192Hz
- Fine tuning and adjustments of contrast, brightness, saturation and hue
- Preset up to 4 layout options
- Auto EDID detect from the source
- Bezel correction support for 2x2 Videowall mode
- USB for service mode and firmware upgrade
- Connection by IR Remote, Telnet or RS232 for user setup and configuration
- HDMI, HDCP and DVI compliant
- Software control through USB, RS232 and Ethernet
In the Box Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support 2 x Rackmount Ear Power Cord IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HDM-SWITCHPRO-VW4 Specs | HDCP Compliance | Yes | | Video Bandwidth | 225 MHz (6.75 Gbps) | | Supported Resolution | PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
480i, 720p, 1080i, 1080p | | Audio Support | LPCM 2 ch, 6 ch, 8 ch, AC3, DTS, Dolby Digital Plus, Dolby TruHD & DTS-HD | | Input | 4 x HDMI 19 pin female
1 x Mini USB | | Output | 4 x HDMI 19 pin female | | USB Connector | Type A Mini USB | | RJ45 Connector | WE/SS 8P8C with 2 LED indicators | | Switching Speed | ±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Power Supply | 12 VDC, 3 A | | Operating temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions (L x W x H) | 17.2 x 7 x 1.7" (43.7 x 17.8 x 4.3 cm) | | Weight | 5 lb (2.2 kg) | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 22.5 x 16.2 x 5.5" |
