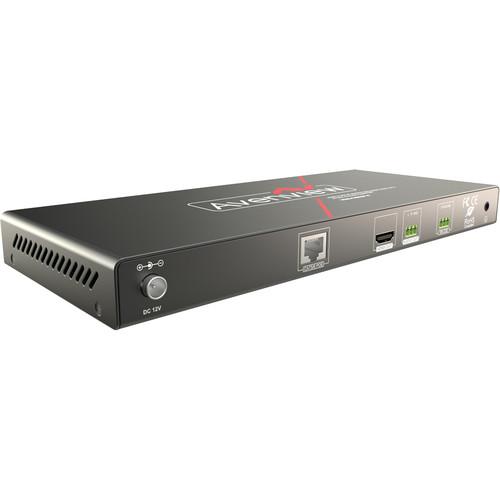

User Manual for Avenview HDMI H.264 IP Matrix Decoder Receiver with Video Wall Support Click to enlarge the picture
Contents of the user manual for the Avenview HDMI H.264 IP Matrix Decoder
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview HDMI H.264 IP Matrix Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description Add this Avenview HDMI H.264 IP Matrix Decoder/Receiver to your Encoder & Decoder Set and expand your matrix and video wall setups.
The decoder features a Cat5/6 input and HDMI output and can be run point-to-point direct from an encoder, or point-to-multi from a network switch. It supports up to 1080p and 1920 x 1200 at 60 Hz on input and output. The full system uses H.264/MPEG-4 AVC video compression. - Key Features
-
- Expand your matrix and video wall setups
- Cat5/6 input
- HDMI output
- CEC function
- Live IP video stream decoding of formats from 480p at 60 Hz to 1920 x 1200 at 60 Hz
- PoE support
- HDCP compliant
- End-to-end latency of 60-90 ms in low latency mode
- End-to-end latency of 250-300 ms in high-quality mode
UPC: 606825934393 In the Box Avenview HDMI H.264 IP Matrix Decoder/Receiver with Video Wall Support Power Supply Unit (12 VDC, 1A) with International Adapters Ear Rack Set Set of Two Phoenix Connectors (3.5mm, 3-Pin, Male) User Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDMI H.264 IP Matrix Decoder Receiver with Video Wall Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HDM-C6MWIP-R Specs | Video Input | 1 x Cat5/6 (H.264/MPEG-4 AVC) | | Input Resolutions | 480p at 60 Hz to 1920 x 1200 at 60 Hz | | Video Output | 1 x HDMI 1.3 | | Output Resolutions | HDMI:
1920 x 1200 at 60 Hz
1920 x 1080p at 60/50/30/25/24 Hz
1680 x 1050 at 60 Hz
1600 x 1200 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024/800 at 60 Hz
1280 x 720p at 60/50 Hz
1024 x 768 at 60 Hz
800 x 600 at 60 Hz
576p at 50 Hz
480p at 60 Hz | | Impedance | 100 Ohms | | End-to-End Latency | About 60-90 ms (low latency mode)
About 250-300 ms (high-quality mode) | | Input Audio Format | Audio embedded in streaming media input | | Output Audio Ports | 1 x Phoenix connector | | Output Audio Format | Stereo | | Control Method | PC configurator and RS-232 | | Power Supply | 12 VDC, 1 A | | Power Consumption | 6 W (max) | | ESD Protection | Human Body Model:
-±8 kV (Air-gap discharge)
-±4 kV (Contact discharge) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions | 10.5 x 1.0 x 4.4" (27.0 x 2.5 x 11.2 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.3 x 7.1 x 3.1" |
