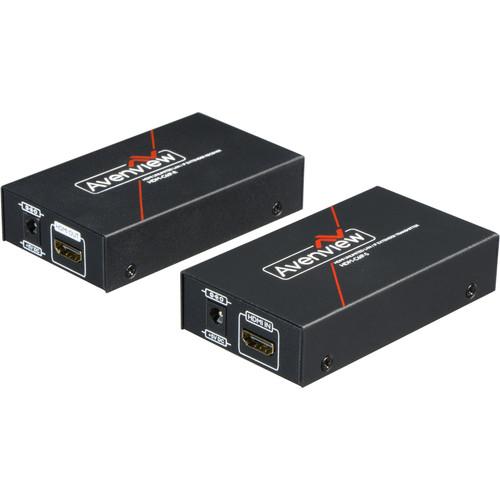

User Manual for Avenview HDMI Unlimited LAN Extender Set over Single CAT6 Click to enlarge the picture
Contents of the user manual for the Avenview HDMI Unlimited LAN Extender Set
- Product category: Video Extenders & Repeaters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Video Extenders & Repeaters
|
User manual for the Avenview HDMI Unlimited LAN Extender Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Avenview HDMI Unlimited LAN Extender Set over Single CAT6 is a transmitter and receiver set that extends an HD video signal with embedded audio up to 393 ft. You can connect the two directly or via a router. If directly, the transmitter sends the video and audio signal into the receiver's RJ45 input over a single CAT6 cable, and the receiver outputs the signal to a local display via an HDMI output. If via a router, the transmitter connects to the router and the router sends the signal to the receiver over an internet network. In this second scenario, up to 150 receivers can be connected and routed to at the same time. When using a router, you can establish and employ either an IP or DHCP address.
The max resolution the set supports is 1080p60/50 and the top audio quality is 7.1 surround sound or otherwise stereo digital audio. -
- Extends 1080p60/50 video with 7.1 ch audio up to 393 ft over one CAT6 cable
- Can connect to an optional router and support a total of 150 receivers
- Silicon Image chipset
- HDMI 1.3a, HDCP compliant, EDID 1.1
- Regenerates the HDMI signal
UPC: 606825934317 In the Box Avenview HDMI Unlimited LAN Extender Set over Single CAT6 2 x Power Adapter User's Manual 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview HDMI Unlimited LAN Extender Set over Single CAT6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview HDM-C6IP-SET Specs | Input | Transmitter:
1x HDMI 1.3a (HDCP compliant)
Receiver:
1x RJ45 (WE/SS 8P8C connector with 2 LED indicators) | | Output | Transmitter:
1x RJ45 (WE/SS 8P8C connector with 2 LED indicators)
Receiver:
1x HDMI 1.3a (HDCP compliant)
1x 3.5 mm | | Video Bandwidth | M-JPEG technology to process image compressing GIGABIT (10/1000) over LAN | | Video Resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@60/50Hz, 1080i@60/50Hz, 1080p@60/50Hz | | Transmission Distance | (24-bit) 1080p: 393 ft over CAT6 (120 m); 330 ft over CAT5e (100 m) | | Audio Support | Up to 7.1 channel surround sound or stereo digital audio | | IR | No | | RS-232 | No | | Power | 5V/1A input (adapters included) | | Power Consumption | 3W max each | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Storage Temperature | -4 to 140˚F (-20˚ to 60˚C) | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions | 4.3 x 2.3 x 1" (11 x 5.8 x 2.6 cm) each | | Weight | .5 lb (.24 kg) each | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.7" |
