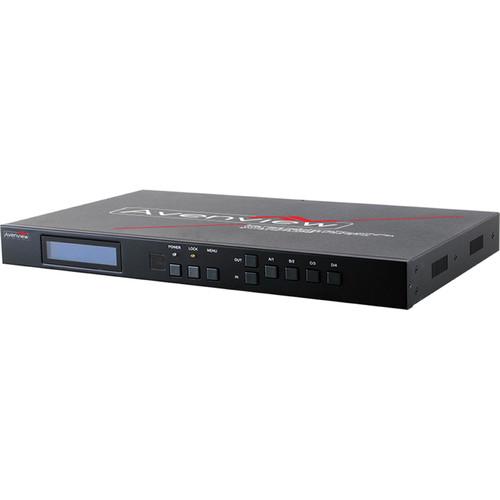

Product description The SW-HBT-C6POE-4X4E HDBaseT HDMI Matrix Switcher with IR/RS232/POE/3D Support from Avenview provides switching and extension of 4 HD sources with independent routing to any of its 4 outputs. This unit is designed to handle transmission of video and audio over four CAT5e/6/7 cable outputs at up to 330' supporting HDBaseT technology with bidirectional IR, RS-232 and PoC (Power over Cable). A receiver is required in order to complete the transmission.
This Matrix can be installed into residential and light commercial solutions. Equipped with an IR Remote Control and indicating system status on its LCM display, you have the ability to quickly choose which input to route to any output. This unit can be connected to any third party automation control system via an RS-232, Telnet and IP control for more integrated whole system control like iPad, touch screen tablet or Touch PC. - Controlled via IR, RS 232, Telnet or Web GUI
- Supports Full HD 1080p @ 60Hz/36-bit color depth, 3D, 8/10/12 Deep Color
- Supports 3D signal display dependent upon the output display EDID settings
- 3D signal display dependent upon the output display's EDID settings
- Supports high resolution digital audio formats
- Supports Bi-Directional IR signals 30 kHz to 50 kHz over CAT5/6, and LAN up to 100Mbps
- Power over Ethernet (PoE)
- Supports external and internal EDID settings
- Supports bi-directional IR to and from input and output locations
- HDMI, HDCP, and DVI compliant
- 2RU rackmountable metal chassis
In the Box Avenview SW-HBT-C6POE-4X4E HDBaseT HDMI Matrix Switcher with IR/RS232/POE/3D Support Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview SW-HBT-C6POE-4X4E HDBaseT HDMI Matrix Switcher with IR RS232 POE 3D Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview SW-HBT-C6POE-4X4E Specs | Video Format Support | HDMI, HDCP1.1, and DVI | | Video Bandwidth | Single-link 340 MHz, 10.2 Gbps | | Resolutions | HD: 480i - 1080p 50/60, 1080p24
PC: VGA - WXGA | | Audio Support | LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master | | Audio Sampling Rate | Up to 192 kHz | | Input Connectors | 4 x HDMI
5 x IR Receiver
1 x 3.5 mm phone jack IR input
1 x mini-USB
1 x LAN
1 x RS-232 | | Output Connectors | 5 x IR Sender
1 x 3.5 mm phone jack, IR output
4 x CAT 5e/6/7 | | IR Frequency | 30 - 50 kHz | | Certifications | FC, CE, RoHS compliant | | Power Supply | 24 VDC, 6.25 A | | Maximum Power Consumption | 42 W | | Dimensions | 10.0 x 17.0 x 3.7" (25.5 x 43.8 x 9.3 cm) | | Weight | 9.3 lb (4238 g) |
