User Manual for Avenview Three-Input Quad Output 4K Video Wall Processor Click to enlarge the picture
Contents of the user manual for the Avenview Three-Input Quad Output 4K Video
- Product category: Monitors Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Monitors
|
User manual for the Avenview Three-Input Quad Output 4K Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|

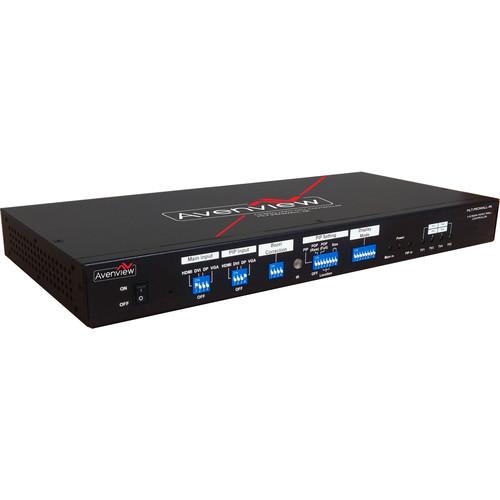

Product description The Avenview Three-Input / Quad Output 4K Video Wall Processor is a 10-bit wall controller designed to allow creative, unconventional video walls, such as four displays set up in the shape of an "X". It features 256 display modes to choose from with various rotation angles, positions, and arrays, and it uses 3:2 and 2:2 pulldown to allow for the irregular output layouts. The device has HDMI, DVI, and DisplayPort inputs and four HDMI outputs. It supports up to DCI 4K/30 or UHD 4K/60 on input and it outputs 1080p60 via each port. Output can be controlled by front panel dip switches, the included IR remote control, or via RS-232. Bezel correction allows you to output to different types of displays. An HDMI loop output lets you daisy-chain additional units to create video walls with more than four displays. - Key Features
-
- Uses 3:2/2:2 pulldown to allow for irregular output layouts, such as four displays in the shape of an "X"
- Display modes include different rotation angles, positions, and arrays
- Image flip/rotation angles can be set to 90/180/270° and will apply to all four outputs
- 256 preset layouts
- HDMI, DVI, and DisplayPort inputs
- Four HDMI outputs
- HDMI loop output for daisy-chaining multiple units for expanding to video walls with more than 4 displays
- 10-bit 4:4:4 full bandwidth sampling with 3D motion adaptive de-interlace
- Up to DCI 4K/30 or UHD 4K/60 on input
- 1080p60 output per each port
- Selectable preset bezel correction for different displays
- Bezel compensation based on LG 47"/ 55" LCD and 1.5% for conventional TVs
- Embedded PIP/POP function
- Front panel dip switch control
- IR remote control
- RS-232 control
- Up to 5 different display profiles can be set up and recalled using the included IR remote or RS232
- HDCP compliant
- LED indicator
- Rack-mountable
UPC: 606825937950 In the Box Avenview Three-Input / Quad Output 4K Video Wall Processor IR Remote Control IR Extender 12V 3.33A Power Adapter Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview Three-Input Quad Output 4K Video Wall Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview MLT-PROWALL-4K Specs | Inputs | 1 x HDMI type A
1 x DVI
1 x DisplayPort | | Outputs | 4 x HDMI type A
1 x HDMI type A loop output for daisy-chaining | | Other Connections | 1 x 9-pin RS-232
1 x 3.5 mm IR jack | | Processor | 10-bit | | Input Resolution | 4096 x 2160 at 30 fps, 3840 x 2160 at 60 fps, 1080p/120, 2560 x 1600 at 60 fps | | Output Resolution | 1080p60 per output port | | Sampling | 4:4:4 | | Audio Support | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-HD Master | | HDCP Compliant | Yes | | Power Supply | 12 VDC, 3.33 A | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 140°F/ -20 to 60°C | | Relative Humidity | 20 to 90% (no condensation) | | ESD Protection | Human Body Model:
