User Manual for Avenview VGA to HDMI Scaler & Converter Click to enlarge the picture
Contents of the user manual for the Avenview VGA to HDMI Scaler &
- Product category: Signal Converters Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview Signal Converters
|
User manual for the Avenview VGA to HDMI Scaler & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|

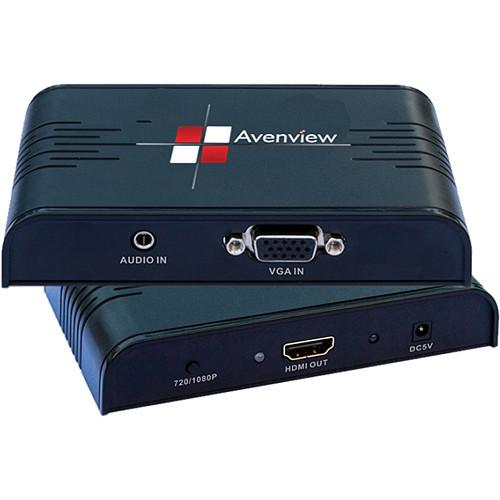

Product description The Avenview VGA to HDMI Scaler & Converter is designed to take video and audio signals from a PC or laptop and upscale it to digital HDMI output with a wide-range of HDTV and PC resolutions, up to 1080p. The built-in circuitry allows digital media enthusiasts to easily distribute and enjoy PC-based multi-media content on high-definition monitor while maintaining simultaneous A/V reception at the source PC. This converter features plug-and-play functionality, so no additional software is needed. It is suitable for connecting the VGA video output of your computer or media server and integrating it into a digital HDMI home theater system. - Key Features
-
- Converts VGA and stereo audio into an HDMI signal
- Auto detect signal source
- Supports up to 1080p resolution and video amplifier bandwidth up to 1.65 Gbps / 165 MHz
- Up-scales VGA to HDMI 720p or 1080p
- Suitable for connecting PCs to high-definition TVs, projectors, flat panel displays, and more
- Supports VGA Input: 640 x 480 @ 60 Hz, 800 x 600 @ 60 Hz, 1152 x 864 @ 60 Hz, 1024 x 768 @ 60 Hz, 1280 x 720 @ 60 Hz, 1280 x 800 @ 60 Hz, 1280 x 960 @ 60 Hz, 1360 x 768 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1440 x 900 @ 60 Hz, 1400 x 1050 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1080 @ 60 Hz (recommended input resolution: 1024 x 768 @ 60 Hz)
- Supports HDMI Output: 720p/60 Hz, 1080p/60 Hz
- Auto-store setting of output resolution
- HDCP and RoHS compliant
- Supports OSD (On-Screen Display), OSD information display on TV
- Plug-and-play operation
- Windows and Mac compatible
In the Box Avenview VGA to HDMI Scaler & Converter Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview VGA to HDMI Scaler & Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview C-VGA-HDM Specs | Input | 1 x VGA-I (29 pin female digital only)
1 x 3.5 mm stereo mini-jack | | Output | 1 x HDMI (Type A) | | Compliance | HDMI: 1.3c
VGA: 1.1 | | Supported Input Resolutions | VGA
640 x 480 @ 60 Hz
800 x 600 @ 60 Hz
1152 x 864 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1360 x 768 @ 60 Hz
1280 x 1024 @ 60 Hz
1440 x 900 @ 60 Hz
1400 x 1050 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
(recommended input resolution: 1024 x 768 @ 60 Hz) | | Output Resolutions | 720p @ 60 Hz
1080p @ 60 Hz | | Video Bandwidth | 165 MHz (1.65 Gbps) | | Output Video Signal | 1.2 V (peak-to-peak) | | Output DDC Signal | 5 V (peak-to-peak) | | Audio Support | Stereo audio | | LED Indicators | 1 x Power connection
1 x Resolution (720p/1080p) | | Power Supply | 5 VDC, 1 A | | Power Consumption | 3 W (max) | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (no condensation) | | Dimensions | 4.7 x 2.9 x 1" (11.9 x 7.37 x 2.54 cm) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.9 x 6.0 x 1.9" |
