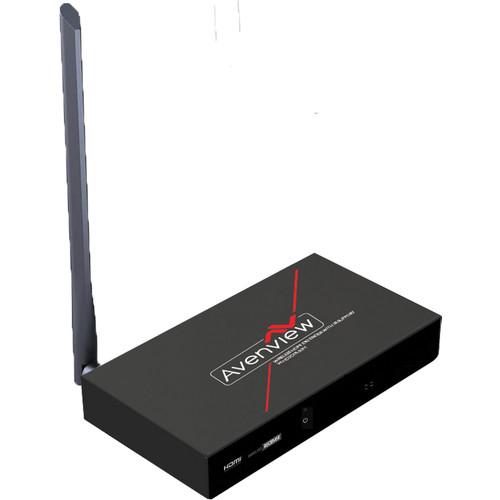

User Manual for Avenview Wireless 5G HDMI Receiver Click to enlarge the picture
Contents of the user manual for the Avenview Wireless 5G HDMI Receiver
- Product category: HDMI Signal Extenders Avenview
- Brand: Avenview
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avenview HDMI Signal Extenders
|
User manual for the Avenview Wireless 5G HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avenview product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avenview user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avenview product will considerably shorten its lifespan!
|
Product description The Wireless 5G HDMI Receiver from Avenview can receive extended HDMI signals from up to 164' away, line of sight. This receiver can be connected to a signal sender to extend source content from HD media source devices (cable boxes, Blu-ray players, game consoles, etc.) to compatible TV displays and monitors. It utilizes WHDI technology for low-latency transmission and supports both 1080p and 3D resolutions and content. - WHDI technology for low latency
- Extends HDMI video and audio up to 164' in open space
- Supports HDMI, EDID 1.1, HDCP 2.0
- Supports resolution up to 1080p @ 60Hz and 3D signals
- Support AES 128 image encryption
- Real-time compression audio is embedded within the HDMI output stream
- Suitable for use with residential and PC presentations
- Extends IR and CEC Signals for remote control of AV equipment
- IR remote extender for source control
In the Box Avenview Wireless 5G HDMI Receiver HDMI Cable IR Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avenview Wireless 5G HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvenview W-HD3DIR-50M-R Specs | Operating Frequency | 5.1 GHz to 5.9 GHz | | Bandwidth | 20 MHz/40 MHz | | Modulations | Downlink Channel: OFDM 16-QAM
Uplink Channel: OFDM-OOK | | Audio Formats Supported | I2S, PCM, SPDIF, AC-3, DTS, Dolby 5.1/7 | | Data Rate | Forward Channel: 3 Gbps - 400 Mbps | | Supported Resolution and Distance | HD: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC: VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768)
Monitor: 854 x 800, 1280 x 768, 1366 x 768, 1920 x 1080 | | HDMI Connector | HDMI female (output) | | Antenna | Internal antenna | | Image Delay | <1 ms | | IR Carrier Modulation Frequency | 38 kHz | | Power Supply | 5 VDC, 2 A | | Transmission Power | 15 ± 2 dBm | | Operating Temperature | 32 - 104° F (0 - 40° C) | | Storage Temperature | -4 - 140° F (-20 - 60° C) | | Relative Humidity | 20 - 90 % RH (no condensation) | | Dimensions | 5.4 x 7 x 1.2" (13.7 x 17.8 x 3.0) | | Weight | 1.2 lb (0.5 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 14.1 x 6.2 x 3.5" |
