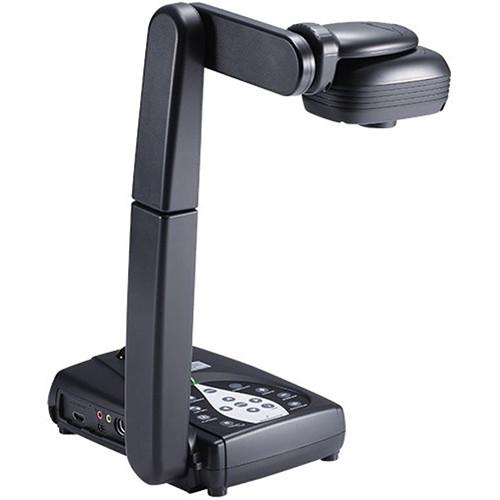

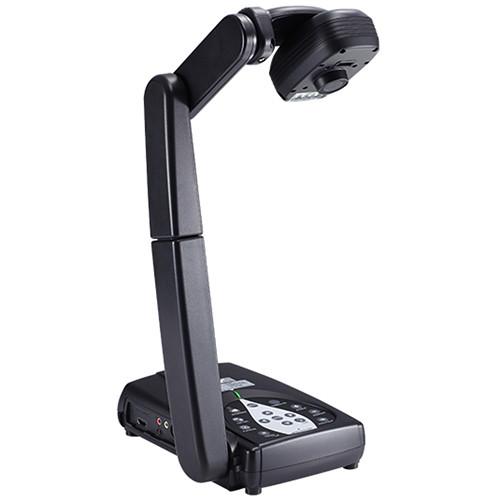

User Manual for AVer 300AFHD 5MP High-Definition Document Camera with HDMI Port Click to enlarge the picture
Contents of the user manual for the AVer 300AFHD 5MP High-Definition Document Camera
- Product category: Video Presenters & Document Cameras AVer
- Brand: AVer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVer Video Presenters & Document Cameras
 |
User manual for the AVer 300AFHD 5MP High-Definition Document Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVer product will considerably shorten its lifespan!
|
Product description The 300AFHD High-Definition Document Camera with HDMI Port from AVer features a 1/3” 5MP CMOS sensor with a 16x digital zoom and offers clear image quality. Equipped with the A+ Software Suite, this camera allows you to record and stream images and videos. Camera - HDMI Output
- The 300AFHD's full 1080p (1920 x 1080) HDMI output allows connections to HD displays, delivering clear video imagery. Now you can present HD details with clarity on your HDMI capable display device.
- Mega Impact
- The 300AFHD's 5MP, 16x digital zoom and one-touch Auto Focus combine to provide high image quality with detail in a short amount of time.
- Offers Sturdy Study
- With fully adjustable locking pieces, the neck and head of the 300AFHD easily rotates, swivels, expands, and collapses for the required angle to display your worksheet, experiment, or three-dimensional objects.

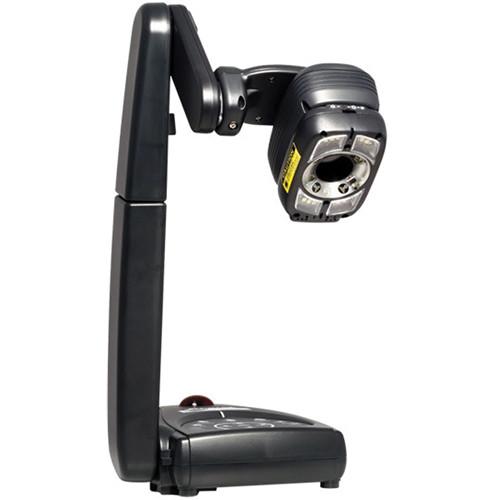

- LED Light Module
- When the 300AFHD Camera is connected to a projector in dark, the built-in LED lights in the camera head illuminate and display the objects underneath.
Software - A+ Software Suite
- The A+ Software Suite is free interactive software which comes complete with enhanced object-oriented annotation project tools, image capture, video recording, LAN network ability, and more. By running AVer's exclusive A+ Software Suite, you can drive 300AFHD's features using your PC or Mac, easily record lessons, add annotations, highlights, arrows, and captions. The camera video streams can be integrated into your PowerPoint presentation or integrated white board (not included). You can even upload recorded lessons to your favorite cloud-based share site.
- Sphere2 Lesson Presentation Software
- The Sphere2 Lesson Presentation Software offers split screen- and share-ability. You can project a live 300AFHD Camera image, a live web cam image, and saved images / videos side by side. After annotating, highlighting, and recording the presentation and when finished, Sphere will upload to multiple social media sites such as YouTube, Dropbox and share with colleagues, students, and more.
- Interactive White Board or Tablet Plug-In
- With this plug-in, the 300AFHD Camera can directly integrate into any IWB software to easily add pictures and live video. You can even use the IWB or tablet software to control the 300AFHD Camera.
- Microsoft Application Plug-In
- The Microsoft Application Plug-In allows you to place an AVer doc cam live image directly into PowerPoint slides. You can also annotate over the entire slide (including the live doc cam image), as well as record the entire presentation, and embed still image captures from your document camera directly into MS Word and Excel documents.
UPC: 848090002982 In the Box AVer 300AFHD 5MP High-Definition Document Camera with HDMI Port 3 x USB Cable (Mini Type) RGB Cable RS232/CVBS Adapter Cable Power Adapter 12V/2A Software & User Manual CD Remote Control with Batteries Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the AVer 300AFHD 5MP High-Definition Document Camera with HDMI Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AVer 300AFHD 5MP High-Definition Document Camera with HDMI Port can be downloaded in PDF format at the link stated below.
Technical parametersAVer VIS3AFHDM Specs | | | Sensor | 1/3" CMOS | | Sensor Resolution | 5 MP | | Zoom | 16x (Digital) | | Frame Rate | 30 fps | | Output Resolution | 1920 x 1080 | | | | Capture Area | 13.7 x 10.3" / 33.7 x 26.1 cm | | Video Connections | 1 x HD15 VGA Input
1 x HD15 VGA Output
1 x HDMI Output | | Audio Connections | 1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Microphone Input | | I/O Connections | 1 x USB 2.0 Mini-B | | I/O Connections | 1 x USB Mini-B USB 2.0 | | Media Card Slots | SD/SDHC | | Image Storage | 240 Images | | Annotation | Yes | | | | Built-In LED Lighting | Yes | | Focus Modes | Auto, Manual | | Exposure Modes | Auto, Manual | | Image Capture Modes | Single, Continuous | | White Balance | Auto, Manual | | Picture in Picture (PIP) | Yes | | Remote Control | Yes | | | | Operating System Support | Windows, macOS/OS X | | | | Power Consumption | 12 W (Lamp On)
10.8 W (Lamp Off) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | | | Dimensions | 14.7 x 6.8 x 21.3" / 37.3 x 17.4 x 54.2 cm (In-Use)
14.4 x 6.8 x 3.9" / 36.7 x 17.4 x 9.9 cm (Folded) | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 6.82 lb | | Box Dimensions (LxWxH) | 17.6 x 9.3 x 7.5" |
