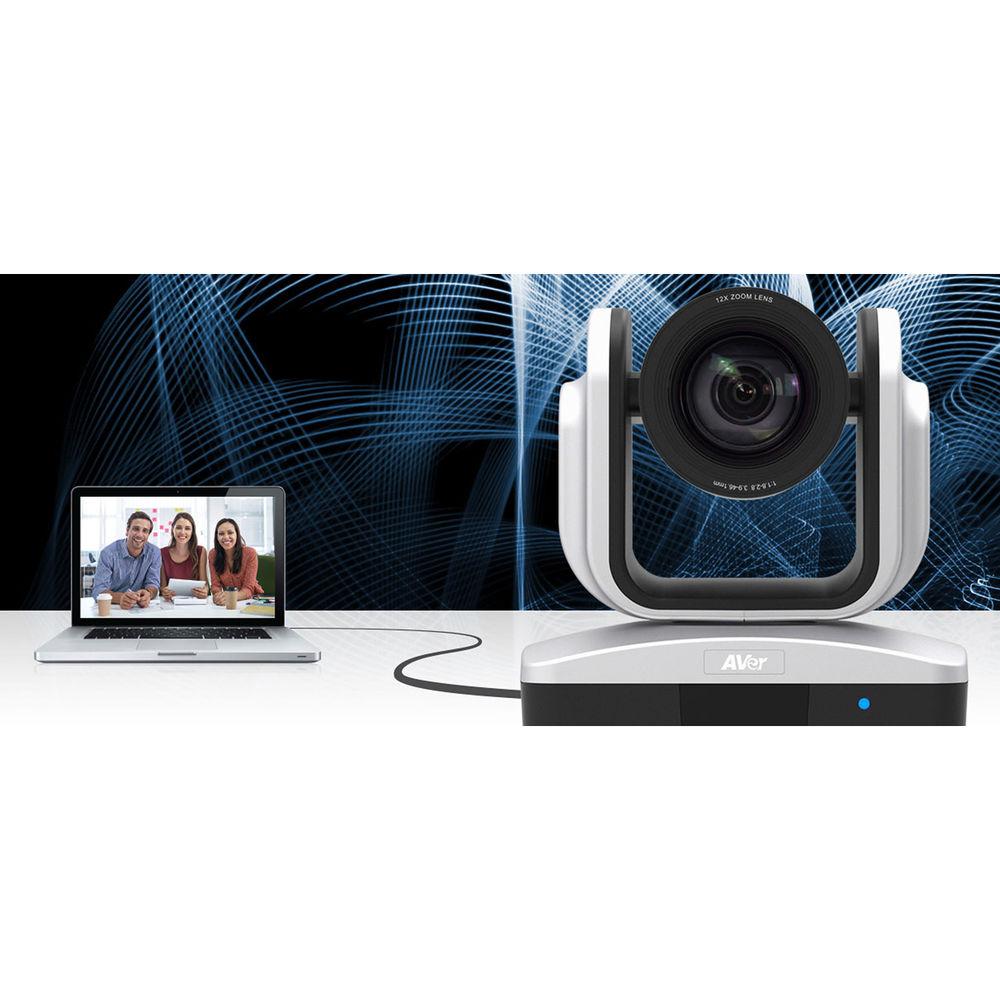

User Manual for AVer CAM520 12x USB PTZ Conference Camera Click to enlarge the picture
Contents of the user manual for the AVer CAM520 12x USB PTZ Conference
- Product category: PTZ Cameras AVer
- Brand: AVer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVer PTZ Cameras
 |
User manual for the AVer CAM520 12x USB PTZ Conference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVer product will considerably shorten its lifespan!
|

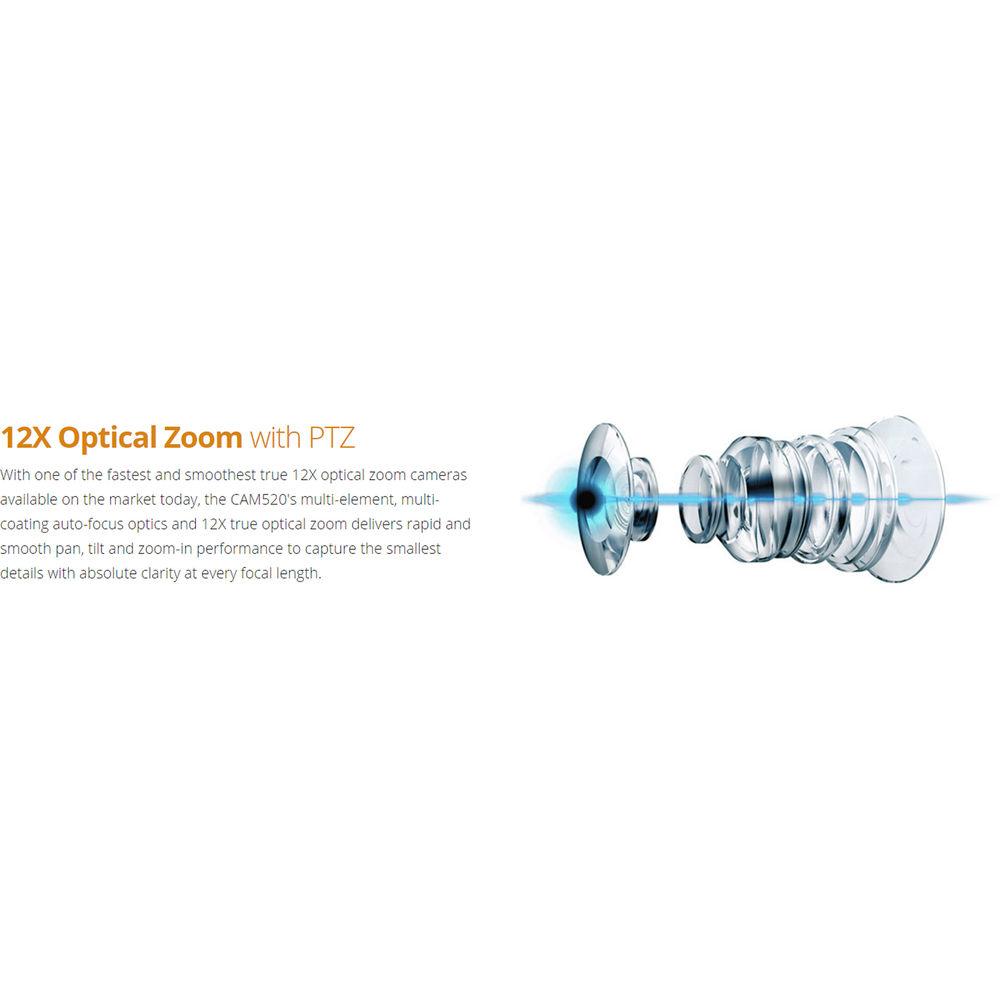

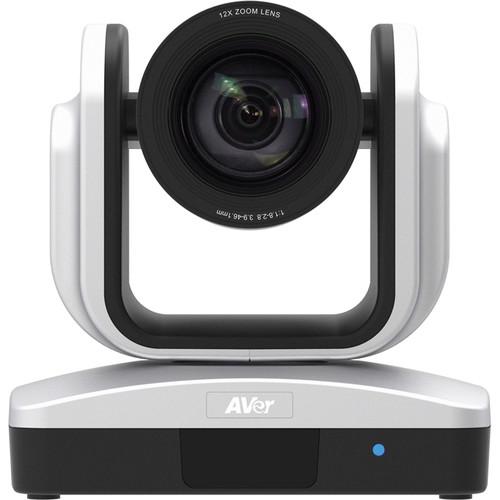

Product description The CAM520 12x USB PTZ Conference Camera from AVer is a professional-grade USB PTZ camera optimized to deliver video communication experience. It features a 12x optical zoom that delivers smooth pan, tilt, and zoom-in performance to capture the smallest details with clarity at every focal length.
The CAM520 allows you to customize your meetings by storing up to 10 PTZ presets. Each preset can be easily accessed with one touch of the remote, saving time and providing flexibility to swiftly move to predetermined locations in the conference room. With advanced integration capabilities built into the camera, including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the CAM520 through an AV control panel. You can choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings. - 1920 x 1080 resolution with 12x optical zoom to capture the smallest details with clarity at every focal length
- Customize your meetings by storing up to 10 PTZ presets; each preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room

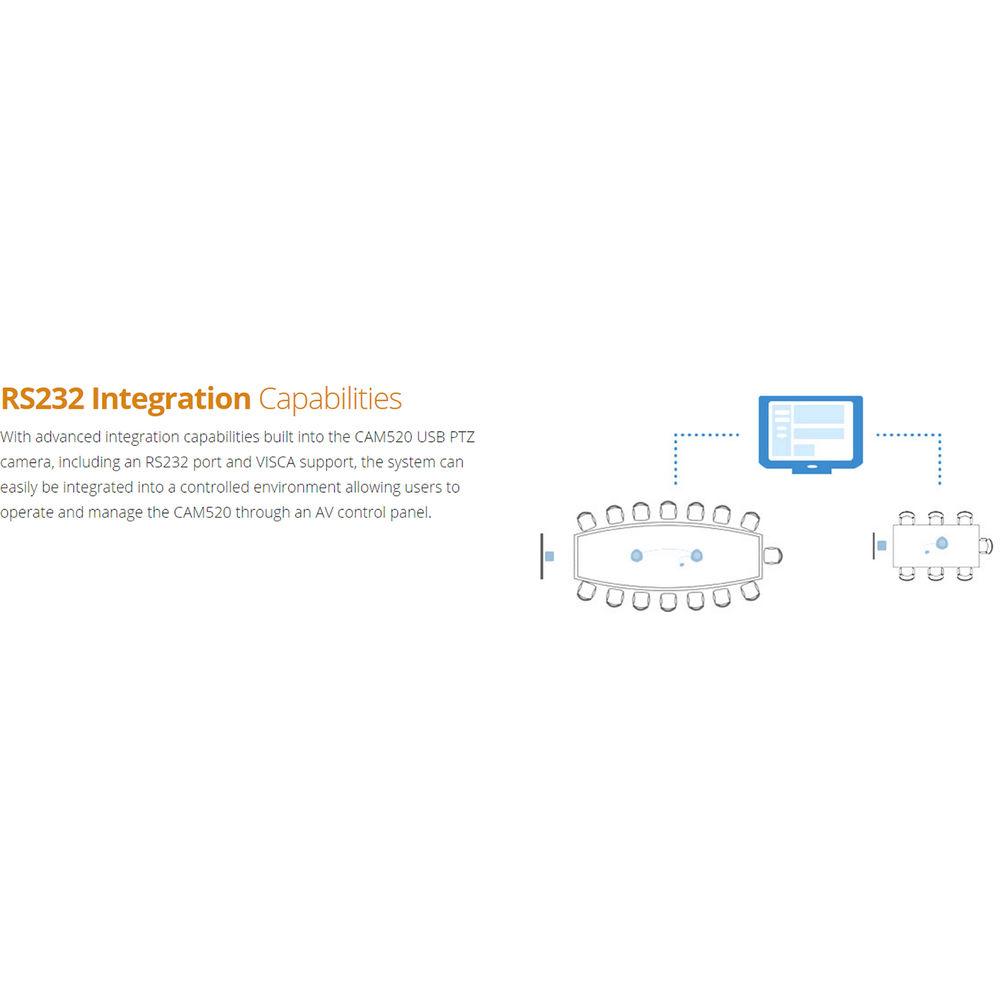

- With advanced integration capabilities including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the camera through an AV control panel

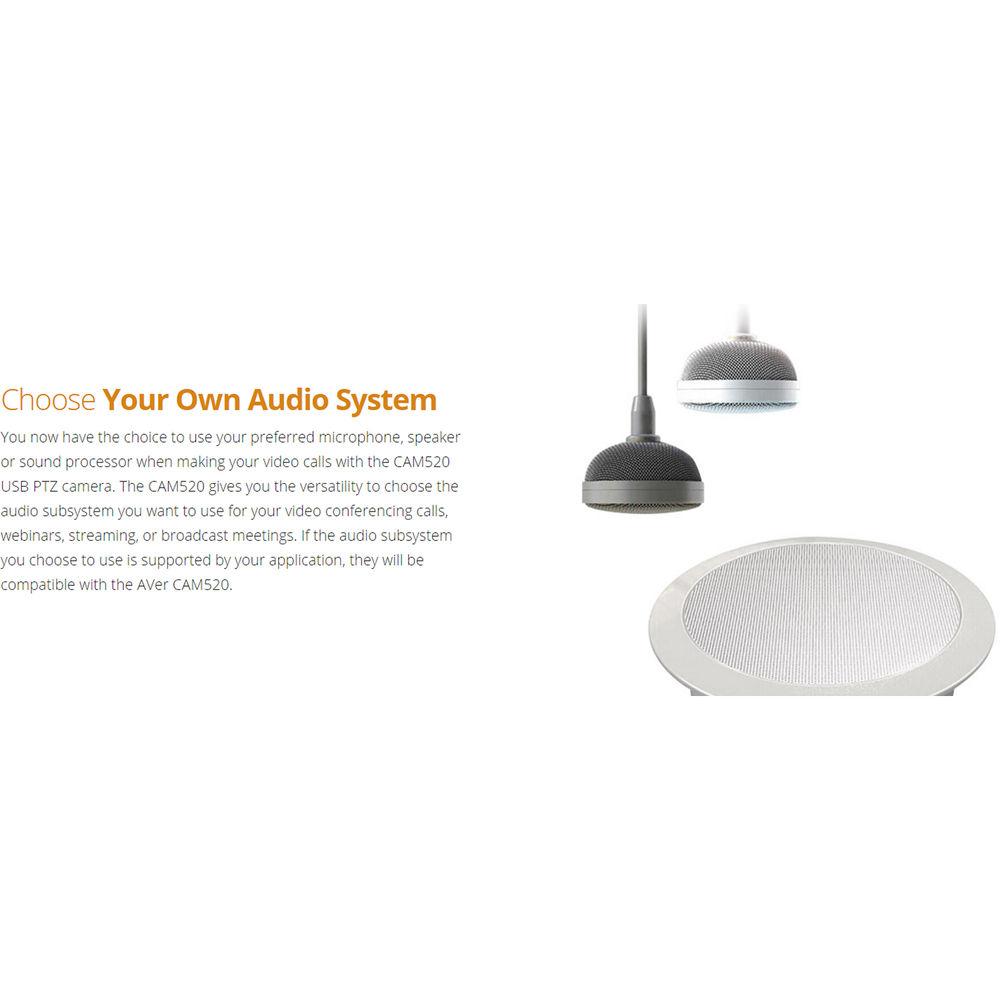

- Choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings
- USB 2.0 UVC video and audio for broad application compatibility
- Application compatibility: Skype, Skype for Business, Blue Jeans, ZOOM, Microsoft Lync, Google Hangout, Cisco WebEx, GoToMeeting, WebRTC, Wirecast, vMix, XSplit, Adobe Connect
- Additional tool: AVer PTZapp for additional controls and firmware update

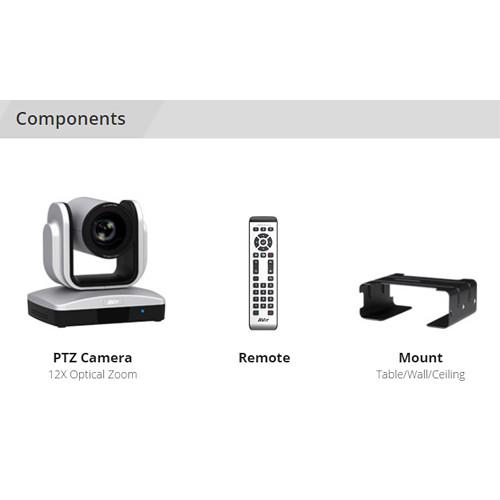

UPC: 848090004436 In the Box AVer CAM520 12x USB PTZ Conference Camera Remote Control Power Adapter 16' USB Cable Metal Mount Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVer CAM520 12x USB PTZ Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVer CAM520 Specs | Sensor | 1/2.8" progressive CMOS 2 MP | | Frame Rate | 1080p, 720p, 1024 x 576, 960 x 540, 848 x 480, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 | | Lens | 3.9 to 47.3mm
12x optical zoom | | F-Stop | f/1.8 (wide) to 2.8 (tele) | | White Balance | Auto; manual override by PTZapp using color temp | | Auto Focus System | Minimum Working Distance: 3.2' (1 m) | | Field of View | Up to 82° diagonal | | S/N Ratio | > 50 dB | | Minimum Illumination | 3.5 lux (50 IRE, f/1.8, shutter 1/30)
2D and 3D noise reduction
Backlight compensation
Flip, mirror | | Pan / Tilt | Pan: ±130°; 0.45° step
Tilt: +90° (up) -25° (down); 0.25° step

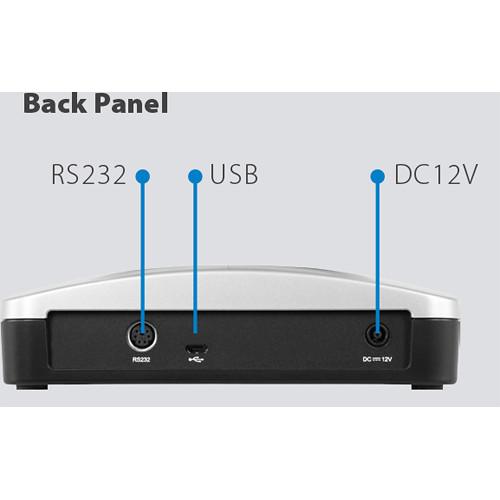

10 camera presets (through remote control), 100 (through VISCA & UVC) | | Connectors | 12 VDC power adapter
Micro-USB 2.0 Type-B connector
Mini DIN6 to RS-232 connection | | Video Format | YUV, MJPEG, H.264 | | USB | UVC (USB Video Class) 1.1 with H.264 extension | | Control | IR remote control
VISCA via RS-232
UVC
PTZapp | | System Requirement | Windows 7/8/8.1/10
Mac OS X 10.7 or higher
Google Chromebook version
29.0.1547.70, Platform 4319.79.0 | | Hardware Specification | 2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
Hard drive space for recorded videos
USB 2.0 port | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | EIAJ 12 VDC, 4 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 20 to 80% | | Dimensions | Camera: 7.1 x 5.5 x 7.2" (180 x 140 x 182 mm)
Remote Control: 1.9 x 7.8 x 0.7" (50 x 200 x 20 mm) | | Weight | Camera: 3.3 lb (1.5 kg)
Remote Control: 0.11 lb (0.05 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 14.7 x 11.0 x 10.2" |
