User Manual for AVer CAM530 12x USB & HDMI PTZ Conference Camera Click to enlarge the picture
Contents of the user manual for the AVer CAM530 12x USB & HDMI
- Product category: PTZ Cameras AVer
- Brand: AVer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVer PTZ Cameras
 |
User manual for the AVer CAM530 12x USB & HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVer product will considerably shorten its lifespan!
|

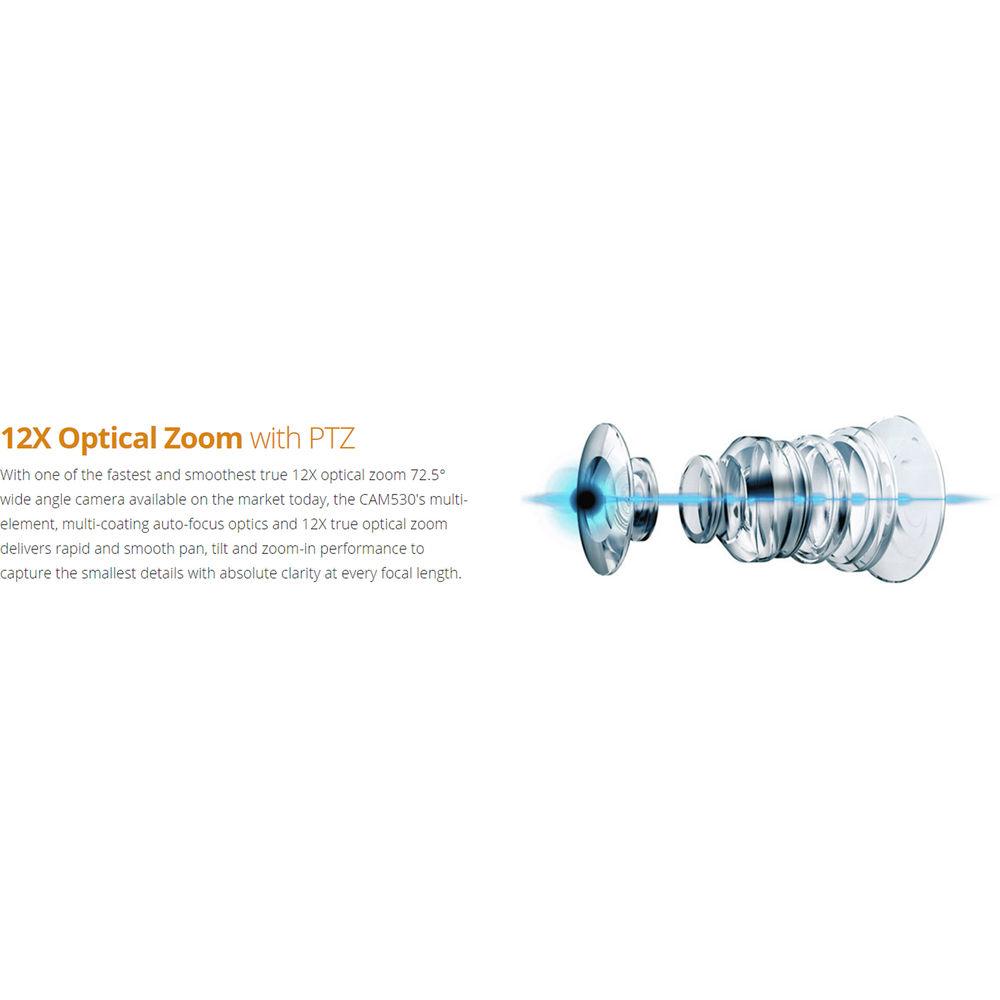

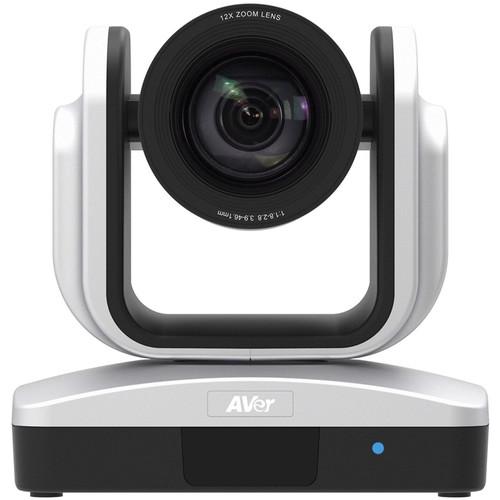

Product description The CAM530 12x USB & HDMI PTZ Conference Camera from AVer is a professional-grade USB PTZ camera optimized to deliver video communication experience. With HDMI & USB simultaneous output you are able to view USB video recording or streaming with HDMI output. It features 12x optical zoom that delivers smooth pan, tilt, and zoom-in performance to capture the smallest details with clarity at every focal length.
The CAM530 allows you to customize your meetings by storing up to 10 PTZ presets. Each preset can be easily accessed with one touch of the remote, saving time and providing flexibility to swiftly move to predetermined locations in the conference room. With advanced integration capabilities built into the camera, including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the CAM530 through an AV control panel. You can choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings. - 1920 x 1080 resolution with 12x optical zoom to capture the smallest details with clarity at every focal length
- You are simultaneously able to view your USB video recording or streaming with HDMI output
- Customize your meetings by storing up to 10 PTZ presets; each preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room

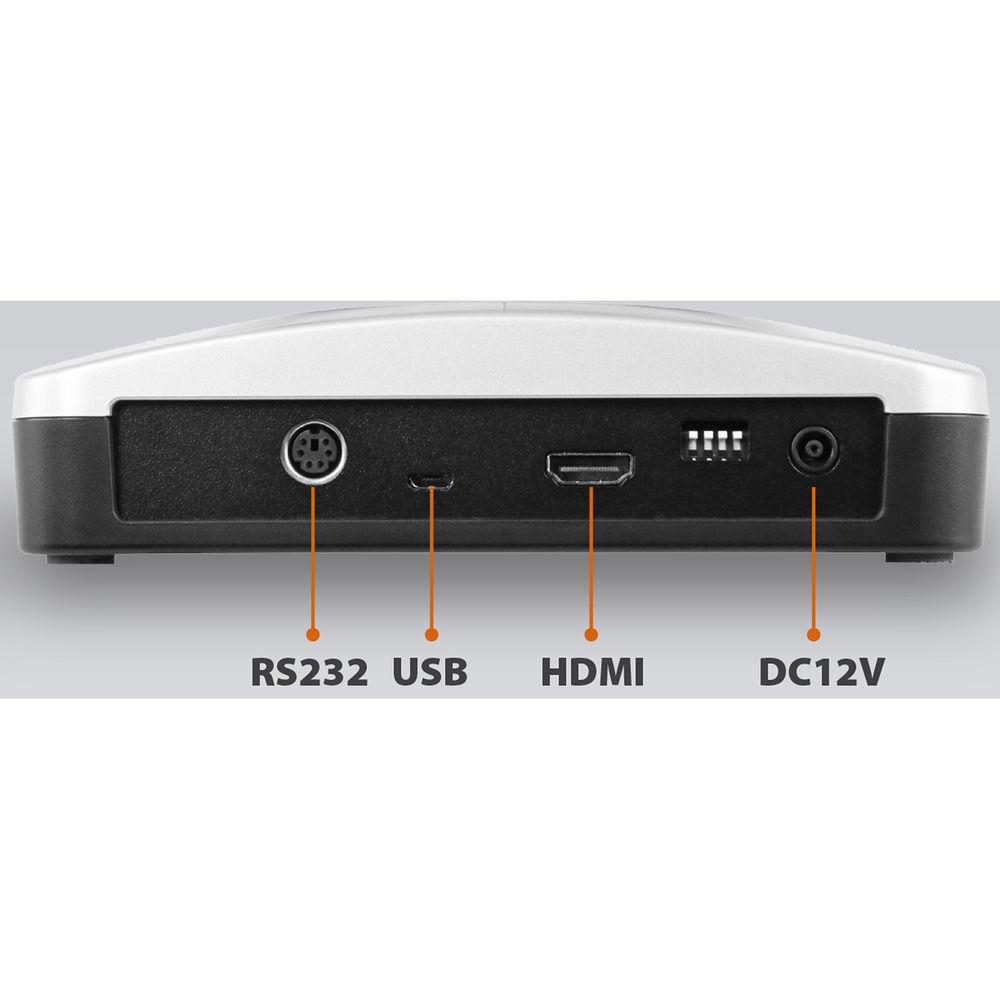

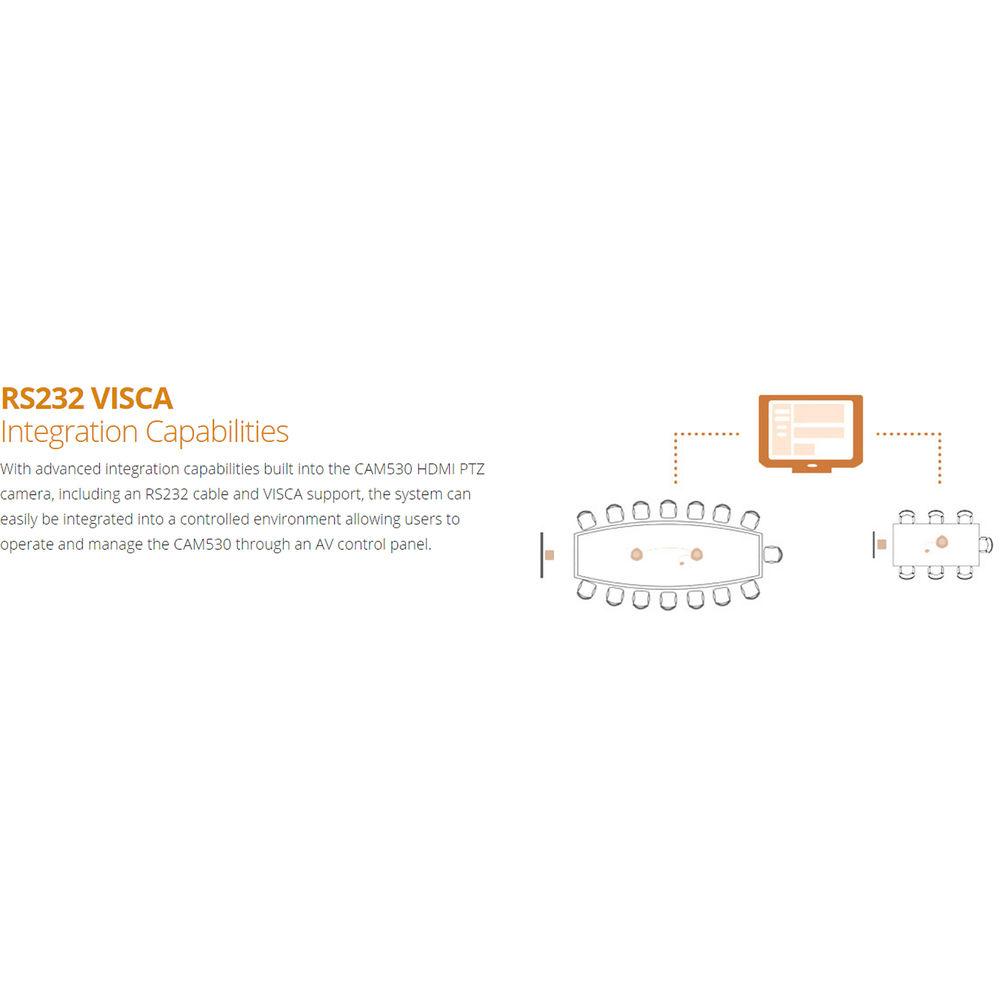

- With advanced integration capabilities including an RS-232 port and VISCA support, the system can easily be integrated into a controlled environment allowing you to operate and manage the camera through an AV control panel
- Choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings
- USB 2.0 UVC video and audio for broad application compatibility
- Application compatibility: Skype, Skype for Business, Blue Jeans, ZOOM, Microsoft Lync, Google Hangout, Cisco WebEx, GoToMeeting, WebRTC, Wirecast, vMix, XSplit, Adobe Connect
- Additional tool: AVer PTZapp for additional controls and firmware update

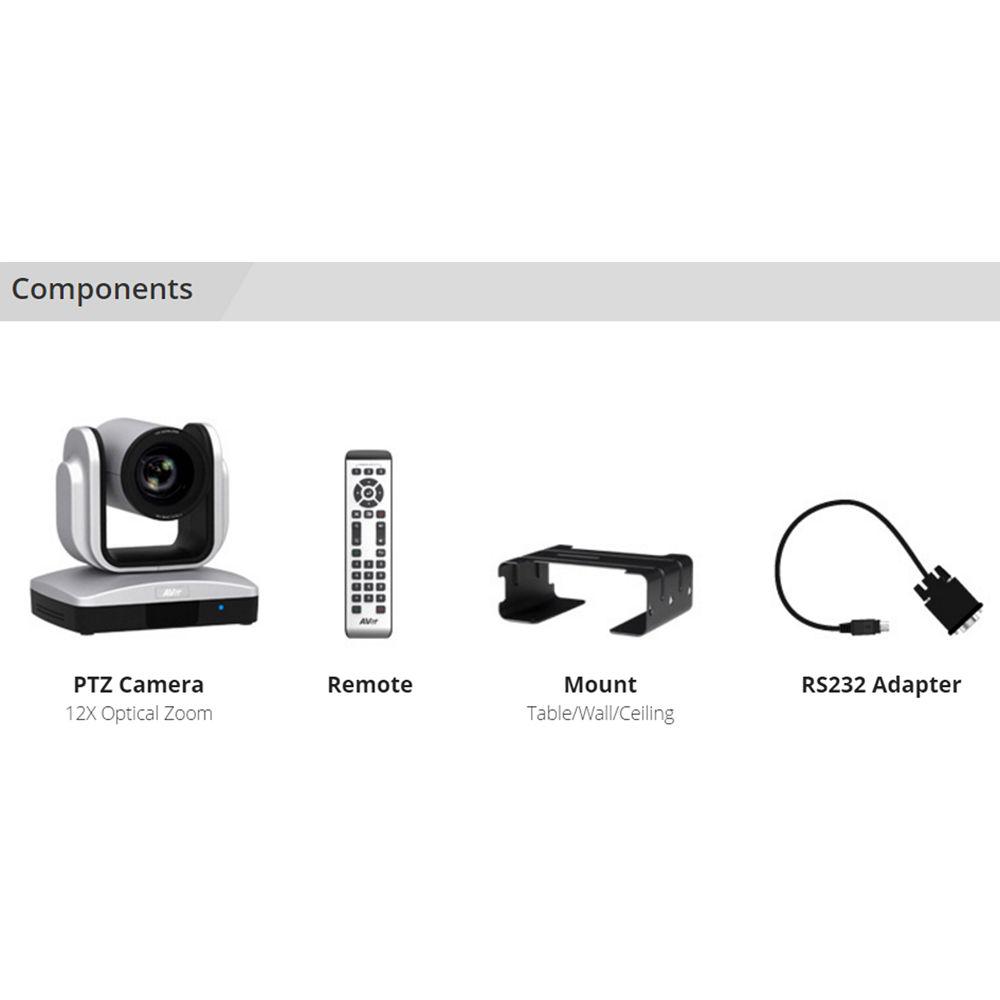

UPC: 848090004498 In the Box AVer CAM530 12x USB & HDMI PTZ Conference Camera Remote Control Power Adapter 16' USB Cable 9.8' HDMI Cable RS-232 Cable Metal Mount Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVer CAM530 12x USB & HDMI PTZ Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVer CAM530 Specs | Sensor | 1/2.8" progressive CMOS 2 MP | | Frame Rate | 1080p, 720p, 1024 x 576, 960 x 540, 848 x 480, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 | | Lens | 3.9 to 47.3mm
12x optical zoom | | F-Stop | f/1.8 (wide) to 2.8 (tele) | | White Balance | Auto; manual override by PTZapp using color temp | | Auto Focus System | Minimum Working Distance: 3.2' (1 m) | | Field of View | Horizontal 72° (wide) to 6.3° (tele) | | S/N Ratio | > 50 dB | | Minimum Illumination | 3.5 lux (50 IRE, f/1.8, shutter 1/30)
2D and 3D noise reduction
Backlight compensation
Flip, mirror | | Pan / Tilt | Pan:
